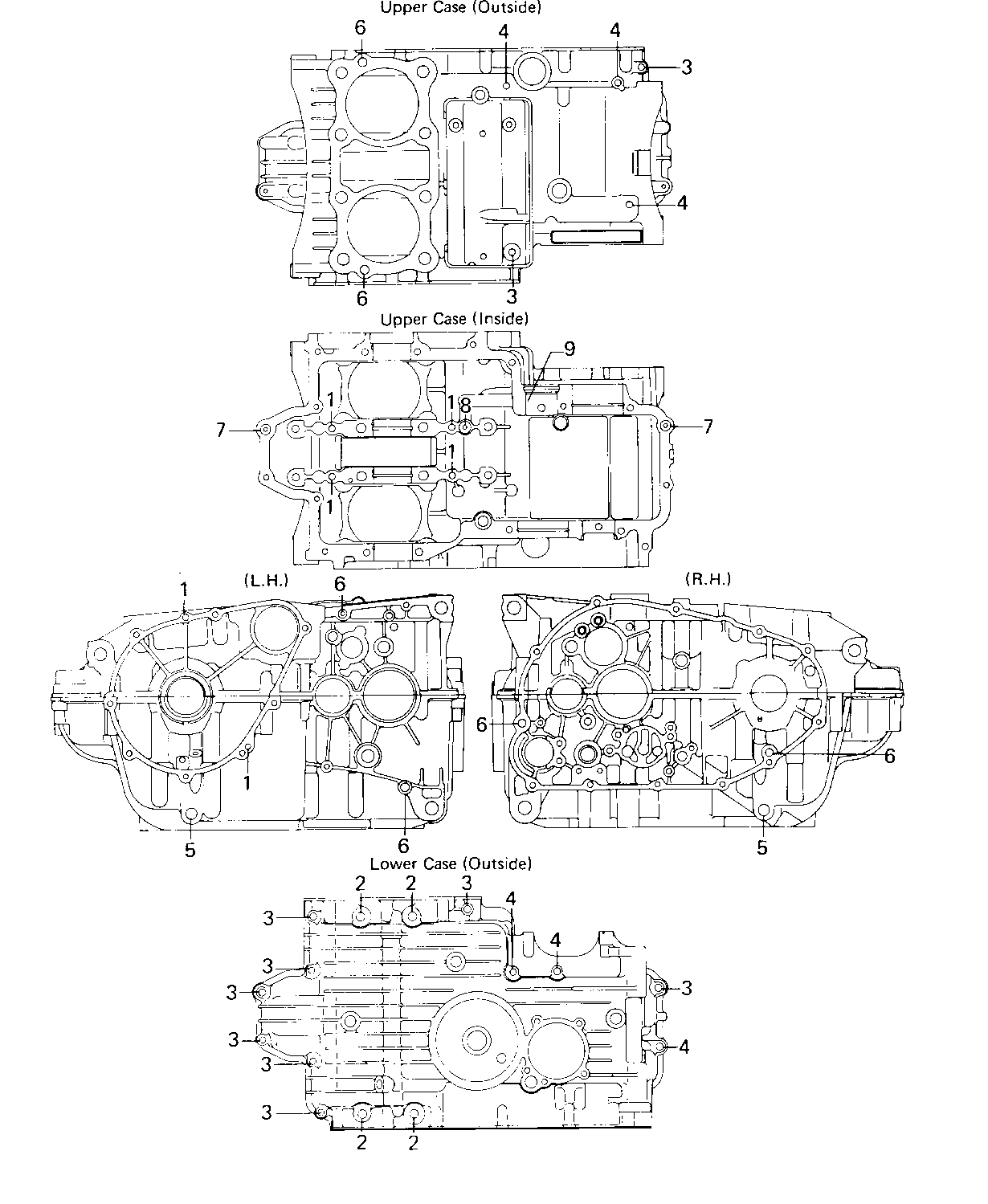

1980 LTD Belt - CRANKCASE BOLT & STUD PATTERN ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN,DOWEL,6X12 | 1 | 551A0612 | 6 | ||
| BOLT-FLANGED,8X95 | 2 | 130P0895 | 4 | ||
| BOLT,HEX HEAD,6X54 | 3 | 92003-110 | 4 | ASTERISK (*) MARKED PARTS ARE | |
| BOLT,HEX HEAD,6X54 | 3 | 92003-110 | 4 | ASTERISK (*) MARKED PARTS ARE | |
| BOLT,HEX HEAD,6X54 | 3 | 92003-110 | 8 | ||
| BOLT-FLANGED,6X95 | 4 | 130G0695 | 6 | ||
| SET SCREW,PT 1/4 | 5 | 92013-010 | 6 | ASTERISK (*) MARKED PARTS ARE | |
| SET SCREW,PT 1/4 | 5 | 92013-010 | 6 | ASTERISK (*) MARKED PARTS ARE | |
| PIN-DOWEL | 6 | 92042-007 | 6 | ||
| PIN,DOWEL,10X8.2X14 | 7 | 92043-1037 | 6 | ASTERISK (*) MARKED PARTS ARE | |
| PIN,DOWEL,10X8.2X14 | 7 | 92043-1037 | 6 | ASTERISK (*) MARKED PARTS ARE | |
| "O" RING | 8 | 92055-074 | 1 | ||
| NOZZLE,OIL BIAS | 9 | 92062-011 | 1 | ASTERISK (*) MARKED PARTS ARE | |
| NOZZLE,OIL BIAS | 9 | 92062-011 | 1 | ASTERISK (*) MARKED PARTS ARE |
| PIN,DOWEL,6X12 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X95 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X54 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | ASTERISK (*) MARKED PARTS ARE |
| BOLT,HEX HEAD,6X54 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | ASTERISK (*) MARKED PARTS ARE |
| BOLT,HEX HEAD,6X54 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X95 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SET SCREW,PT 1/4 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | ASTERISK (*) MARKED PARTS ARE |
| SET SCREW,PT 1/4 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | ASTERISK (*) MARKED PARTS ARE |
| PIN-DOWEL | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | ASTERISK (*) MARKED PARTS ARE |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | ASTERISK (*) MARKED PARTS ARE |
| "O" RING | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE,OIL BIAS | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ASTERISK (*) MARKED PARTS ARE |
| NOZZLE,OIL BIAS | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ASTERISK (*) MARKED PARTS ARE |
