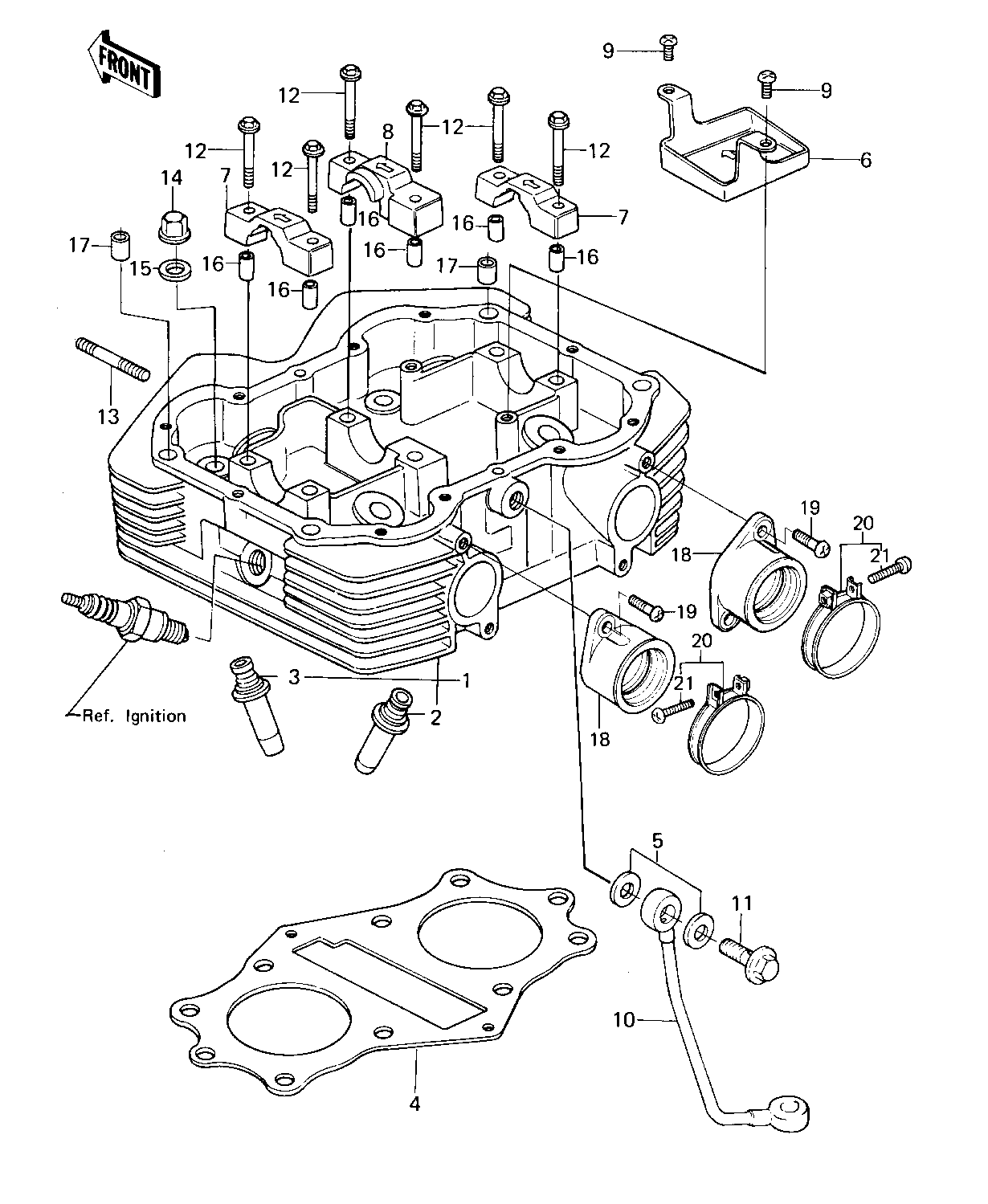

1980 LTD Belt - CYLINDER HEAD ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HEAD-COMP-CYLINDER,SI | 1 | 11008-1034 | 1 | ||
| GUIDE,INLET VALVE | 2 | 12013-003 | 2 | ||
| GUIDE,EXHAUST VALVE | 3 | 49002-1010 | 2 | ||
| GASKET,CYLINDER HEAD | 4 | 11004-1020 | 1 | ||
| GASKET,10X14.5X1.5 | 5 | 11009-1105 | 2 | ||
| CAP,CYLINDER HEAD OIL | 6 | 11012-1027 | 1 | ||
| CAP,BRG,HEAD,L.H&R.H | 7 | 14022-1002 | 2 | ||
| CAP,BRG.HEAD,CENTER | 8 | 14022-1003 | 1 | ||
| SCREW PAN HEAD 6X10 | 9 | 220B0610 | 2 | ||
| PIPE,OIL | 10 | 32032-1084 | 1 | ||
| BOLT,BANJO,10X25 | 11 | 92001-1017 | 1 | ||
| BOLT,FLANGED,6X38 | 12 | 92001-1105 | 6 | ||
| STUD,6X46 | 13 | 92004-049 | 4 | ||
| NUT,CYLINDER HEAD | 14 | 92015-076 | 8 | ||
| WASHER,10.5X22X1.6 | 15 | 92022-1005 | 8 | ||
| PIN-DOWEL | 16 | 92042-007 | 6 | ||
| PIN,DOWEL,10X8.2X14 | 17 | 92043-1037 | 2 | ||
| HOLDER,CARBURETOR | 18 | 16065-1027 | 2 | ||
| SCREW PAN HEAD 6X18 | 19 | 220B0618 | 4 | ||
| CLAMP,53M/M | 20 | 92037-201 | 2 | ||
| SCREW-PAN-CROS,5X25 | 21 | 220B0525 | 2 |
| HEAD-COMP-CYLINDER,SI | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,INLET VALVE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUIDE,EXHAUST VALVE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER HEAD | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,10X14.5X1.5 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP,CYLINDER HEAD OIL | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,BRG,HEAD,L.H&R.H | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP,BRG.HEAD,CENTER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X10 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIPE,OIL | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,BANJO,10X25 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X38 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| STUD,6X46 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,CYLINDER HEAD | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X22X1.6 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CARBURETOR | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X18 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,53M/M | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,5X25 | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
