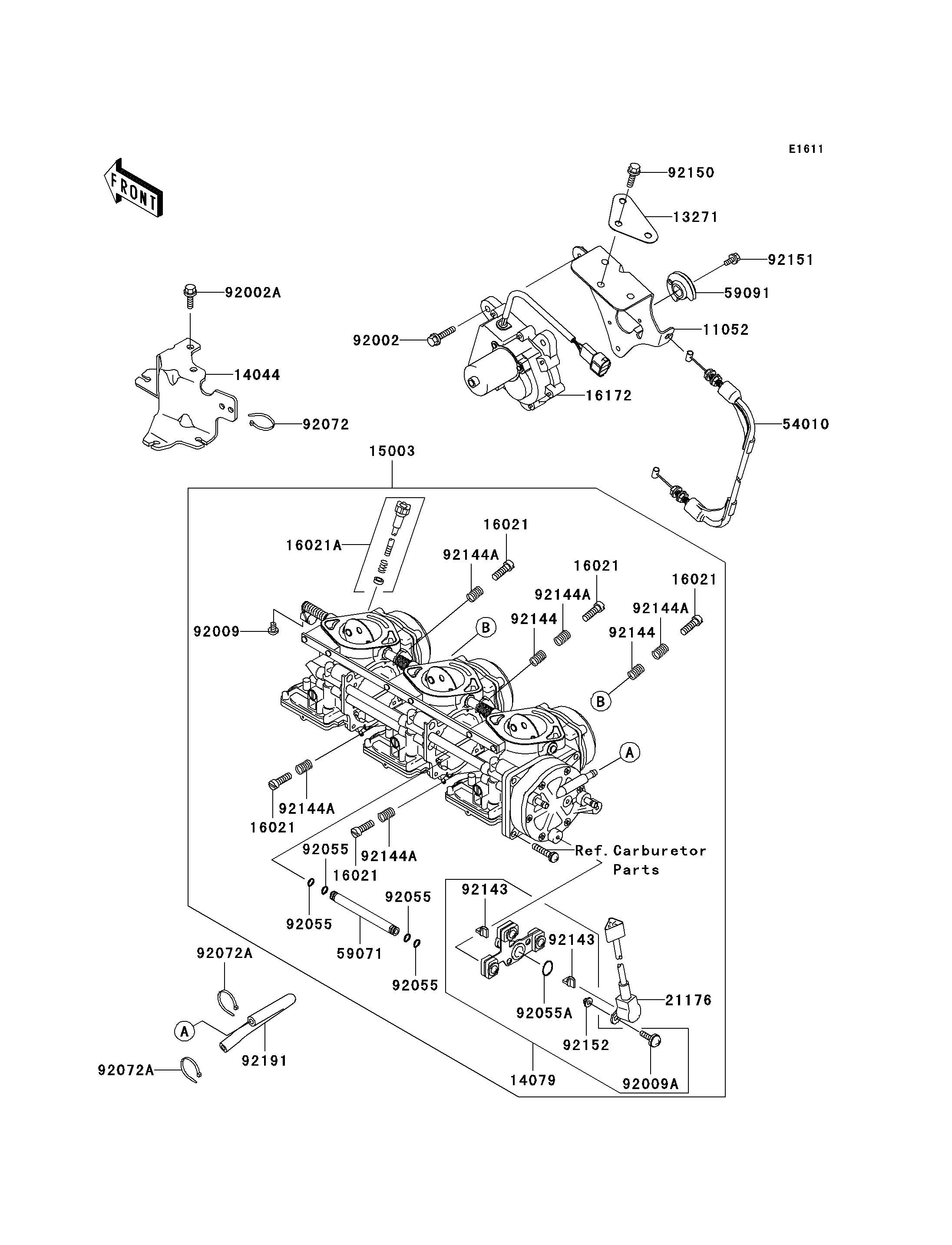

2005 Ultra 150 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11052
13271
14044
14079
15003
16021
16021
16021
16021
16021
16021A
16172
21176
54010
59071
59091
92002
92002A
92009
92009A
92055
92055
92055
92055
92055A
92072
92072A
92072A
92143
92143
92144
92144
92144A
92144A
92144A
92144A
92144A
92150
92151
92152
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11052 11052-3771 1
PLATE 13271 13271-3846 1
HOLDER-CABLE,CARBURETOR 14044 14044-3744 1
HOLDER-ASSY,SENSOR 14079 14079-3722 1
CARBURETOR-ASSY 15003 15003-3740 1
SCREW-THROTTLE STOP 16021 16021-3704 5
SCREW-THROTTLE STOP 16021A 16021-3709 1
ACTUATOR 16172 16172-3703 1
SENSOR 21176 21176-3739 1
CABLE 54010 54010-3715 1
JOINT 59071 59071-3766 4
PULLEY 59091 59091-3708 1
BOLT,6X25 92002 92002-3714 3
BOLT,6X16 92002A 92002-3728 2
SCREW,4X6 92009 92009-3786 1
SCREW,SENSOR 92009A 92009-3863 2
RING-O 92055 92055-1246 16
RING-O,SENSOR 92055A 92055-1574 1
BAND 92072 92072-3848 1
BAND 92072A 92072-3874 2
COLLAR 92143 92143-1907 2
SPRING,ADJUST SCREW 92144 92144-3704 2
SPRING,THROTTLE STOP SCREW 92144A 92144-3745 5
BOLT,6X18 92150 92150-3729 3
BOLT,5X10 92151 92151-3749 1
COLLAR,SENSOR 92152 92152-3721 2
TUBE,PULSE 92191 92191-3838 1
