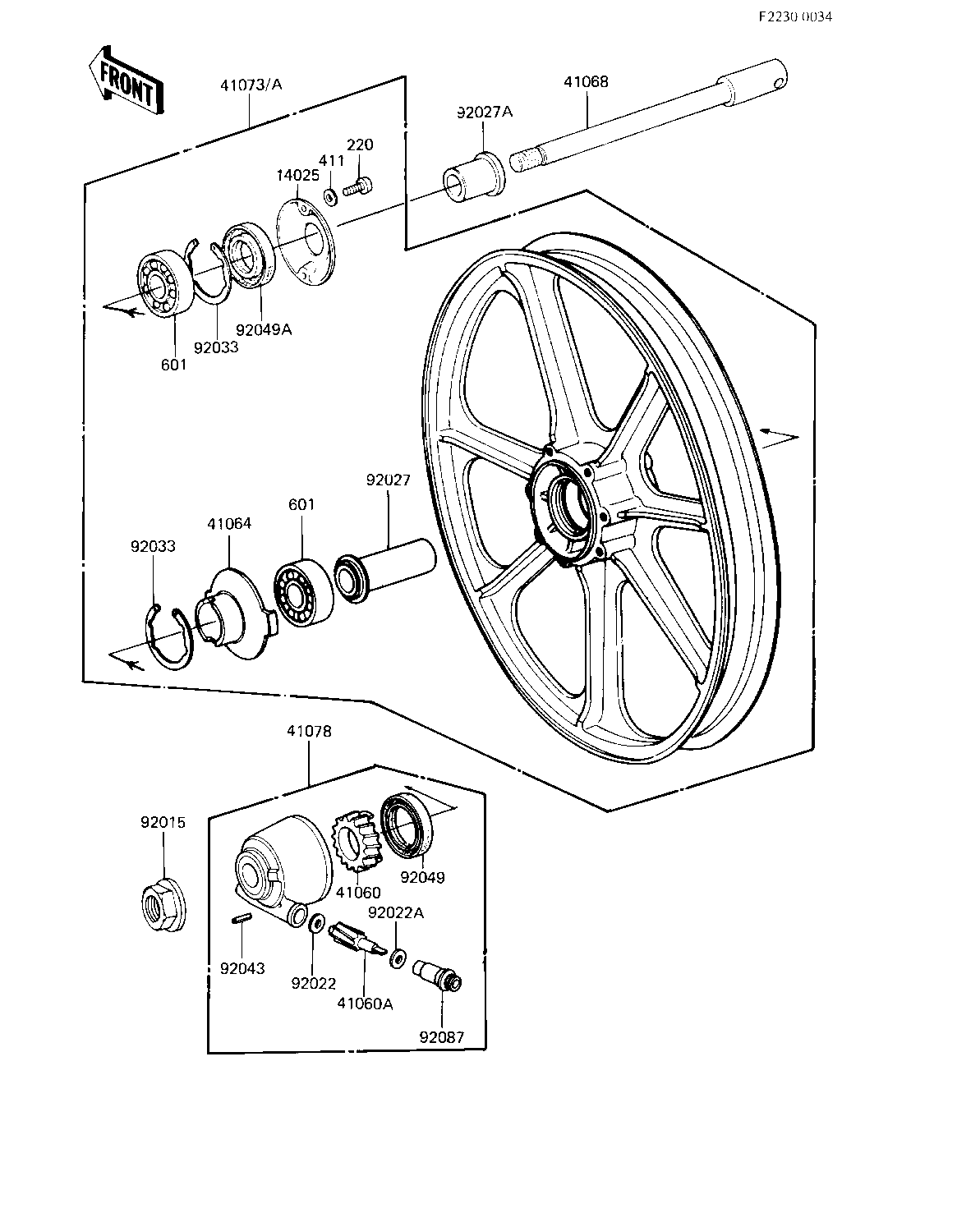

1983 LTD - FRONT WHEELS/HUB ('82-'83 C3/C4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GEAR,SPEEDOMETER | 41060 | 41059-026 | 1 | ||
| AXLE,FRONT,L=204M/M | 41060A | 41068-1009 | 1 | ||
| RECEIVER,SPEEDOMETER | 41064 | 41064-1006 | 1 | ||
| AXLE,FRONT,L=204M/M | 41068 | 41068-1009 | 1 | ||
| WHEEL-ASSY,FR,F.BLACK | 41073 | 41073-1080-21 | 1 | ||
| WHEEL-ASSY,FR,F.BLACK | 41073A | 41073-1080-21 | 1 | ||
| GEAR BOX ASSY, | 41078 | 41078-1013 | 1 | ||
| NUT,14MM | 92015 | 92015-1407 | 1 | ||
| WASHER THRST SPD PINI | 92022 | 41063-001 | 1 | ||
| WASHER THRST SPD PINI | 92022A | 41063-001 | 1 | ||
| COLLAR,FR HUB L=55M/M | 92027 | 92027-1223 | 1 | ||
| COLLAR,FR AXLE L=30MM | 92027A | 92027-1225 | 1 | ||
| CIRCLIP,42MM | 92033 | 92033-1041 | 2 | ||
| PIN,SPRING | 92043 | 41082-001 | 1 | ||
| OIL SEAL,AG1144AO | 92049A | 92049-1058 | 1 | ||
| BUSHING,METER GEAR | 92087 | 92087-1002 | 1 | ||
| BEARING,BALL, # 6302ZC3 | 601 | 601B6302Z | 2 |
