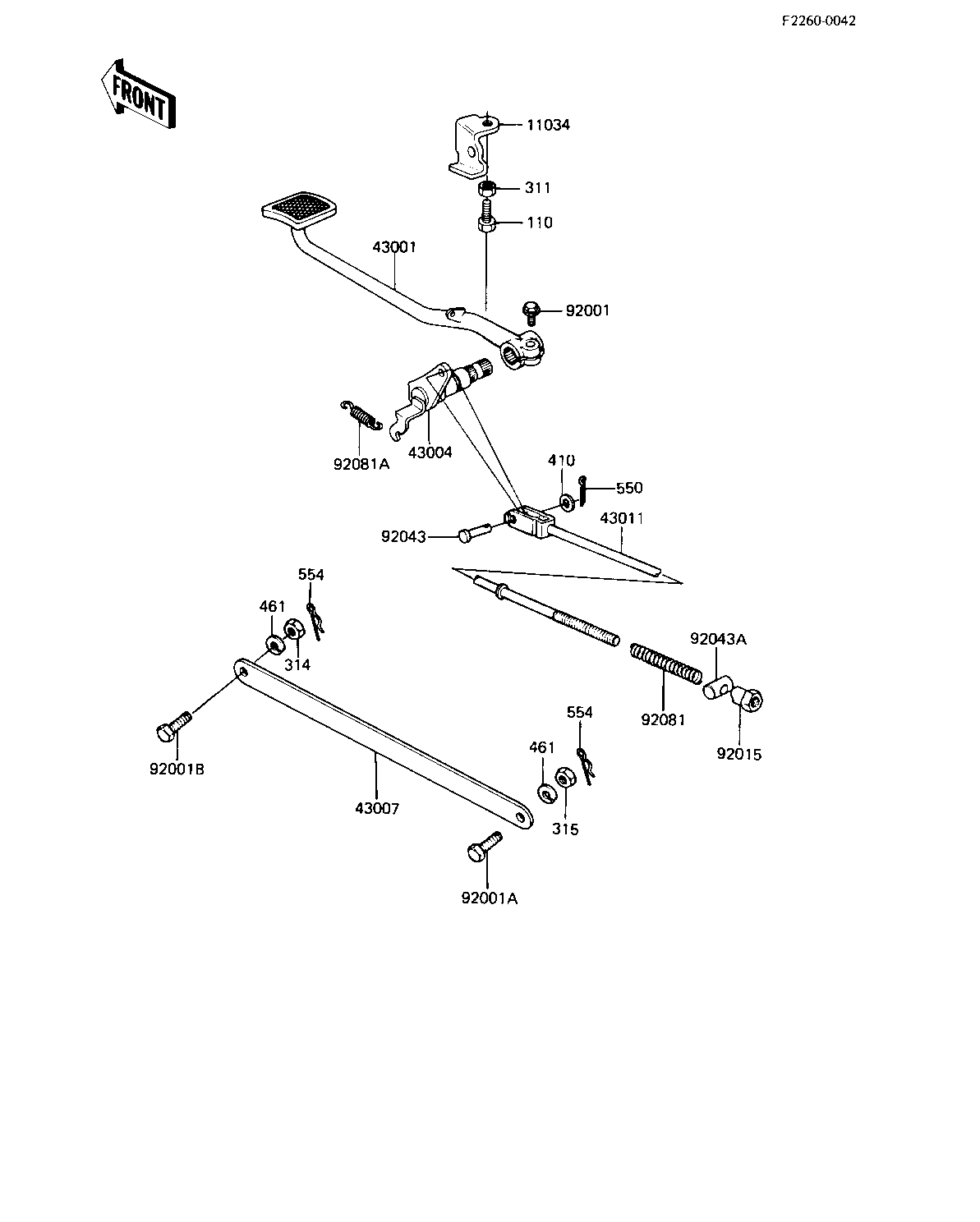

1983 LTD - BRAKE PEDAL/TORQUE LINK ('82-'83 C3/C4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,BRAKE PEDAL | 11034 | 11034-1824 | 1 | ||
| PEDAL,BRAKE | 43001 | 43001-1048 | 1 | ||
| SHAFT,BRAKE | 43004 | 43004-1013 | 1 | ||
| ROD-TORQUE | 43007 | 43007-1028 | 1 | ||
| ROD,BRAKE | 43011 | 43011-1014 | 1 | ||
| BOLT-FLANGED,8X25 | 92001 | 130G0825 | 1 | ||
| BOLT HEX HEAD 10MM | 92001A | 92003-034 | 1 | ||
| BOLT | 92001B | 92003-096 | 1 | ||
| NUT-BRAKE ROD ADJUST | 92015 | 92015-042 | 1 | ||
| PIN-BRAKE ROD FITTING | 92043 | 92043-064 | 1 | ||
| PIN-BRAKE ROD | 92043A | 92043-065 | 1 | ||
| SPRING,BRAKE ROD | 92081 | 43012-001 | 1 | ||
| SPRING,BRAKE PEDAL | 92081A | 92081-1147 | 1 | ||
| BOLT-UPSET,6X20 | 110 | 112G0620 | 1 | ||
| NUT 6MM | 311 | 311B0600 | 1 | ||
| NUT,10MM | 314 | 314B1000 | 1 | ||
| NUT 10MM | 315 | 315B1000 | 1 | ||
| WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
| WASHER SPRING 10MM | 461 | 461F1000 | 2 | ||
| PIN COTTER 2.0X15 | 550 | 550D2015 | 1 | ||
| PIN,SNAP | 554 | 554A0800 | 2 |
| BRACKET,BRAKE PEDAL | |
| REF # | 11034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL,BRAKE | |
| REF # | 43001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,BRAKE | |
| REF # | 43004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-TORQUE | |
| REF # | 43007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,BRAKE | |
| REF # | 43011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X25 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT HEX HEAD 10MM | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-BRAKE ROD ADJUST | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-BRAKE ROD FITTING | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-BRAKE ROD | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE ROD | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE PEDAL | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X20 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 314 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 315 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 2.0X15 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,SNAP | |
| REF # | 554 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
