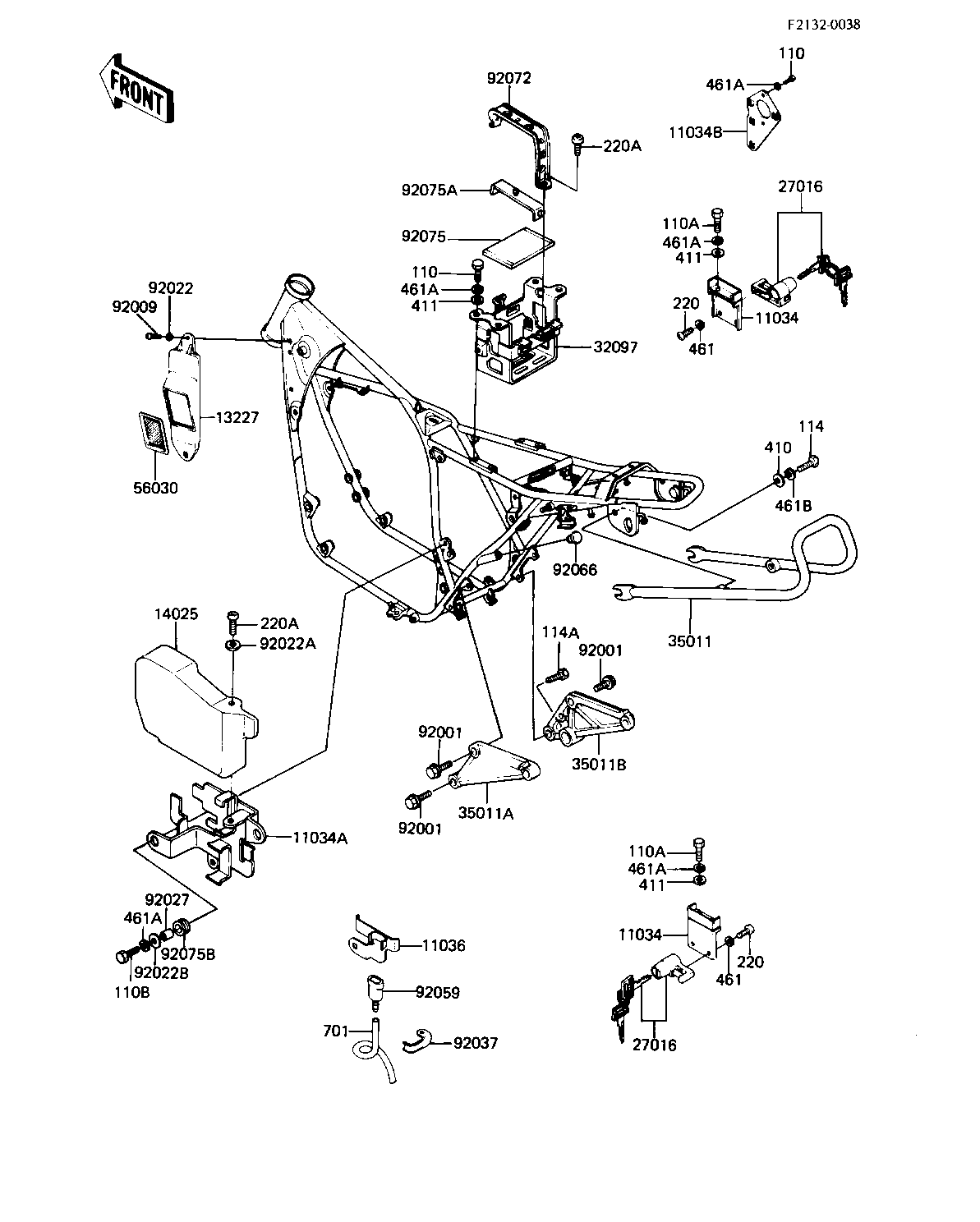

1983 LTD - BATTERY CASE/ELECTRO BRACKET ('82-'83 C3

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HELMET LOCK 11034 11034-1926 2
BRACKET,ELECTRO BASE 11034A 11034-1975 1
BRACKET,CDI UNIT 11034B 11034-1985 1
BRACKET,BATTERY 11036 11036-1470 1
HOUSING,LABEL 13227 13227-1001 2
COVER,ELECTRO 14025 14025-1295 1
LOCK ASSY,HELMET 27016 27016-5038 2
CASE-BATTERY 32097 32097-1046 1
STAY,REAR 35011 35011-1050 1
STAY,MUFFLER,LH 35011A 35011-1076 1
STAY,MUFFLER,RH 35011B 35011-1077 1
LABEL 56030 56030-1006 2
BOLT,8X28 92001 92001-1095 3
SCREW,5X16,BLACK 92009 92009-1099 4
WASHER,5.2X16X16X1.2T 92022 25009-004 4
WASHER PLAIN 92022A 92022-024 2
WASHER 6.5X20X1.6T 92022B 92022-125 2
COLLAR 92027 92027-165 2
CLAMP,BREATHER TUBE 92037 92037-1246 1
CONNECTOR PIPE 92059 92059-101 1
PLUG,9.5X8 92066 92066-1077 1
BAND,BATTERY 92072 92072-1019 1
DAMPER,BATTERY BASE 92075 92075-1076 1
DAMPER,BATTERY BAND 92075A 92075-1113 1
DAMPER RUBBER 92075B 92075-149 2
BOLT-UPSET,6X12 110 112G0612 6
BOLT-UPSET 6X14 110A 112B0614 4
BOLT-UPSET,6X20 110B 112G0620 2
BOLT-SMALL-UPSET,8X18 114 115G0818 2
BOLT-HEX HEAD 8X30 114A 114G0830 1
SCREW PAN HEAD 5X8 220 220B0508 4
SCREW PAN HEAD 6X12 220A 220B0612 3
WASHER PLAIN 8MM 410 410B0800 2
WASHER PLAIN 6MM 411 411B0600 8
WASHER SPRING 5MM 461 461F0500 4
WASHER SPRING 6MM 461A 461F0600 12
WASHER SPRING 8MM 461B 461F0800 2
TUBE-PVC,6X530 701 701Q06530 1
