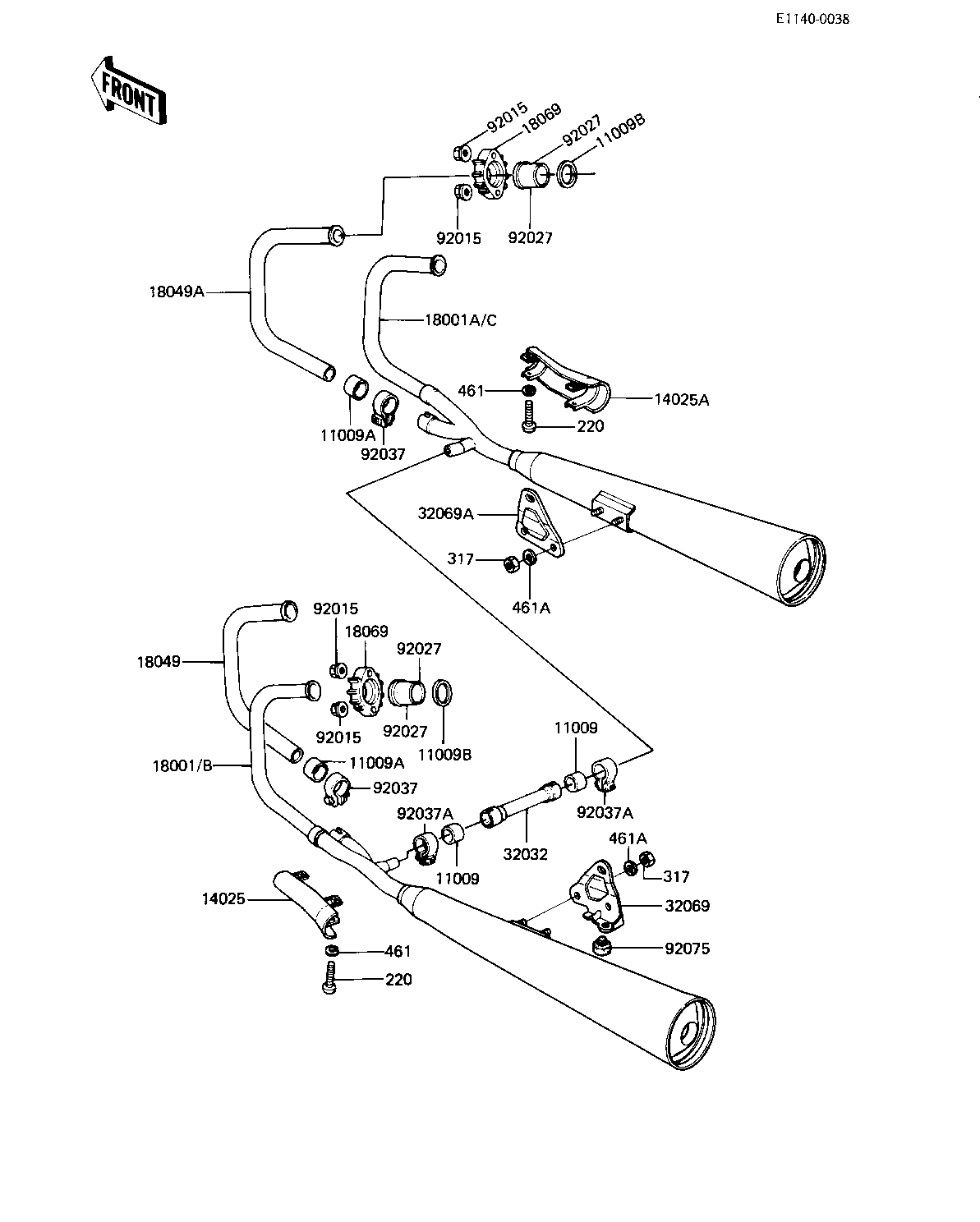

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,MUFFLER CONNEC | 11009 | 11060-1051 | 2 | ||
| GASKET,EXHAUST PIPE C | 11009A | 11009-1667 | 2 | ||
| GASKET,EXHAUST PIPE H | 11009B | 11009-1866 | 4 | ||
| COVER,MUFFLER,LH | 14025 | 14025-1531 | 1 | ||
| COVER,MUFFLER,RH | 14025A | 14025-1532 | 1 | ||
| MUFFLER,LH | 18001B | 18001-1305 | 1 | ||
| MUFFLER,RH | 18001C | 18001-1306 | 1 | ||
| PIPE-EXHAUST,#2 | 18049 | 18049-1154 | 1 | ||
| PIPE-EXHAUST,#3 | 18049A | 18049-1155 | 1 | ||
| HOLDER,EXHAUST PIPE | 18069 | 18069-1006 | 4 | ||
| PIPE,MUFFLER CONNECT1 | 32032 | 32032-1671 | 1 | ||
| BRACKET,MUFFLER,L.H. | 32069 | 32069-1064 | 1 | ||
| BRACKET,MUFFLER,R.H. | 32069A | 32069-1065 | 1 | ||
| NUT-6MM | 92015 | 92015-1078 | 8 | ||
| COLLAR,EXHAUST PIPE | 92027 | 92027-264 | 8 | ||
| CLAMP,42MM | 92037 | 92037-1349 | 2 | ||
| CLAMP,MUFFLER,37MM | 92037A | 92037-1243 | 2 | ||
| DAMPER RUBBER,MAIN ST | 92075 | 92075-1002 | 1 | ||
| SCREW PAN HEAD 6X40 | 220 | 220B0640 | 4 | ||
| NUT,8M/M | 317 | 317B0800 | 4 | ||
| WASHER SPRING 6MM | 461 | 461F0600 | 4 | ||
| WASHER SPRING 8MM | 461A | 461F0800 | 4 |
