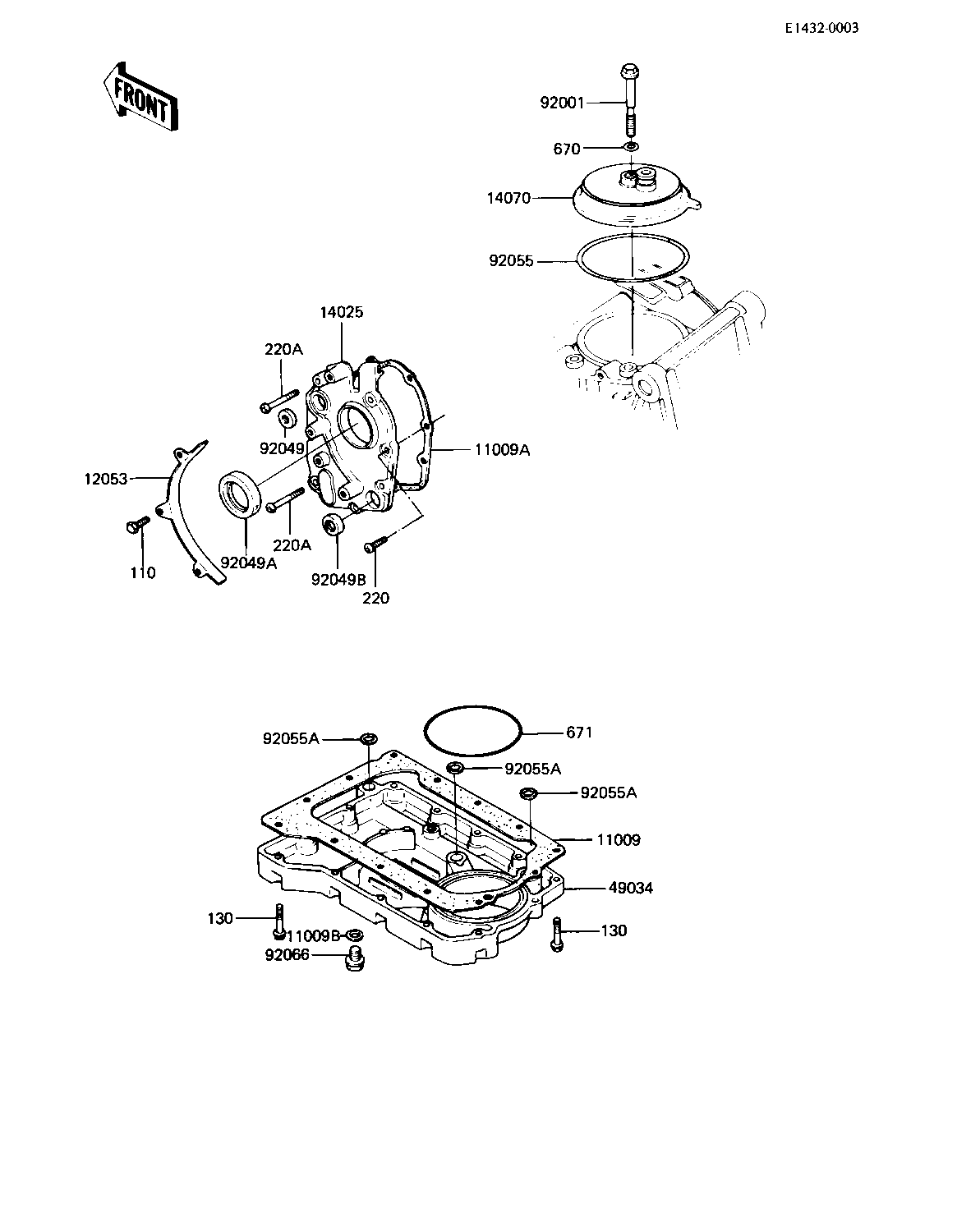

1983 LTD - BREATHER COVER/OIL PAN ('82-'83 C3/C4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,OIL PAN | 11009 | 11060-1057 | 1 | ||
| GASKET,TRANSMISSION C | 11009A | 11060-1056 | 1 | ||
| GASKET,DRIN PLUG | 11009B | 92065-097 | 1 | ||
| GUIDE,CHAIN | 12053 | 12053-1006 | 1 | ||
| COVER,MISSION | 14025 | 14025-1486 | 1 | ||
| BODY-BREATHER | 14070 | 14070-1008 | 1 | ||
| PAN,OIL | 49034 | 49034-1002 | 1 | ||
| BOLT,HEX HEAD,8X72 | 92001 | 92003-107 | 1 | ||
| OIL SEAL,SD-8187 | 92049 | 92049-1017 | 1 | ||
| OIL SEAL SC325210 | 92049A | 92050-024 | 1 | ||
| OIL SEAL,TB13225.5 | 92049B | 92051-005 | 1 | ||
| "O" RING,91MM | 92055 | 92055-052 | 1 | ||
| "O" RING | 92055A | 92055-077 | 3 | ||
| PLUG,OIL DRAIN,12X15 | 92066 | 92066-1174 | 1 | ||
| BOLT-UPSET 6X14 | 110 | 112B0614 | 3 | ||
| BOLT,FLANGED,6X25 | 130 | 130G0625 | 13 | ||
| SCREW PAN HEAD 6X20 | 220 | 220B0620 | 5 | ||
| SCREW PAN HEAD 6X40 | 220A | 220B0640 | 2 | ||
| "O" RING,8MM | 670 | 670B1508 | 1 | ||
| "0" RING,90MM | 671 | 671B2590 | 1 |
| GASKET,OIL PAN | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,TRANSMISSION C | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,DRIN PLUG | |
| REF # | 11009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,CHAIN | |
| REF # | 12053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,MISSION | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-BREATHER | |
| REF # | 14070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAN,OIL | |
| REF # | 49034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,8X72 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,SD-8187 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL SC325210 | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,TB13225.5 | |
| REF # | 92049B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,91MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PLUG,OIL DRAIN,12X15 | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET 6X14 | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 13 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X20 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X40 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "O" RING,8MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,90MM | |
| REF # | 671 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
