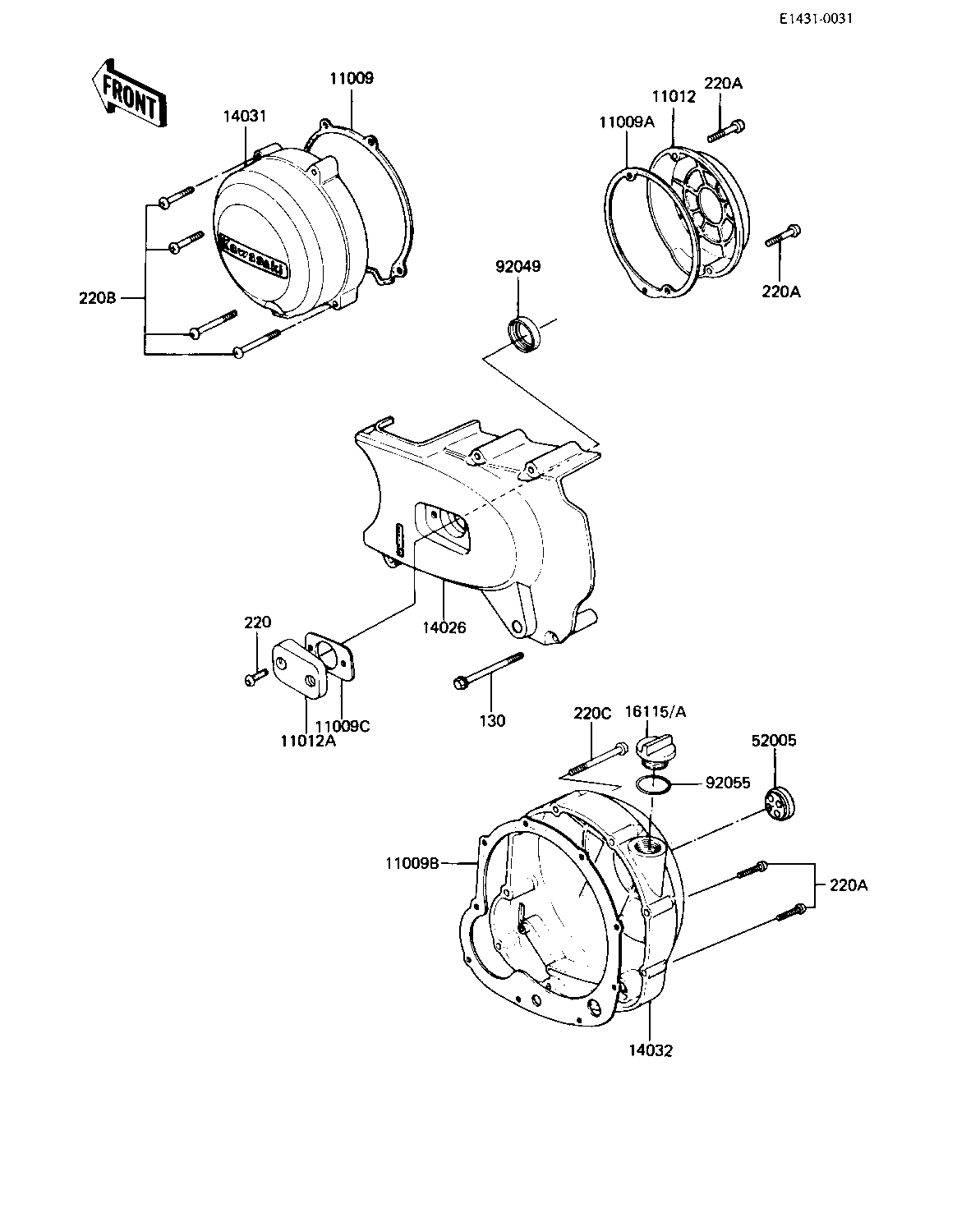

1983 LTD - ENGINE COVERS ('82-'83 C3/C4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,GENERATOR COVE | 11009 | 11060-1055 | 1 | ||
| GASKET,PULSING COIL C | 11009A | 11060-1053 | 1 | ||
| GASKET,CLUTCH COVER | 11009B | 11060-1054 | 1 | ||
| GASKET,CLUTCH ADJ CAP | 11009C | 14049-004 | 1 | ||
| CAP,CONTACT BREAKER | 11012 | 11012-1098 | 1 | ||
| COVER,CLUTCH ADJUSTNG | 11012A | 14028-006-80 | 1 | ||
| COVER,CHAIN | 14026 | 14026-1047 | 1 | ||
| COVER,GENERATOR,BUFF | 14031 | 14031-1014 | 1 | ||
| COVER,CLUTCH,BUFF | 14032 | 14032-5004 | 1 | ||
| CAP-OIL FILLER | 16115A | 16115-1009 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| OIL SEAL,CLUTCH RELES | 92049 | 92049-1003 | 1 | ||
| "0" RING,31MM | 92055 | 92055-049 | 1 | ||
| BOLT-FLANGED,6X70 | 110 | 130G0670 | 4 | ||
| SCREW PAN HEAD 6X18 | 220 | 220B0618 | 2 | ||
| SCREW PAN HEAD 6X30 | 220A | 220B0630 | 9 | ||
| SCREW PAN HEAD 6X40 | 220B | 220B0640 | 4 | ||
| SCREW PAN HEAD 6X60 | 220C | 220B0660 | 2 |
