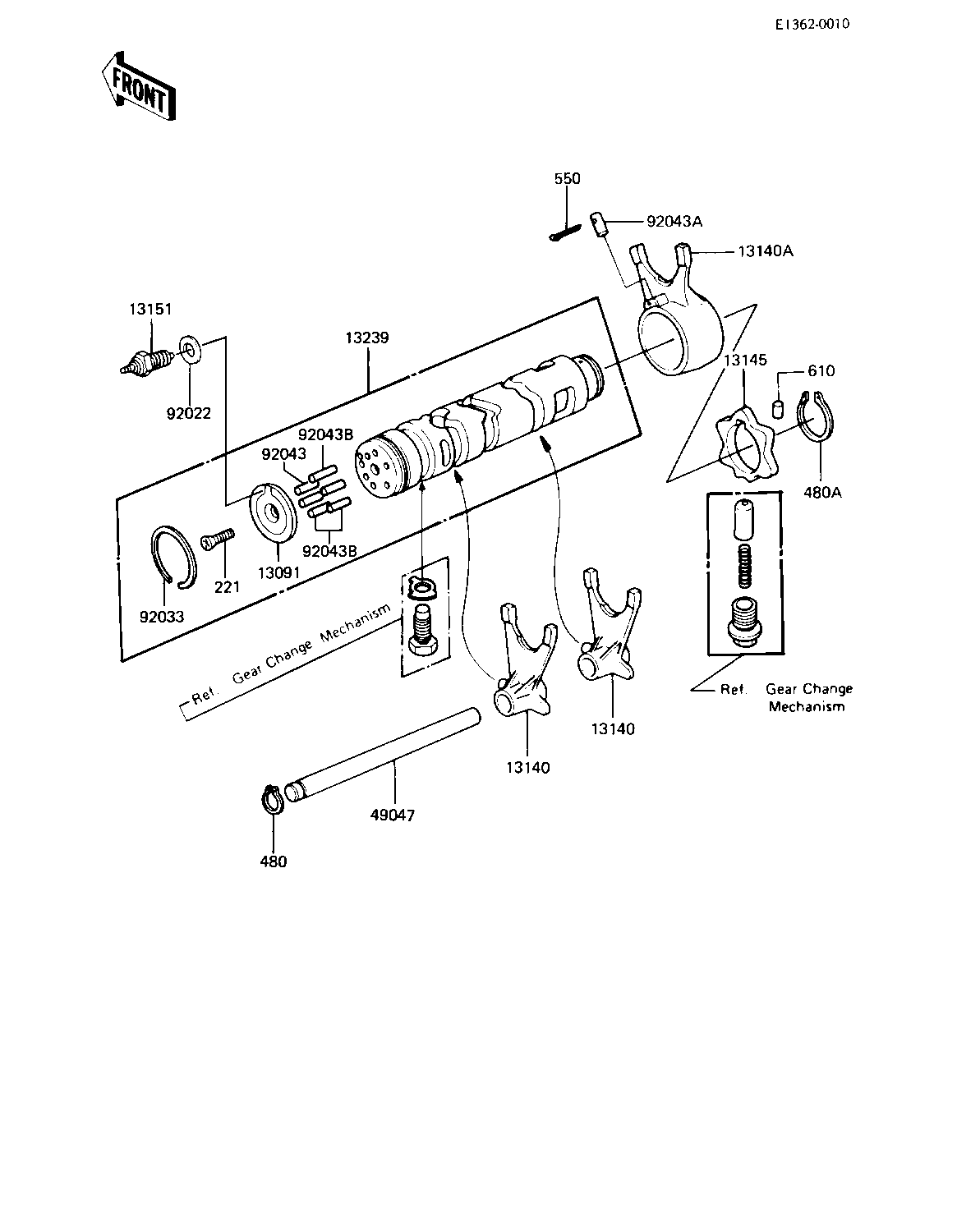

1983 LTD - GEAR CHANGE DRUM & FORKS ('82-'83 C3/C4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,CHANGE DRUM PI | 13091 | 13091-1104 | 1 | ||
| FORK-SHIFT,OUTPUT | 13140 | 13140-1062 | 2 | ||
| SHIFT FORK,GEAR SHIFT | 13140A | 13140-1016 | 1 | ||
| CAM-CHANGE DRUM | 13145 | 13145-1058 | 1 | ||
| SWITCH,NEUTRAL | 13151 | 13151-1007 | 1 | ||
| DRUM-ASSY-CHANGE | 13239 | 13239-1119 | 1 | ||
| ROD-SHIFT | 49047 | 49047-5003 | 1 | ||
| GASKET CHECK VALVE | 92022 | 92065-058 | 1 | ||
| CIRCLIP,37MM | 92033 | 92033-035 | 1 | ||
| PIN GEAR CHANGE DRUM | 92043 | 92042-014 | 1 | ||
| DOWEL PIN,8X18 | 92043A | 92042-021 | 1 | ||
| PIN,GEAR CHNGE DRUM | 92043B | 92042-030 | 5 | ||
| SCREW CNTSNK HD 6X20 | 221 | 221B0620 | 1 | ||
| CIRCLIP 12MM | 480 | 480J1200 | 1 | ||
| CIRCLIP,30MM | 480A | 480J3000 | 1 | ||
| PIN COTTER 3.0X20 | 550 | 550D3020 | 1 | ||
| PIN-DOWEL,4X6 | 610 | 610A0406 | 1 |
