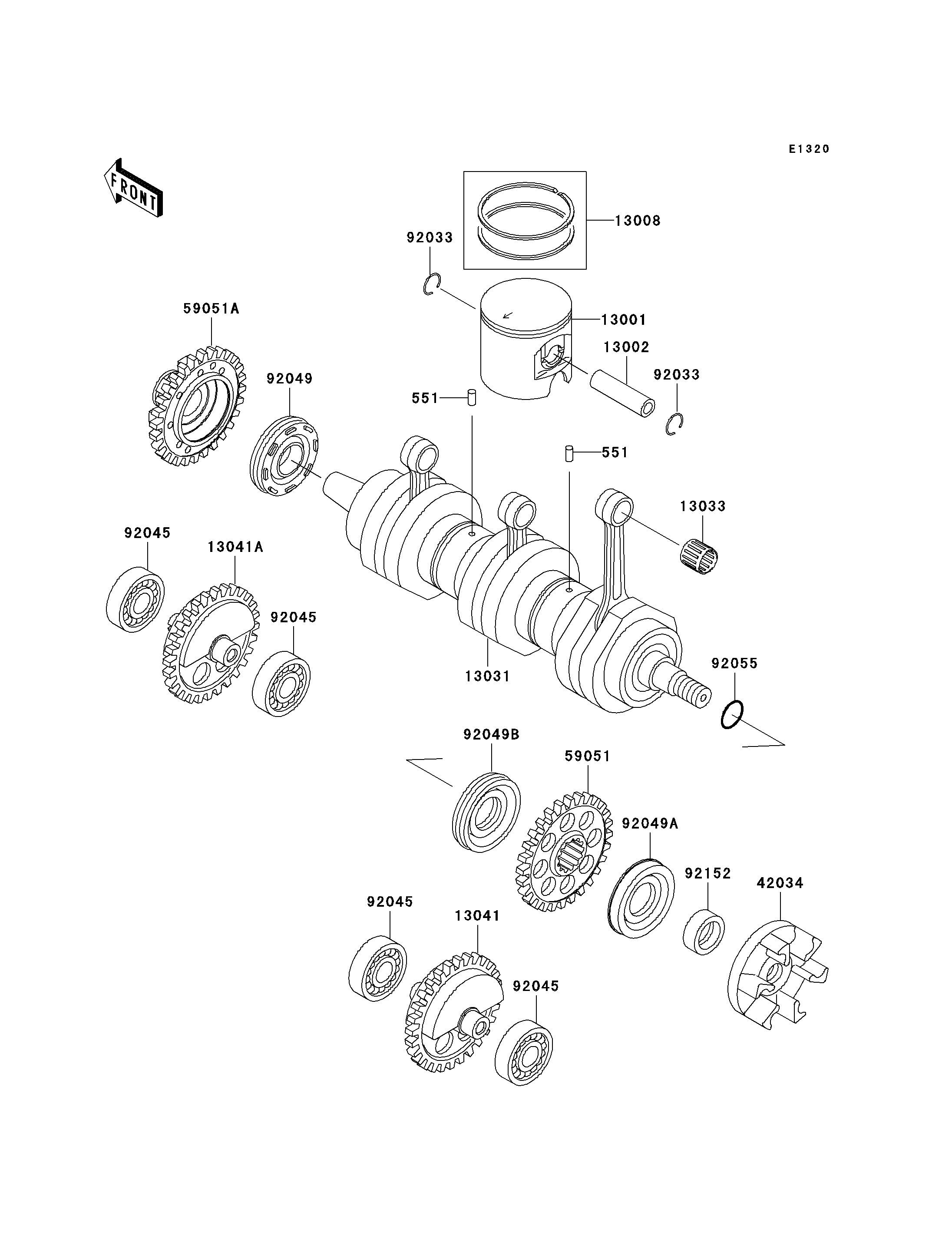

Parts Diagrams |
551
551
13001
13002
13008
13031
13033
13041
13041A
42034
59051
59051A
92033
92033
92045
92045
92045
92045
92049
92049A
92049B
92055
92152
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PIN-DOWEL | 551 | 551R0612 | 2 | ||
| PISTON-ENGINE | 13001 | 13001-3731 | 3 | ||
| PIN-PISTON | 13002 | 13002-3707 | 3 | ||
| RING-SET-PISTON,STD | 13008 | 13008-3708 | 3 | ||
| CRANKSHAFT-COMP | 13031 | 13031-3738 | 1 | ||
| BEARING-SMALL END | 13033 | 13033-3704 | 3 | ||
| BALANCER,RR | 13041 | 13041-3702 | 1 | ||
| BALANCER,FR | 13041A | 13041-3703 | 1 | ||
| COUPLING | 42034 | 42034-3711 | 1 | ||
| GEAR-SPUR | 59051 | 59051-3704 | 1 | ||
| GEAR-SPUR,FR | 59051A | 59051-3705 | 1 | ||
| RING-SNAP | 92033 | 92033-3729 | 6 | ||
| BEARING-BALL,TMB204C4 | 92045 | 92045-3728 | 4 | ||
| SEAL-OIL,FW7357210ZS | 92049 | 92049-3725 | 1 | ||
| SEAL-OIL,FWJ7358069ZS | 92049A | 92049-3728 | 1 | ||
| SEAL-OIL | 92049B | 92049-3730 | 1 | ||
| RING-O,20.8X2.4 | 92055 | 92055-3740 | 1 | ||
| COLLAR,CRANKSHAFT,RR | 92152 | 92152-3701 | 1 |
| PIN-DOWEL | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE | |
| REF # | 13001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 13002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON,STD | |
| REF # | 13008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-SMALL END | |
| REF # | 13033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BALANCER,RR | |
| REF # | 13041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALANCER,FR | |
| REF # | 13041A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING | |
| REF # | 42034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,FR | |
| REF # | 59051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,TMB204C4 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,FW7357210ZS | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,FWJ7358069ZS | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,20.8X2.4 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,CRANKSHAFT,RR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
