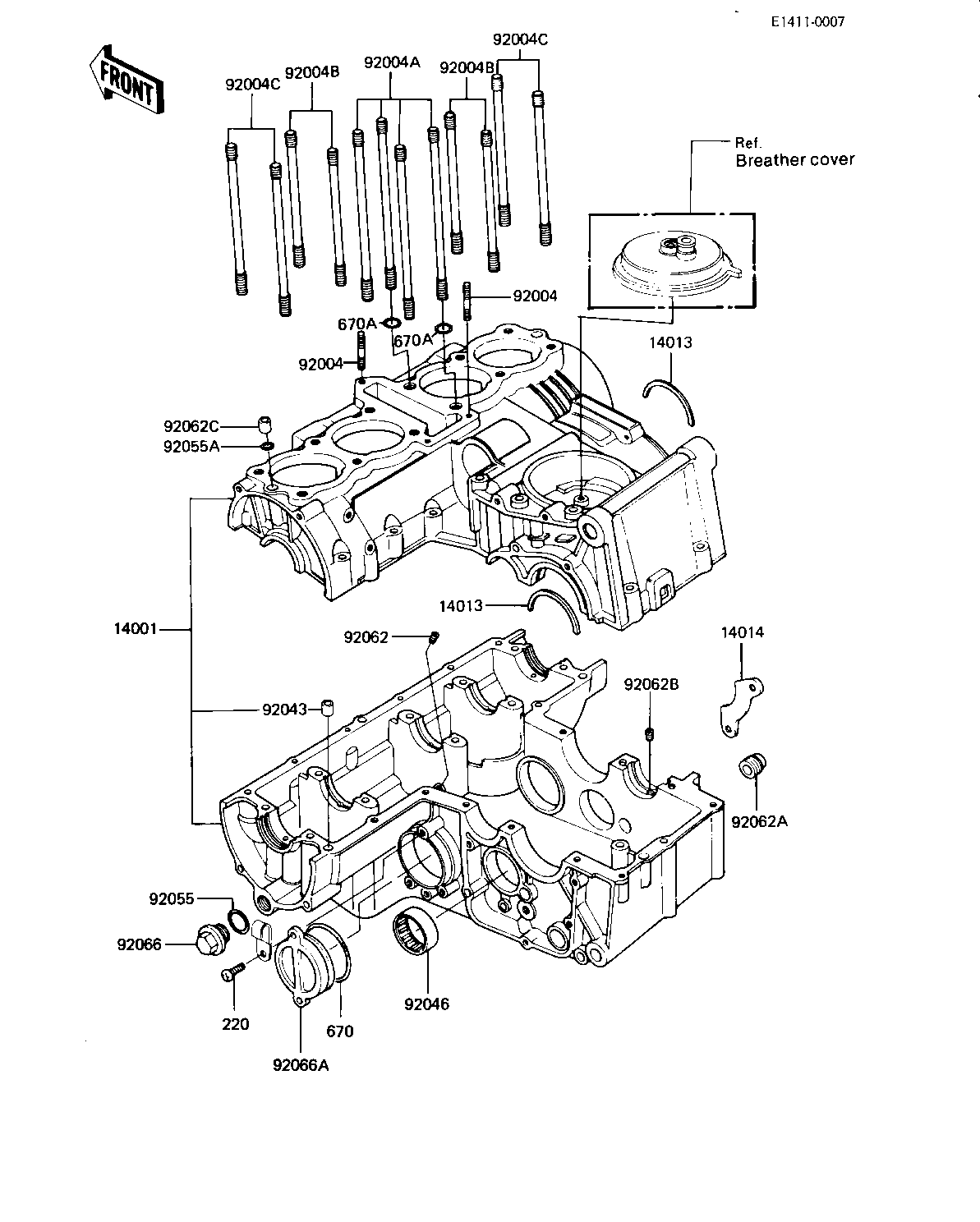

1983 LTD - CRANKCASE ('82-'83 C3/C4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SET-CRANKCASE,SILVER 14001 14001-5097 1
RING BEARING SETTING 14013 14013-004 2
PLATE,POSITION 14014 14014-1006 1
STUD 92004 92004-059 3
STUD,8X146 92004A 92004-1016 4
STUD,8X108.5 92004B 92004-1017 4
STUD,8X128.5 92004C 92004-1018 4
PIN,DOWEL,10X8.2X14 92043 92043-1037 2
BRG,NEDL,37BTM4312 92046 92046-051 1
RING-O 92055 92055-1146 2
O RING 92055A 670D2010 2
NOZZLE,OIL BIAS 92062 92062-011 1
NOZZLE 92062A 92062-014 1
NOZZLE 92062B 92062-015 1
NOZZLE 92062C 92062-016 2
PLUG 92066 92066-066 2
PLUG,SECONDARY SHAFT 92066A 92066-1019 1
SCREW PAN HEAD 6X20 220 220B0620 2
"0" RING,46MM 670 670B3046 1
"O" RING,8M/M 670A 670D1508 2
