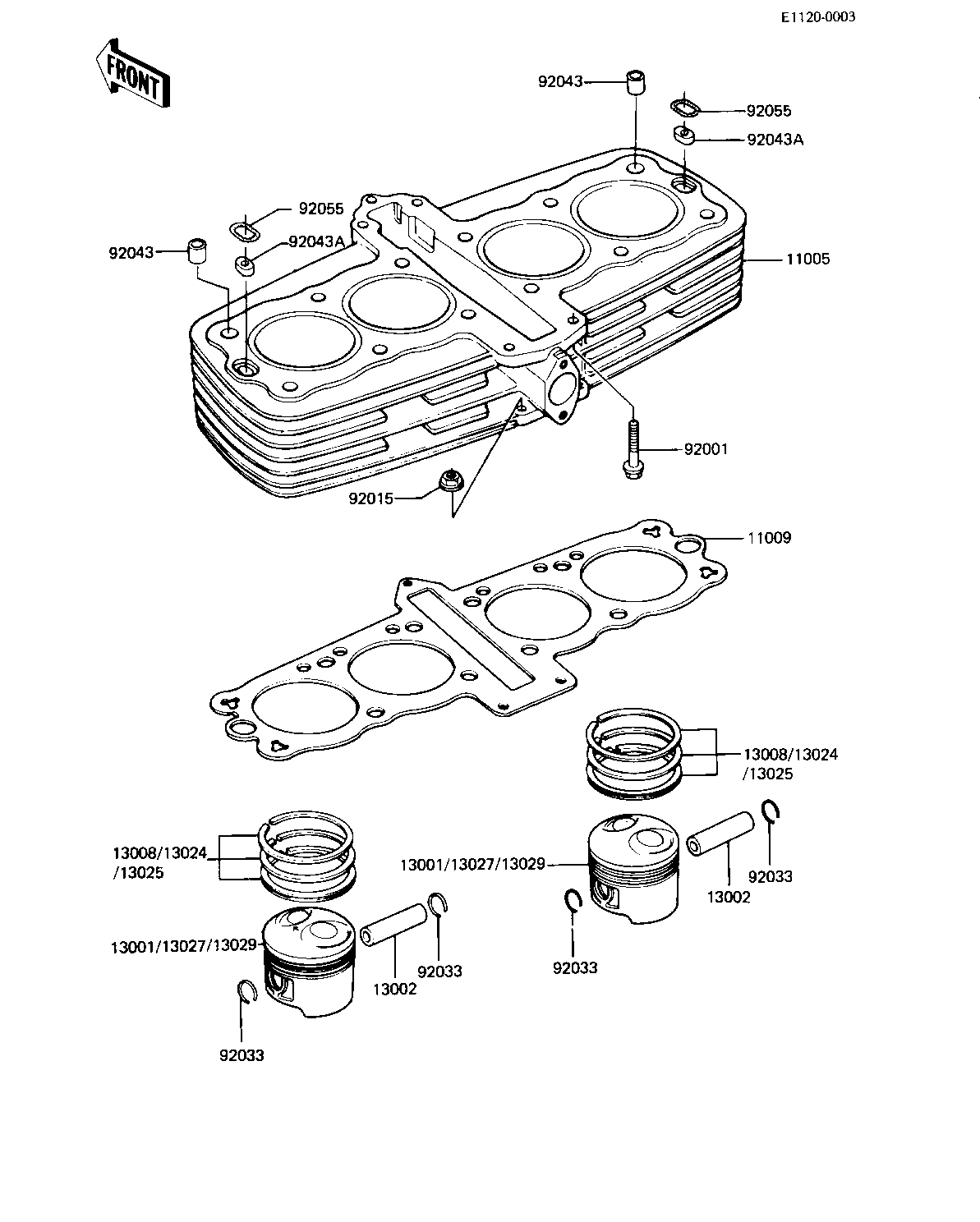

1983 LTD - CYLINDER/PISTONS ('82-'83 C3/C4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER ASSY,SILVER | 11005 | 11005-1111 | 1 | ||
| GASKET,CYLINDER BASE | 11009 | 11009-1932 | 1 | ||
| PISTON-ENGINE,STD | 13001 | 13001-1121 | 4 | ||
| PIN-PISTON | 13002 | 13002-1012 | 4 | ||
| RING-SET-PISTON,STD | 13008 | 13008-1009 | 4 | ||
| RING-SET-PISTON-LL | 13024 | 13024-1010 | 4 | ||
| RING-SET-PISTON-L | 13025 | 13025-1010 | 4 | ||
| PISTON-ENGINE-LL | 13027 | 13027-1053 | 4 | ||
| PISTON-ENGINE-L | 13029 | 13029-1055 | 4 | ||
| BOLT | 92001 | 92003-202 | 5 | ||
| NUT-6MM | 92015 | 92015-1078 | 3 | ||
| CIRCLIP,PISTON | 92033 | 92033-1050 | 8 | ||
| PIN,DOWEL,12MM | 92043 | 92042-031 | 2 | ||
| PIN,OIL LINE | 92043A | 92043-1210 | 2 | ||
| RING-O | 92055 | 92055-1147 | 2 |
| CYLINDER ASSY,SILVER | |
| REF # | 11005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE,STD | |
| REF # | 13001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 13002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON,STD | |
| REF # | 13008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON-LL | |
| REF # | 13024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON-L | |
| REF # | 13025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE-LL | |
| REF # | 13027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PISTON-ENGINE-L | |
| REF # | 13029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,PISTON | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,12MM | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,OIL LINE | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
