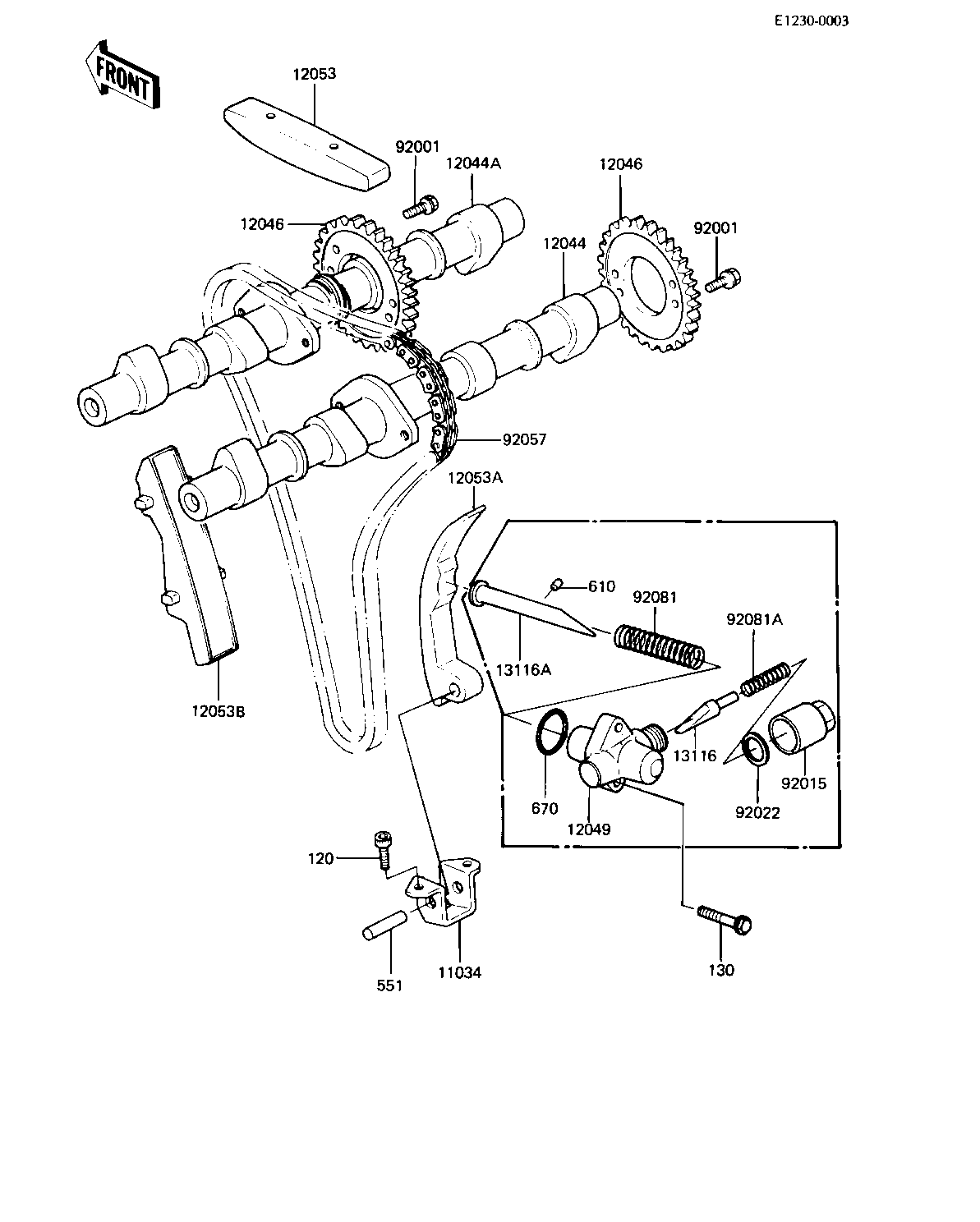

1983 LTD - CAMSHAFTS/CHAIN/TENSIONER ('82-'83 C3/C4
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CHAIN GUIDE | 11034 | 11034-1240 | 1 | ||
| CAM SHAFT,INLET | 12044 | 12044-1003 | 1 | ||
| CAM SHAFT,EXHAUST | 12044A | 12044-1004 | 1 | ||
| SPROCKET,CAM,42T | 12046 | 12046-1019 | 2 | ||
| TENSIONER,CAM CHAIN | 12049 | 12049-1009 | 1 | ||
| GUIDE,CAM CHAIN,HEAD | 12053 | 12053-1018 | 1 | ||
| GUIDE-CHAIN,CAM,RR | 12053A | 12053-1113 | 1 | ||
| GUIDE,CAM CHAIN,FRONT | 12053B | 12053-1022 | 1 | ||
| ROD,PUSH,CAM CHAIN | 13116 | 13116-1012 | 1 | ||
| ROD,PUSH,CAM CHAIN | 13116A | 13116-1020 | 1 | ||
| BOLT,SPROCKET FITTING | 92001 | 92003-208 | 4 | ||
| CAP,TENSIONER,18M/M | 92015 | 92015-1100 | 1 | ||
| WASHER,18.3X24X1.4T | 92022 | 92022-1175 | 1 | ||
| CHAIN,CAM,82RH2015-14 | 92057 | 92057-1290 | 1 | ||
| SPRING,TENSIONER | 92081 | 92081-1075 | 1 | ||
| SPRING,TENSIONER | 92081A | 92081-1302 | 1 | ||
| BOLT,ALLEN,6X18 | 120 | 120P0618 | 2 | ||
| BOLT,FLANGED,6X25 | 130 | 130G0625 | 2 | ||
| PIN,DOWEL,8X25 | 551 | 551A0825 | 1 | ||
| PIN DOWEL 4X8 | 610 | 610A0408 | 1 | ||
| "0" RING,21MM | 670 | 670B2021 | 1 |
