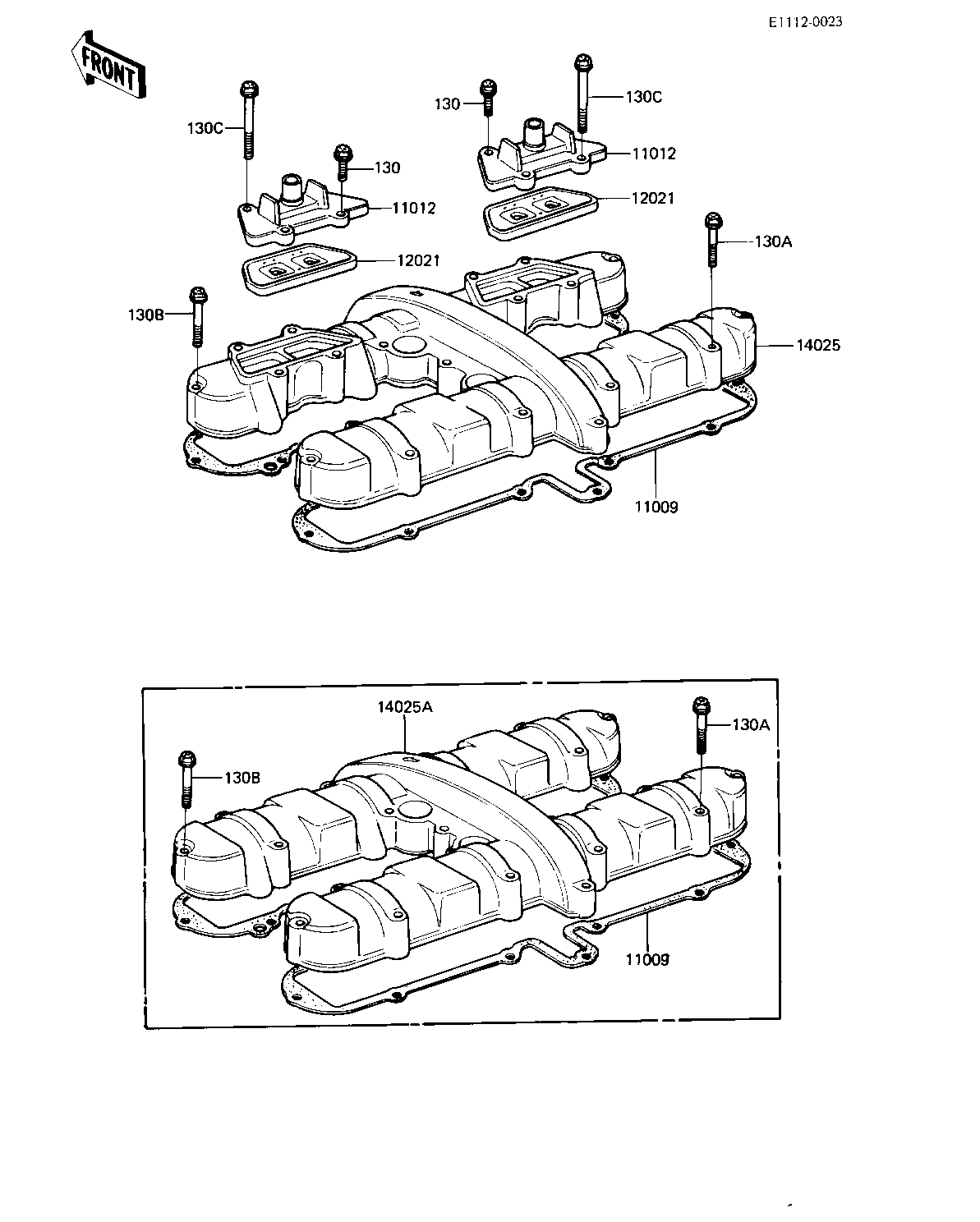

1983 LTD - CYLINDER HEAD COVERS ('82-'83 C3/C4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CYL HEAD COVER | 11009 | 11009-1058 | 1 | ||
| CAP,REED VALVE,SILVER | 11012 | 11012-1193 | 2 | US | |
| VALVE ASSY REED | 12021 | 12021-1003 | 2 | US | |
| COVER,CYL HEAD,SILVER | 14025 | 14025-1300 | 1 | US | |
| BOLT,FLANGED,6X20 | 130 | 130G0620 | 4 | US | |
| BOLT,FLANGED,6X35 | 130A | 130H0635 | 16 | US | |
| BOLT,FLANGED,6X45 | 130B | 130G0645 | 4 | CN | |
| BOLT,FLANGED,6X65 | 1300 | 130G0665 | 4 | US |
| GASKET,CYL HEAD COVER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,REED VALVE,SILVER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| VALVE ASSY REED | |
| REF # | 12021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| COVER,CYL HEAD,SILVER | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| BOLT,FLANGED,6X20 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | US |
| BOLT,FLANGED,6X35 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | US |
| BOLT,FLANGED,6X45 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | CN |
| BOLT,FLANGED,6X65 | |
| REF # | 1300 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | US |
