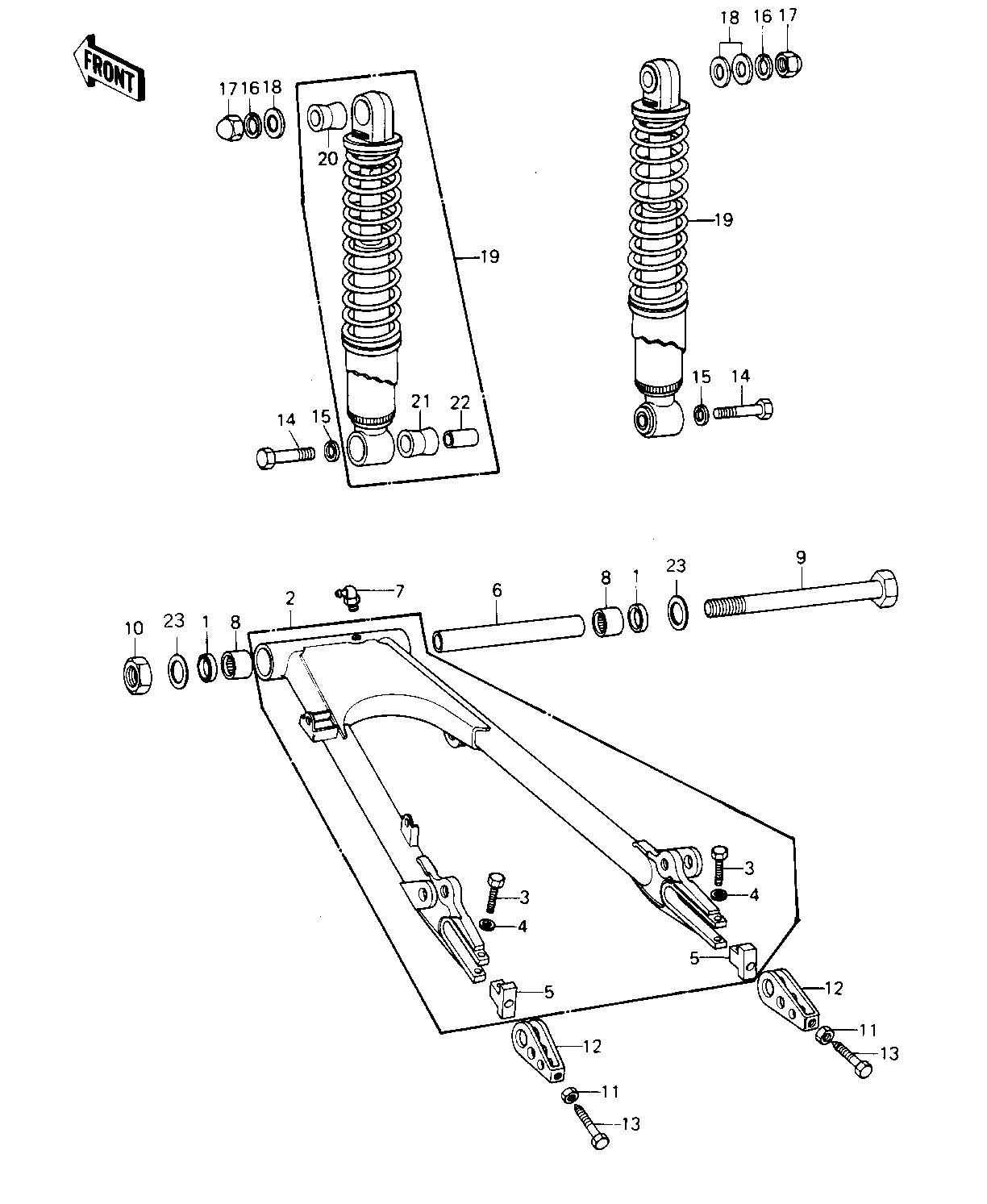

1981 LTD - SWING ARM/SHOCK ABSORBERS ('80-'81 C1/C2

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
OIL SEAL,MHA22284 1 92049-1059 2 KZ550-C1
ARM-COMP-SWING 2 33001-1097 1 KZ550-C1
ARM-COMP-SWING 2 33001-1097 1 KZ550-C1
ARM-COMP-SWING 2 33001-1097 1 KZ550-C2
BOLT,SMALL UPSET 3 115G0835 2
WASHER SPRING 8MM 4 461F0800 2
STOPPER,CHAIN ADJUST 5 33044-002 2
SLEEVE,SWING ARM 6 42036-1018 1
GREASE NIPPLE 7 92005-002 1 USE FOR 33001-1063/1067
BEARING-NEEDLE,HK2216 8 92046-1115 2
SHAFT,SWING ARM 9 33032-1004 1
NUT-LOCK,14MM 10 92019-011 1
UNAVAILABLE IN PRICE BOOK 11 31880800 2
ADJUSTER,CHAIN 12 33040-056 2
BOLT,8X50 13 92001-1399 2 KZ550-C1
BOLT,8X50 13 92001-1399 2 KZ550-C2
BOLT HEX HEAD 10X35 14 113N1035 2
WASHER SPRING 10MM 15 461F1000 2
WASHER SPRING 10MM 16 461F1000 2 2
NUT SHOCK ABSORBER 17 92020-003 2
WASHER-PLN,10X22X3.2 18 92022-176 3
SHOCK ABSBR RR 19 45014-1103 2 KZ550-C1
SHOCK ABSBR RR 19 45014-1103 2 KZ550-C2
BUSHING,SHCK ABS RUB 20 45017-015 2
BUSHING, SHCK ABS RUB 21 45017-012 2
BUSHING,SHOCK ABSORB 22 45016-008 2
SHIM,SWING ARM,34X0.5 23 92025-1228 AR OPTION
