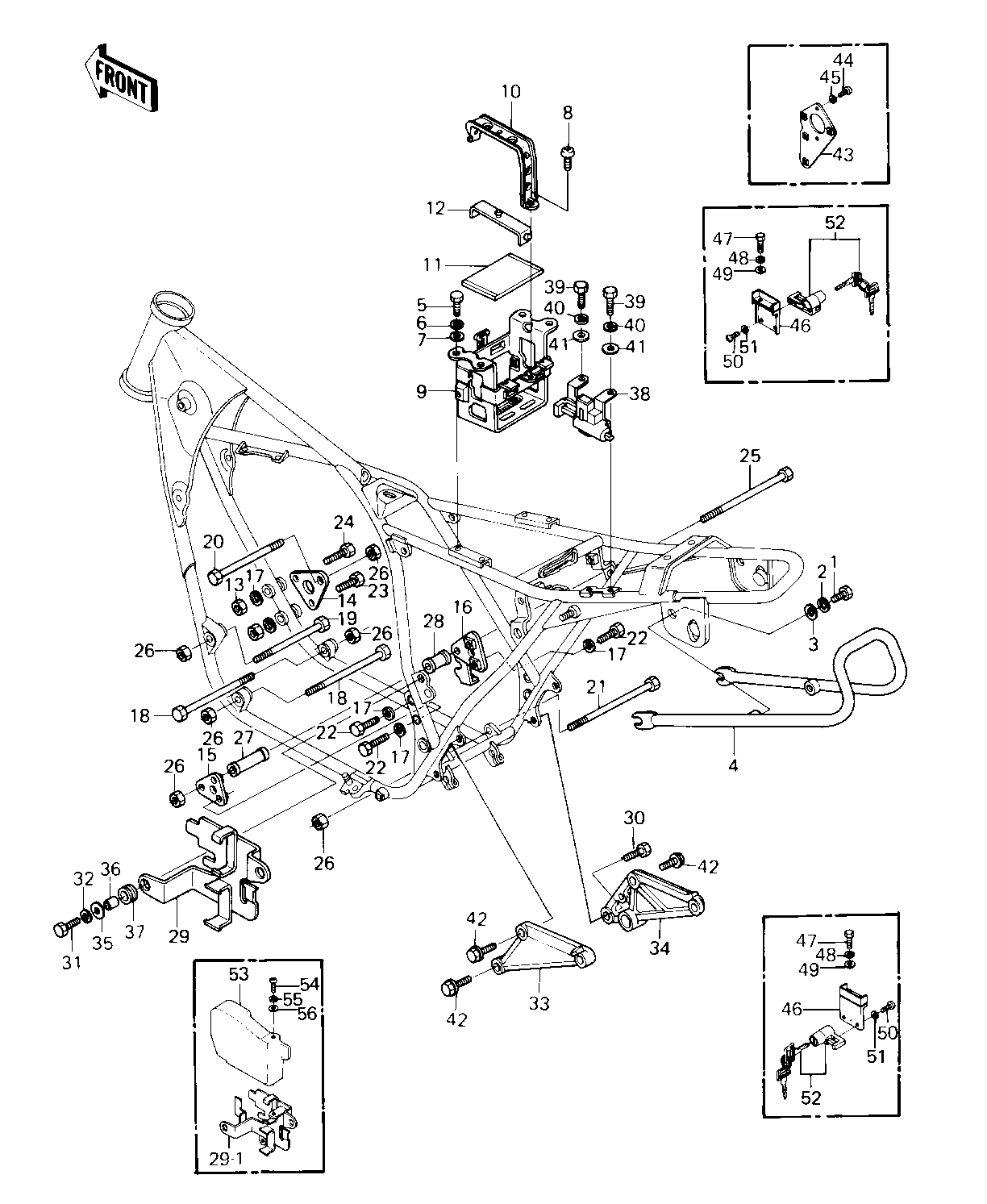

1981 LTD - FRAME FITTINGS/BATTERY CASE ('80-'81 C1/

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X18 1 115G0818 2
WASHER SPRING 8MM 2 461F0800 2
WASHER PLAIN 8MM 3 410B0800 2
STAY,REAR 4 35011-1050 1
BOLT-UPSET,6X12 5 112G0612 4
WASHER SPRING 6MM 6 461F0600 4
WASHER PLAIN 6MM 7 411B0600 4
SCREW PAN HEAD 6X12 8 220B0612 1
CASE,BATTERY 9 32097-1027 1
BAND,BATTERY 10 92072-1019 1
DAMPER,BATTERY BASE 11 92075-1076 1
DAMPER,BATTERY BAND 12 92075-1113 1
NUT,8M/M 13 317B0800 2
BRACKET,ENGINE 14 32029-1048 1
BRACKET,ENGINE 15 32029-1049 1
BRACKET,ENGINE 16 32029-1050 1
WASHER SPRING 8MM 17 461F0800 6
BOLT,HEX HEAD,10X84 18 92001-1048 2
BOLT,HEX HEAD,10X72 19 92001-1049 1
BOLT,FLANGED,10X60 20 92001-1599 1
BOLT,FLANGED,10X180 21 92001-1606 1
BOLT 22 92001-1578 4 KZ550-C1
BOLT 22 92001-1578 4 KZ550-C2
BOLT,HEX HEAD,8X59 23 110G0859 1 KZ550-C1
BOLT,FLANGED,8X60 23 92001-1581 1 KZ550-C2
BOLT-8X63 24 92001-1397 1 KZ550-C1
BOLT-8X63 24 92001-1397 1 KZ550-C2
BOLT,FLANGED,10X255 25 92001-1609 1
NUT,LOCK,10MM 26 92019-021 6
COLLAR,L=57.5M/M 27 92027-1109 1
COLLAR,L=37M/M 28 92027-1110 1
BRACKET,ELECTRO BASE 29 11034-1781 1 KZ550-C1
BRACKET,ELECTRO BASE 29-1 11034-1975 1 KZ550-C2
BOLT-HEX HEAD 8X30 30 114G0830 1
BOLT-UPSET,6X20 31 112G0620 2
WASHER SPRING 6MM 32 461F0600 2
STAY,L.H,MUFFLER 33 35011-1051 1
STAY,R.H,MUFFLER 34 35011-1052 1
WASHER 6.5X20X1.6T 35 92022-125 2
COLLAR 36 92027-165 2
DAMPER RUBBER 37 92075-149 2
HOOK ASSY,HELMET 38 53045-1001 1 KZ550-C1
BOLT-UPSET,6X12 39 112G0612 2 KZ550-C1
WASHER SPRING 6MM 40 461F0600 2 KZ550-C1
WASHER PLAIN 6MM 41 411B0600 2 KZ550-C1
BOLT,8X28 42 92001-1095 3
BRACKET,CDI UNIT 43 11034-1985 1 KZ550-C2
SCREW PAN HEAD 6X12 44 220B0612 2 KZ550-C2
WASHER SPRING 6MM 45 461F0600 2 KZ550-C2
BRACKET,HELMET LOCK 46 11034-1926 2 KZ550-C2
BOLT-UPSET 6X14 47 112B0614 4 KZ550-C2
WASHER SPRING 6MM 48 461F0600 4 KZ550-C2
WASHER PLAIN 6MM 49 411B0600 4 KZ550-C2
SCREW PAN HEAD 5X10 50 220B0510 4 KZ550-C2
WASHER SPRING 5MM 51 461F0500 4 KZ550-C2
LOCK ASSY,HELMET 52 27016-5038 2 KZ550-C2
COVER,ELECTRO 53 14025-1295 1 KZ550-C2
SCREW PAN HEAD 6X14 54 220B0614 2 KZ550-C2
WASHER SPRING 6MM 55 461F0600 2 KZ550-C2
WASHER 6.5X20X1.6T 56 92022-125 2 KZ550-C2
