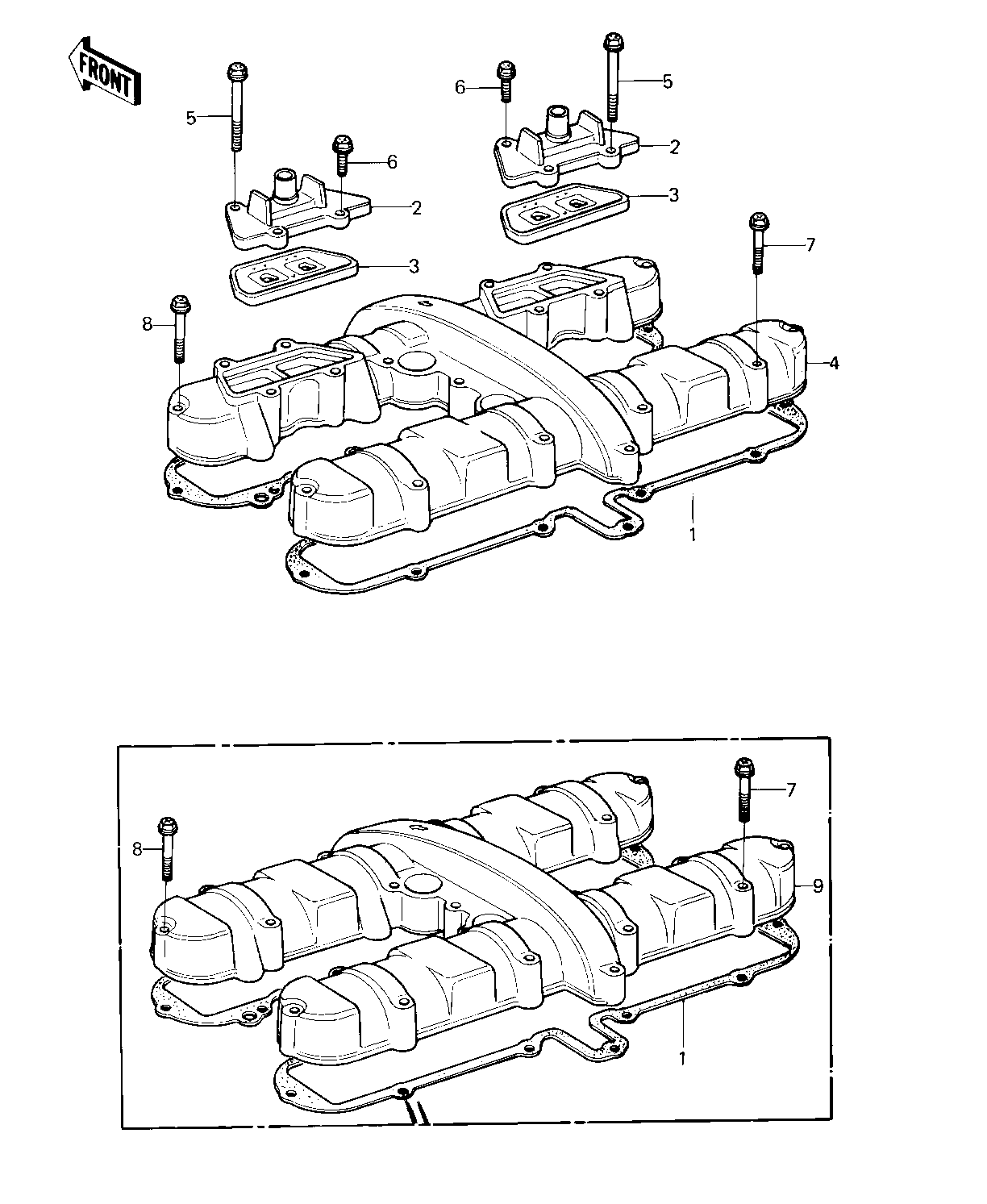

1981 LTD - CYLINDER HEAD COVER ('80-'81 C1/C2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CYL HEAD COVER | 1 | 11009-1058 | 1 | ||
| CAP,REED VALVE,SILVER | 2 | 11012-1193 | 2 | KZ550-C1 | |
| CAP,REED VALVE,SILVER | 2 | 11012-1193 | 2 | KZ550-C2 | |
| VALVE ASSY REED | 3 | 12021-1003 | 2 | USA | |
| COVER,CYL HEAD,SILVER | 4 | 14025-1300 | 1 | KZ550-C1 | |
| COVER,CYL HEAD,SILVER | 4 | 14025-1300 | 1 | KZ550-C2 | |
| BOLT,HEX HEAD,6X65 | 5 | 92001-1102 | 4 | USA | |
| BOLT,FLANGED,6X22 | 6 | 92001-1352 | 4 | USA | |
| BOLT,HEX HEAD,6X35 | 7 | 92001-164 | 16 | USA | |
| BOLT,HEX HEAD,6X35 | 7 | 92001-164 | 20 | CANADA | |
| BOLT,HEX HEAD,6X45 | 8 | 92001-165 | 4 | ||
| 14025-1301 (Canada) | 9 | 14025-1059 | 1 | KZ550-C1 | |
| COVER,CYL HEAD,SILVER (Canada) | 9 | 14025-1301 | 1 | KZ550-C2 |
