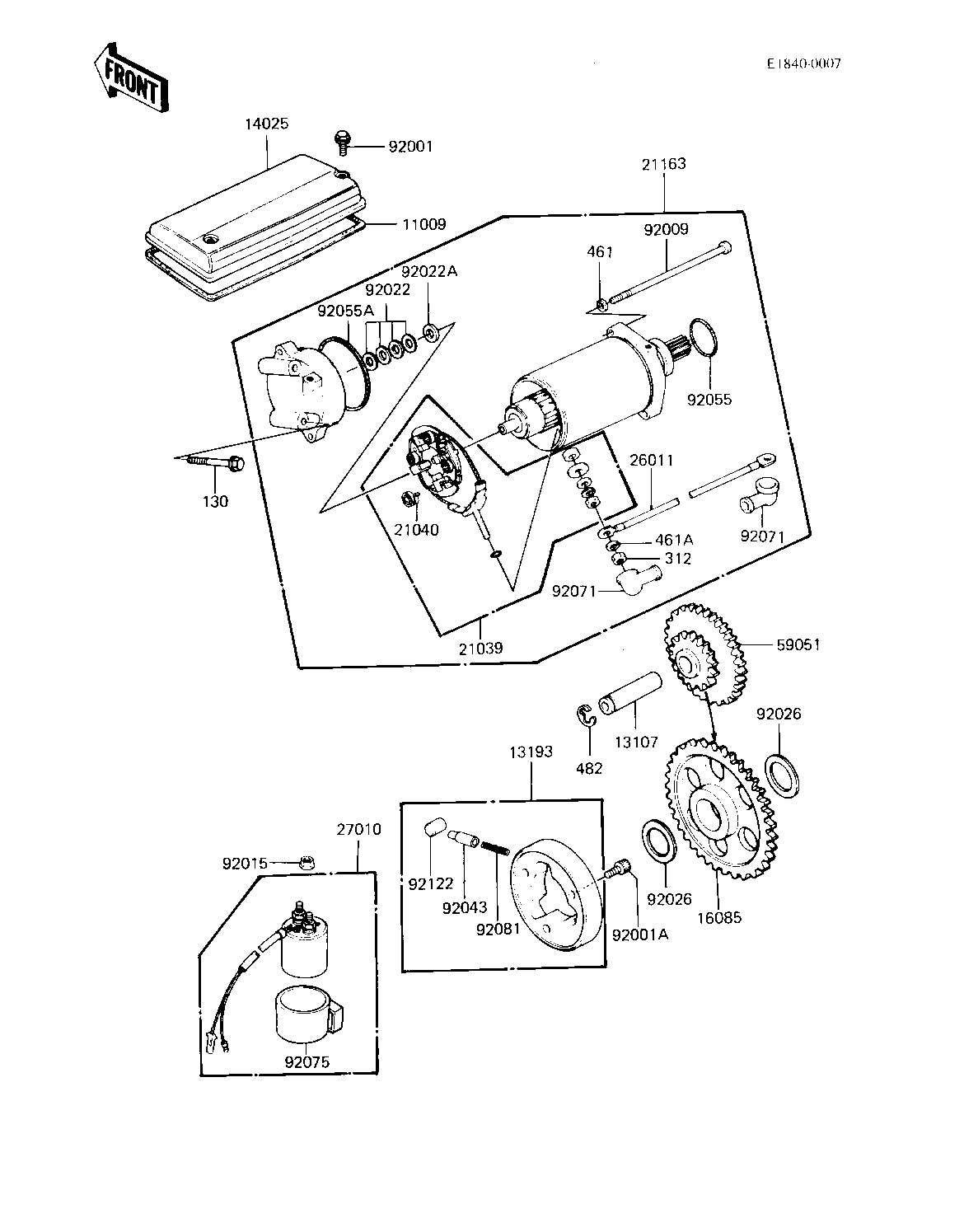

1982 KZ550-A3 - STARTER MOTOR/STARTER CLUTCH ('82-'83 A3
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,STARTER COVER | 11009 | 11009-1069 | 1 | ||
| SHAFT,IDLE GEAR | 13107 | 13107-1006 | 1 | ||
| CLUTCH ASSY,ONEWAY | 13193 | 13193-1002 | 1 | ||
| COVER,STARTER MOTOR | 14025 | 14025-1050 | 1 | ||
| GEAR,ONEWAY CLUTCH | 16085 | 16085-1030 | 1 | ||
| BRUSH SET,CARBON | 21039 | 21039-1005 | 1 | ||
| SPRING,CARBON BRUSH | 21040 | 21040-1002 | 4 | ||
| STARTER-ELECTRIC | 21163 | 21163-1031 | 1 | ||
| WIRE,STARTER MOTOR | 26011 | 26011-1073 | 1 | ||
| SWITCH ASSY,MAGNETIC | 27010 | 21164-005 | 1 | ||
| GEAR,STARTER IDLE | 59051 | 59051-1011 | 1 | ||
| BOLT,6X10 | 92001 | 92001-1151 | 2 | ||
| BOLT,SOCKET,8X10 | 92001A | 92001-1424 | 3 | ||
| SCREW,PAN HEAD,6X110 | 92009 | 21015-005 | 2 | ||
| NUT-6MM | 92015 | 92015-1078 | 2 | ||
| WASHER,THRUST,0.2T | 92022 | 21025-011 | 4 | ||
| WASHER,THRUST,0.8T | 92022A | 92022-1132 | 1 | ||
| SPACER,25X36X3.2 | 92026 | 92026-1025 | 2 | ||
| PIN | 92043 | 92043-132 | 3 | ||
| "0" RING,STARTING MTR | 92055 | 21027-004 | 1 | ||
| "0" RING,STARTER MOTR | 92055A | 92055-1086 | 1 | ||
| GROMMET,CORD | 92071 | 21017-017 | 2 | ||
| DAMPER MAG SWITCH SHK | 92075 | 21064-002 | 1 | ||
| SPRING,COIL | 92081 | 92081-159 | 3 | ||
| ROLLER | 92122 | 92122-006 | 3 | ||
| BOLT,FLANGED,6X55 | 130 | 130G0655 | 2 | ||
| NUT 6MM | 312 | 312B0600 | 1 | ||
| WASHER SPRING 5MM | 461 | 461F0500 | 2 | ||
| WASHER SPRING 6MM | 461A | 461F0600 | 1 | ||
| CIRCLIP 12MM | 482 | 482K0200 | 1 |
| GASKET,STARTER COVER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,IDLE GEAR | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLUTCH ASSY,ONEWAY | |
| REF # | 13193 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,STARTER MOTOR | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,ONEWAY CLUTCH | |
| REF # | 16085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRUSH SET,CARBON | |
| REF # | 21039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CARBON BRUSH | |
| REF # | 21040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STARTER-ELECTRIC | |
| REF # | 21163 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE,STARTER MOTOR | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH ASSY,MAGNETIC | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,STARTER IDLE | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X10 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,PAN HEAD,6X110 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,0.2T | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,0.8T | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,25X36X3.2 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| "0" RING,STARTING MTR | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,STARTER MOTR | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,CORD | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER MAG SWITCH SHK | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,COIL | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| ROLLER | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X55 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 312 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 461A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 12MM | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
