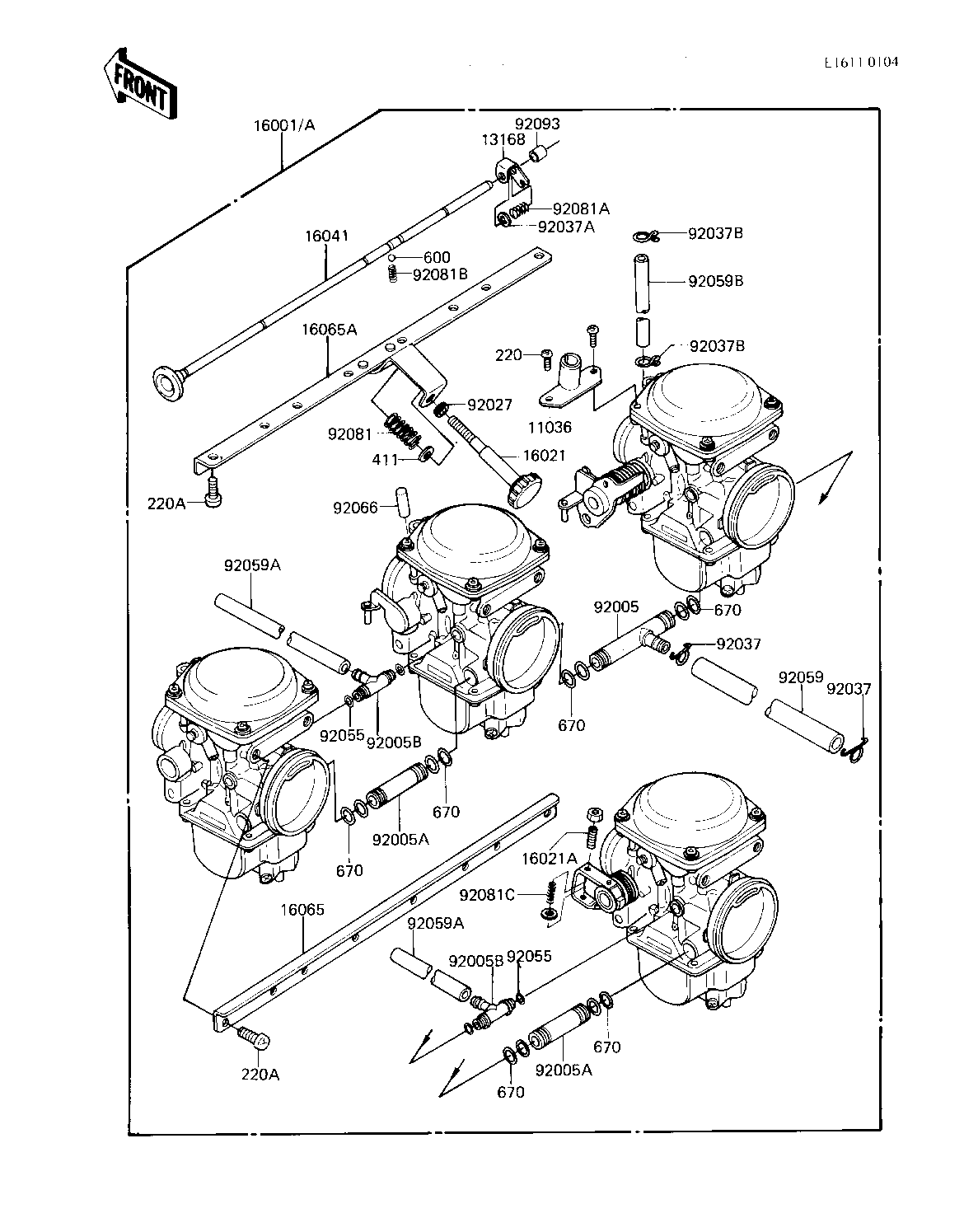

1983 KZ550-A4 - CARBURETOR ASSY (KZ550-A4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-A,THROTTLE CA 11036 11036-1760 1
LEVER 13168 13168-1110 4
CARBURETOR,AP 16001 16001-1703 1 US
CARBURETOR (Canada) 16001A 16001-1708 1 CN
SCREW-THROTTLE STOP 16021 16021-1038 1
SCREW-THROTTLE STOP 16021A 16021-1043 3
SHAFT-CARBURETOR,STAR 16041 16041-1027 1
HOLDER-CARBURETOR 16065 16065-1057 1
HOLDER-CARBURETOR 16065A 16065-1058 1
"T"JOINT,FUEL 92005 92005-1020 1
JOINT,FUEL 92005A 92005-1021 2
FITTING 92005B 92005-1058 2
COLLAR,STOP SCREW 92027 92027-1432 1
CLAMP,FUEL HOSE 92037 92037-1158 2
CLAMP 92037A 92037-1302 4
CLAMP,TUBE 92037B 92037-1378 2
RING-O 92055 92055-1134 4
TUBE 92059 92059-1214 1
TUBE 92059A 92059-1215 2
TUBE,5X9X220 92059B 92059-1260 1
RUBBER PLUG 92066 92068-006 1 US
SPRING,ADJUST SCREW 92081 92081-1193 1
SPRING 92081A 92081-1439 4
SPRING,SHAFT STOP 92081B 92081-1440 1
SPRING 92081C 92081-1442 3
SEAL 92093 92093-1074 4
SCREW PAN HEAD 4X10 220 220B0410 2
SCREW PAN HEAD 6X14 220A 220B0614 16
WASHER PLAIN 6MM 411 411B0600 1
BALL,STEEL,1/8" 600 600A0400 1
"O" RING,7MM 670 670B1507 12
