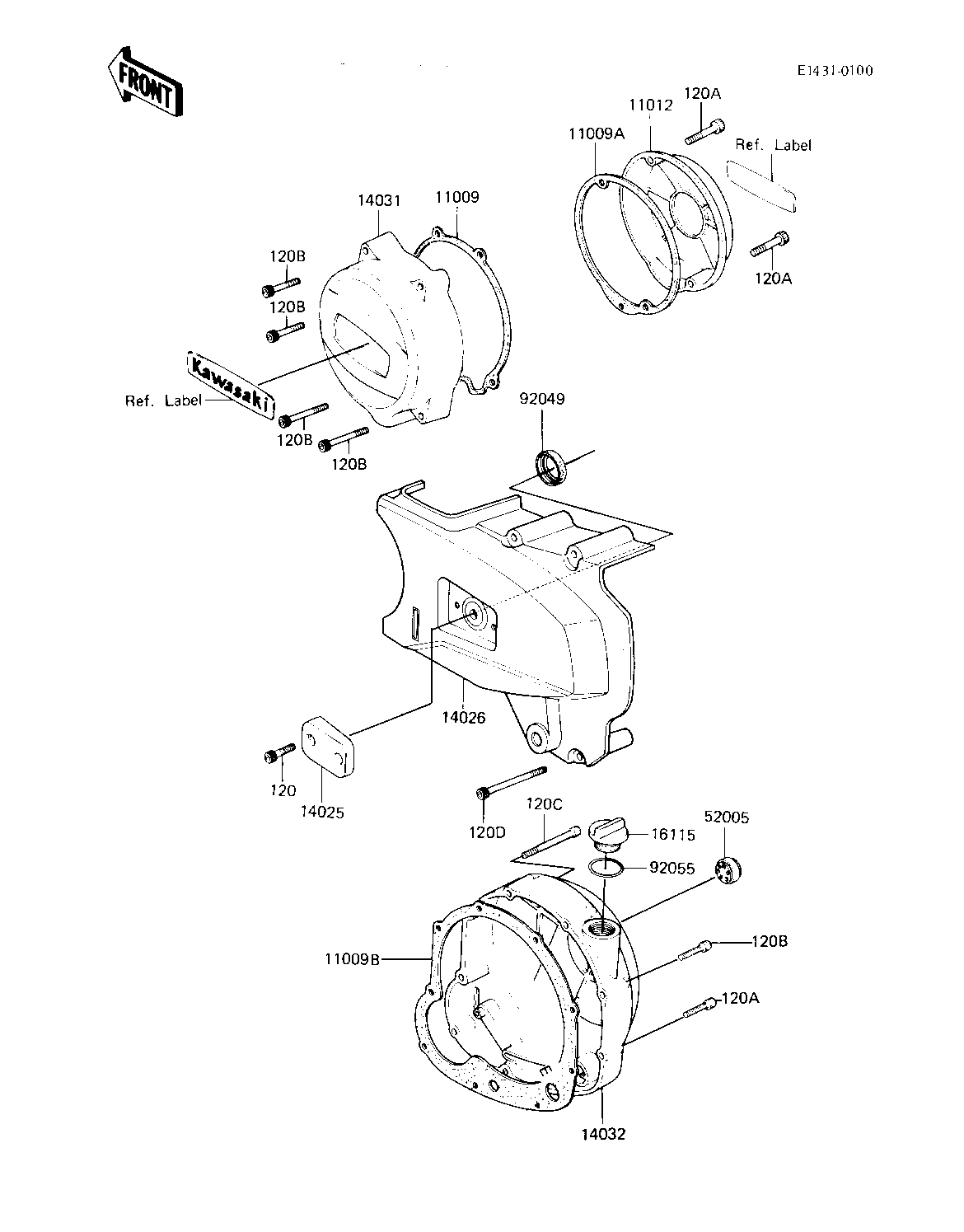

1983 KZ550-A4 - ENGINE COVERS (KZ550-A4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,GENERATOR COVE | 11009 | 11060-1055 | 1 | ||
| GASKET,PULSING COIL C | 11009A | 11060-1053 | 1 | ||
| GASKET,CLUTCH COVER | 11009B | 11060-1054 | 1 | ||
| CAP,PULSING COIL | 11012 | 11012-1266 | 1 | ||
| COVER,CLUTCH ADJUSTIN | 14025 | 14025-1249 | 1 | ||
| COVER-CHAIN | 14026 | 14026-1083 | 1 | ||
| COVER-GENERATOR,BUFF | 14031 | 14031-1107 | 1 | ||
| COVER-CLUTCH,BUFF FIN | 14032 | 14032-1103 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| OIL SEAL,CLUTCH RELES | 92049 | 92049-1003 | 1 | ||
| "0" RING,31MM | 92055 | 92055-049 | 1 | ||
| BOLT,6X14 | 120 | 120P0614 | 2 | ||
| BOLT,SOCKET,6X30 | 120A | 120P0630 | 7 | ||
| BOLT,SOCKET,6X40 | 120B | 120P0640 | 6 | ||
| BOLT-SOCKET,6X60 | 120C | 120P0660 | 2 | ||
| BOLT-SOCKET,6X70 | 120D | 120P0670 | 4 |
