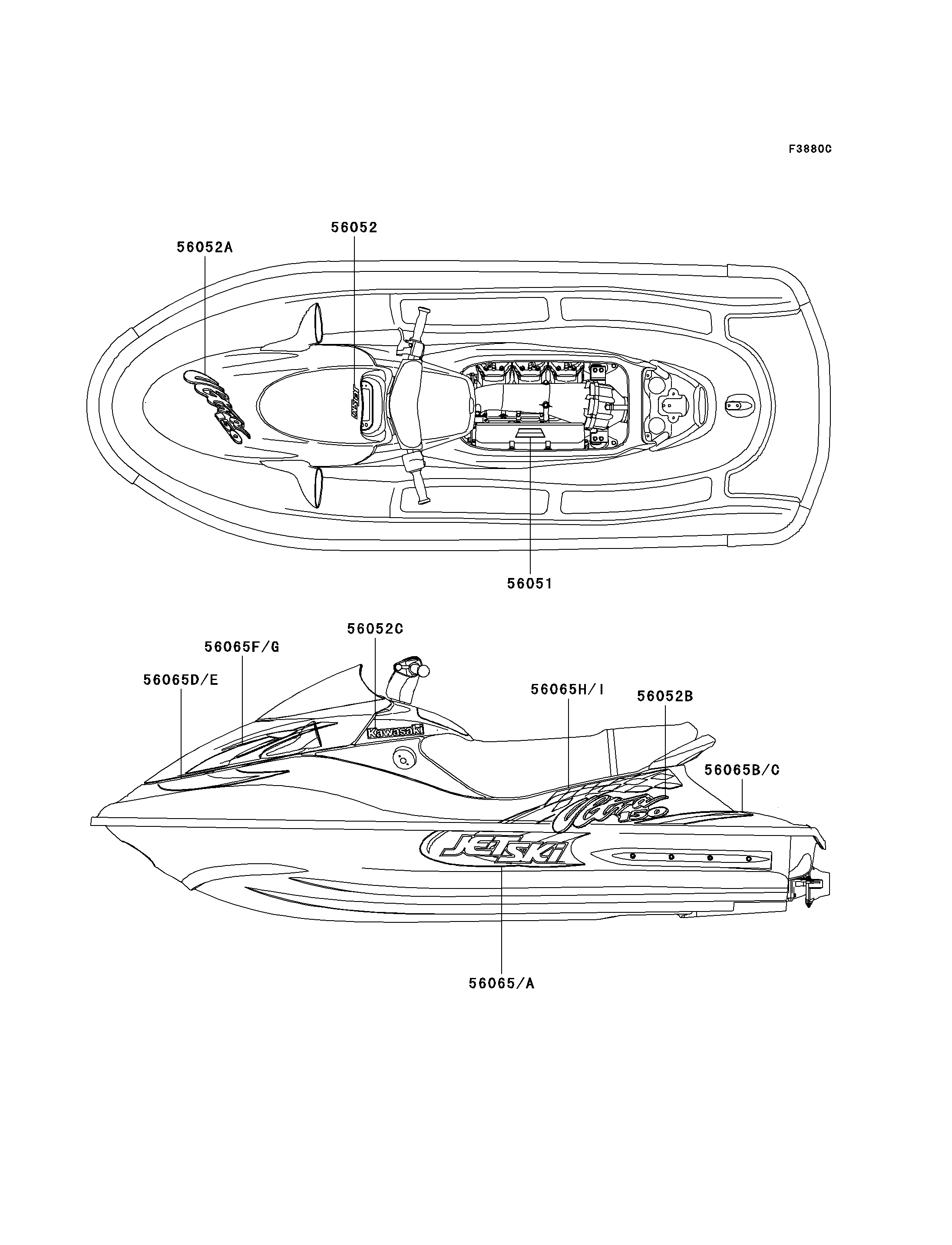

2002 Ultra 150 - Decals(White)(JH1200-A4)
56051
56052
56052A
56052B
56052C
56065
56065A
56065B
56065C
56065D
56065E
56065F
56065G
56065H
56065I
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,1200 TRIPLE | 56051 | 56051-3821 | 1 | ||
| MARK,METER COVER,JET SKI | 56052 | 56052-3754 | 1 | ||
| MARK,HANDLE COVER,ULTRA 150 | 56052A | 56052-3768 | 1 | ||
| MARK,DECK,ULTRA 150 | 56052B | 56052-3769 | 2 | ||
| MARK,METER COVER,KAWASAKI | 56052C | 56052-3770 | 2 | ||
| PATTERN,HULL,LH | 56065 | 56065-3744 | 1 | ||
| PATTERN,HULL,RH | 56065A | 56065-3745 | 1 | ||
| PATTERN,DECK,RR,LH | 56065B | 56065-3746 | 1 | ||
| PATTERN,DECK,RR,RH | 56065C | 56065-3747 | 1 | ||
| PATTERN,DECK,FR,LH | 56065D | 56065-3748 | 1 | ||
| PATTERN,DECK,FR,RH | 56065E | 56065-3749 | 1 | ||
| PATTERN,HATCH COVER,LH | 56065F | 56065-3750 | 1 | ||
| PATTERN,HATCH COVER,RH | 56065G | 56065-3751 | 1 | ||
| PATTERN,DECK,LH | 56065H | 56065-3752 | 1 | ||
| PATTERN,DECK,RH | 56065I | 56065-3753 | 1 |
| MARK,1200 TRIPLE | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,METER COVER,JET SKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,HANDLE COVER,ULTRA 150 | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,DECK,ULTRA 150 | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,METER COVER,KAWASAKI | |
| REF # | 56052C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,LH | |
| REF # | 56065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HULL,RH | |
| REF # | 56065A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,LH | |
| REF # | 56065B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RR,RH | |
| REF # | 56065C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,LH | |
| REF # | 56065D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,FR,RH | |
| REF # | 56065E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HATCH COVER,LH | |
| REF # | 56065F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HATCH COVER,RH | |
| REF # | 56065G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,LH | |
| REF # | 56065H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DECK,RH | |
| REF # | 56065I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
