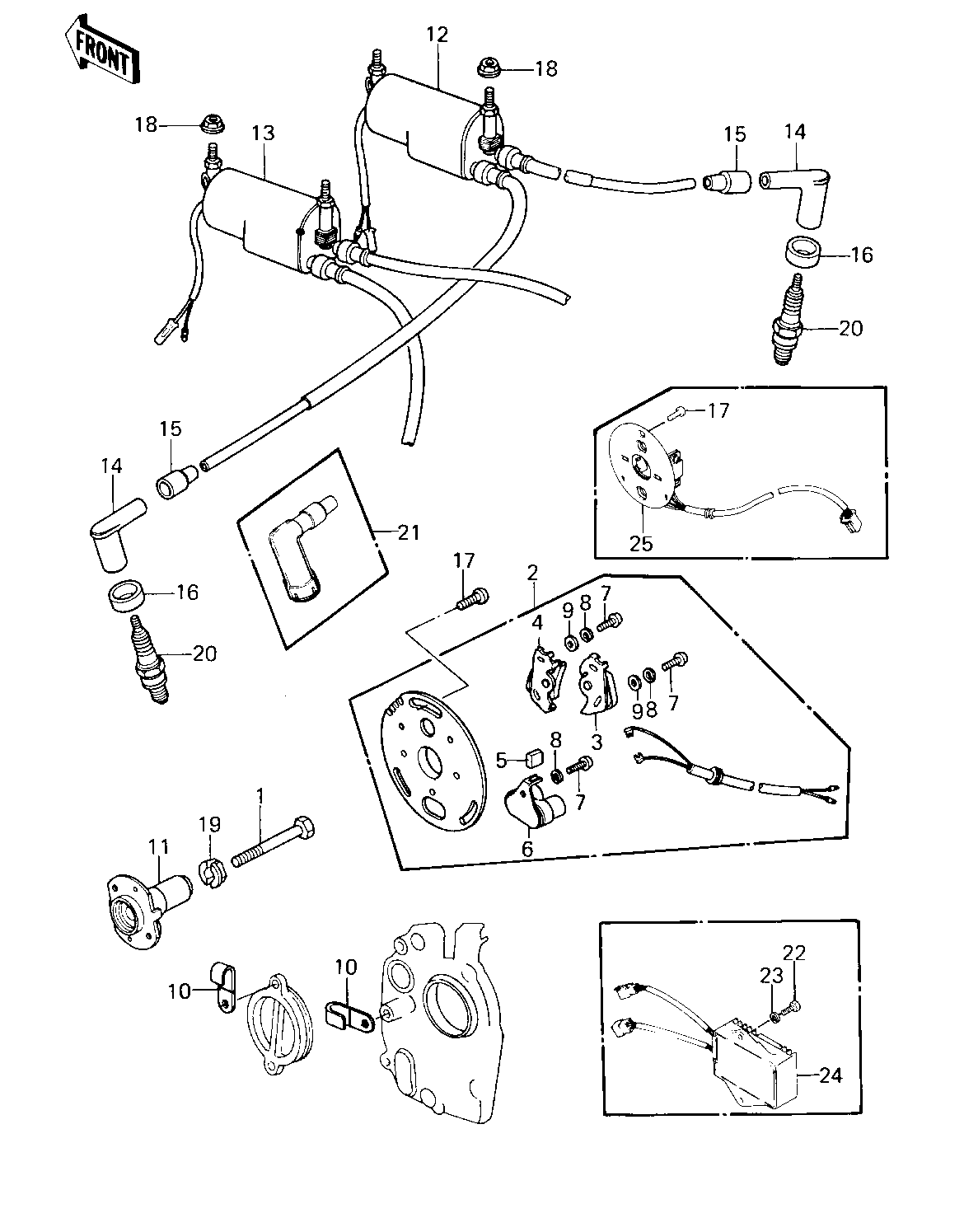

1981 KZ550-A2 - IGNITION ('80-'81 A2/A3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-8X63 | 1 | 92001-1397 | 1 | KZ550-A1 | |
| BOLT-8X63 | 1 | 92001-1397 | 1 | KZ550-A2 | |
| BREAKER ASSY,CONTACT | 2 | 21008-1015 | 1 | KZ550-A1 | |
| BREAKER,CONTACT | 3 | 21008-027 | 1 | KZ550-A1 | |
| BREAKER,CONTACT | 4 | 21008-028 | 1 | KZ550-A1 | |
| FELT OIL | 5 | 21019-005 | 1 | KZ550-A1 | |
| CONDENSER | 6 | 21013-037 | 1 | KZ550-A1 | |
| SCREW PAN HEAD 4X6 | 7 | 220B0406 | 5 | KZ550-A1 | |
| WASHER SPRING 4MM | 8 | 461F0400 | 5 | KZ550-A1 | |
| WASHER PLAIN 4MM | 9 | 410B0400 | 4 | KZ550-A1 | |
| CLAMP,WIRING HARNESS | 10 | 21126-008 | 2 | ||
| ADVANCER,AUTO TIMING | 11 | 21148-1005 | 1 | KZ550-A1 | |
| ADVANCER, | 11 | 21148-1016 | 1 | KZ550-A2 | |
| COIL,IGNITION,#1/#4 | 12 | 21121-1010 | 1 | KZ550-A1 | |
| COIL,IGNITION #1/4 | 12 | 21121-1035 | 1 | KZ550-A2 | |
| COIL,IGNITION #2/#3 | 13 | 21121-1011 | 1 | KZ550-A1 | |
| COIL,IGNITION,#2/3 | 13 | 21121-1036 | 1 | KZ550-A2 | |
| CAP,SPARK PLUG"LD05F" | 14 | 21130-1003 | 4 | ||
| GROMMET,SPARK PLG CAP | 15 | 21132-005 | 4 | ||
| GROMMET,SPARK PLUG | 16 | 92071-1015 | 4 | ||
| SCREW PAN HEAD 5X12 | 17 | 220B0512 | 3 | ||
| NUT-6MM | 18 | 92015-1078 | 4 | ||
| WASHER,SPARK ADVANCER | 19 | 92022-244 | 1 | ||
| SPARK PLUG D8EA | 20 | D8EA | 4 | ||
| 21160-1016 (Canada) | 21 | 21160-1002 | 4 | USE FOR CANADA MARKET | |
| BOLT-UPSET,6X16 | 22 | 112G0616 | 2 | KZ550-A2 | |
| WASHER SPRING 6MM | 23 | 461F0600 | 2 | KZ550-A2 | |
| IGNITER | 24 | 21119-1040 | 1 | KZ550-A2 | |
| COIL,PULSING | 25 | 59026-1009 | 1 | KZ550-A2 |
