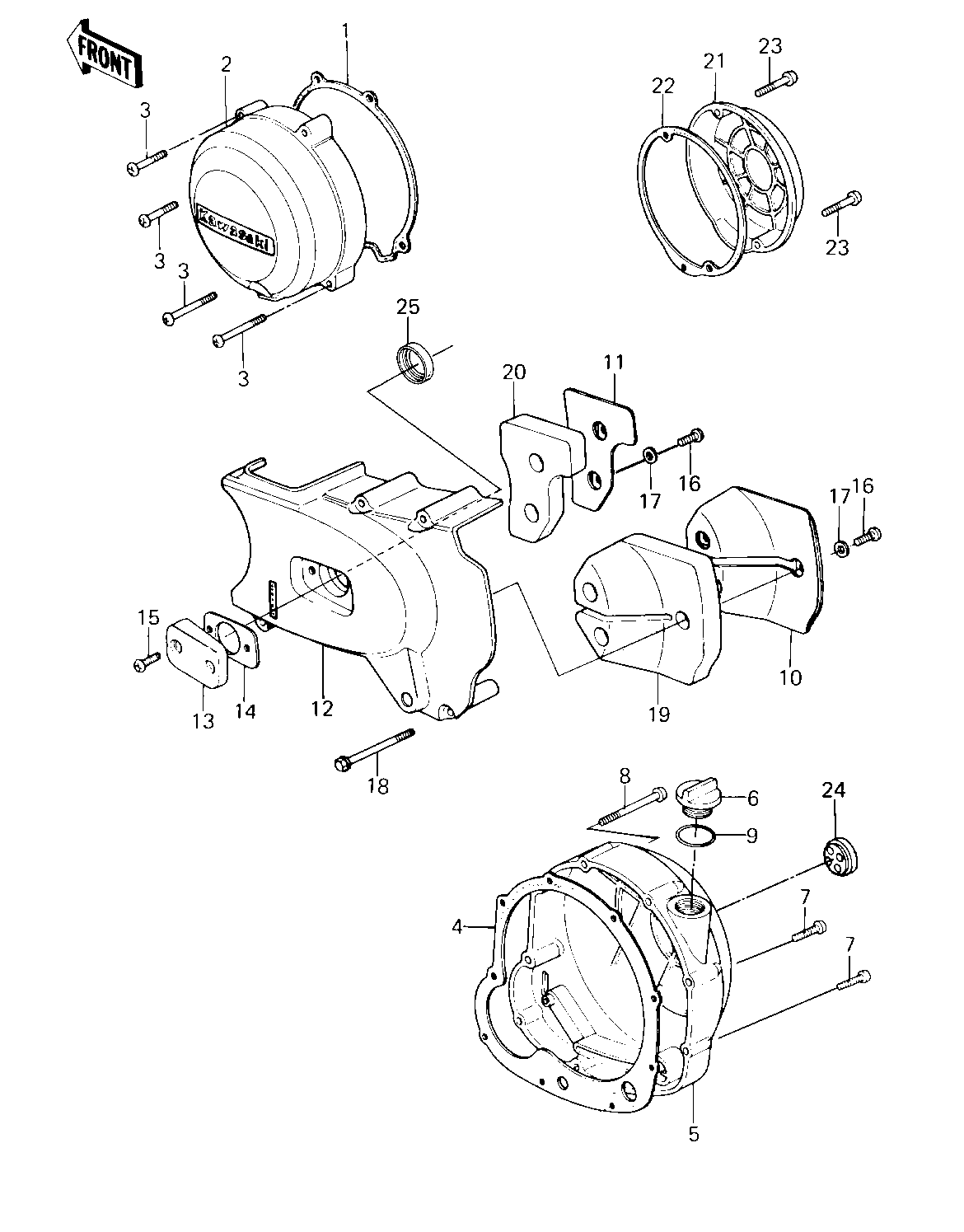

1981 KZ550-A2 - ENGINE COVERS ('80-'81 A1/A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,GENERATOR COVE | 1 | 11060-1055 | 1 | ||
| COVER,GENERATOR,BUFF | 2 | 14031-1014 | 1 | ||
| SCREW PAN HEAD 6X40 | 3 | 220B0640 | 4 | ||
| GASKET,CLUTCH COVER | 4 | 11060-1054 | 1 | ||
| COVER,CLUTCH,BUFF | 5 | 14032-5004 | 1 | ||
| PLUG,OIL FILLER | 6 | 16115-013 | 1 | ||
| SCREW PAN HEAD 6X30 | 7 | 220B0630 | 7 | ||
| SCREW PAN HEAD 6X60 | 8 | 220B0660 | 2 | ||
| "0" RING,31MM | 9 | 92055-049 | 1 | ||
| COVER,SOUND ARRESTER | 10 | 14025-1115 | 1 | ||
| COVER,SOUND ARRESTER | 11 | 14025-1116 | 1 | ||
| COVER,CHAIN | 12 | 14026-1015 | 1 | USE FOR 13231-020 | |
| COVER,CHAIN | 12 | 14026-1047 | 1 | USE FOR 13102-1008 | |
| COVER,CLUTCH ADJUSTNG | 13 | 14028-006-80 | 1 | ||
| GASKET,CLUTCH ADJ CAP | 14 | 14049-004 | 1 | ||
| SCREW PAN HEAD 6X18 | 15 | 220B0618 | 2 | ||
| SCREW PAN HEAD 6X12 | 16 | 220B0612 | 5 | ||
| WASHER PLAIN 6MM | 17 | 410B0600 | 5 | ||
| BOLT-FLANGED,6X70 | 18 | 130G0670 | 4 | ||
| DAMPER,CHAIN COVER RR | 19 | 92075-1158 | 1 | ||
| DAMPER,CHAIN COVER FR | 20 | 92075-1159 | 1 | ||
| CAP,CONTACT BREAKER | 21 | 11012-1098 | 1 | ||
| GASKET,PULSING COIL C | 22 | 11060-1053 | 1 | ||
| SCREW PAN HEAD 6X30 | 23 | 220B0630 | 2 | ||
| GAUGE,OIL LEVEL | 24 | 52005-1009 | 1 | ||
| OIL SEAL,CLUTCH RELES | 25 | 92049-1003 | 1 | USE FOR 14026-1041 |
