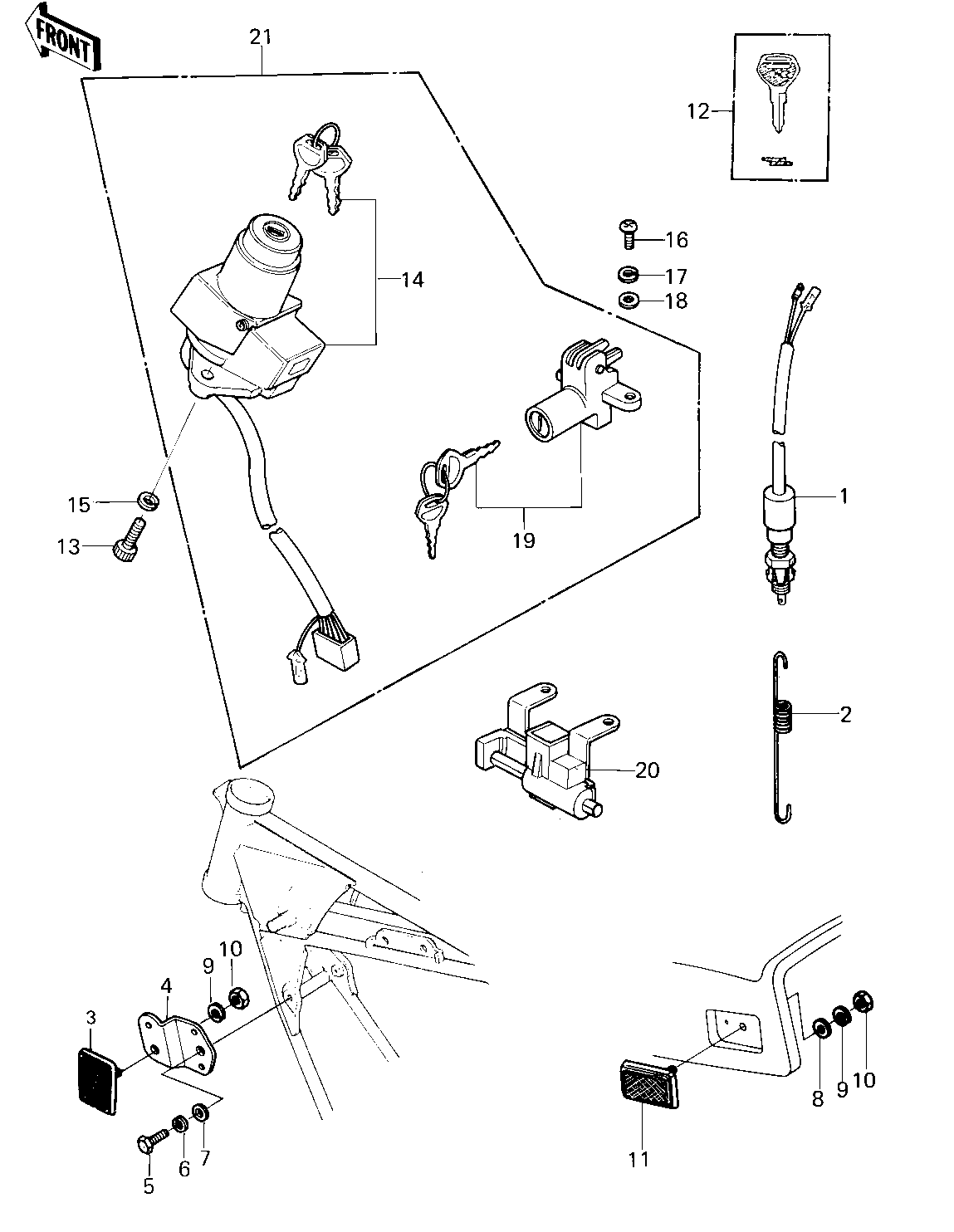

1980 KZ750-E1 - IGNITION SWITCH/LOCKS/REFLECTORS ('80 KZ
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH,BRAKE LAMP | 1 | 27010-1019 | 1 | ||
| SPRING,BRAKE LIGHT SW | 2 | 27011-015 | 1 | ||
| REFLECTOR,REFLEX(FRON | 3 | 28012-1003 | 2 | ||
| BRACKET,REFLEX REFLCT | 4 | 11034-1796 | 2 | ||
| BOLT-UPSET | 5 | 112G0516 | 2 | ||
| WASHER SPRING 5MM | 6 | 461F0500 | 2 | ||
| WASHER PLAIN 5MM | 7 | 411B0500 | 2 | ||
| WASHER PLAIN 5MM | 8 | 411B0500 | 2 | ||
| WASHER SPRING 5MM | 9 | 461F0500 | 4 | ||
| NUT,5MM | 10 | 311B0500 | 4 | ||
| REFLECTOR-REFLEX,RR | 11 | 28012-1054 | 2 | ||
| KEY-LOCK,BLANK | 12 | 27008-1103 | (1 | OPTION | |
| BOLT-SOCKET,6X16,BLAC | 13 | 120S0616 | 2 | ||
| SWITCH-ASSY-IGNITION | 14 | 27005-5024 | 1 | ||
| WASHER SPRING 6MM | 15 | 461F0600 | 2 | ||
| SCREW PAN HEAD 6X14 | 16 | 220B0614 | 1 | ||
| WASHER SPRING 6MM | 17 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 18 | 410B0600 | 1 | ||
| LOCK-ASSY,SEAT | 19 | 27016-5010 | 1 | ||
| HOOK ASSY,HELMET | 20 | 53045-1001 | 1 | ||
| SWITCH-ASSY | 21 | 27004-5151 | (1 | OPTION |
| SWITCH,BRAKE LAMP | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE LIGHT SW | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR,REFLEX(FRON | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,REFLEX REFLCT | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 5MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 5MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR-REFLEX,RR | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KEY-LOCK,BLANK | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | OPTION |
| BOLT-SOCKET,6X16,BLAC | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY-IGNITION | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,SEAT | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK ASSY,HELMET | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | OPTION |
