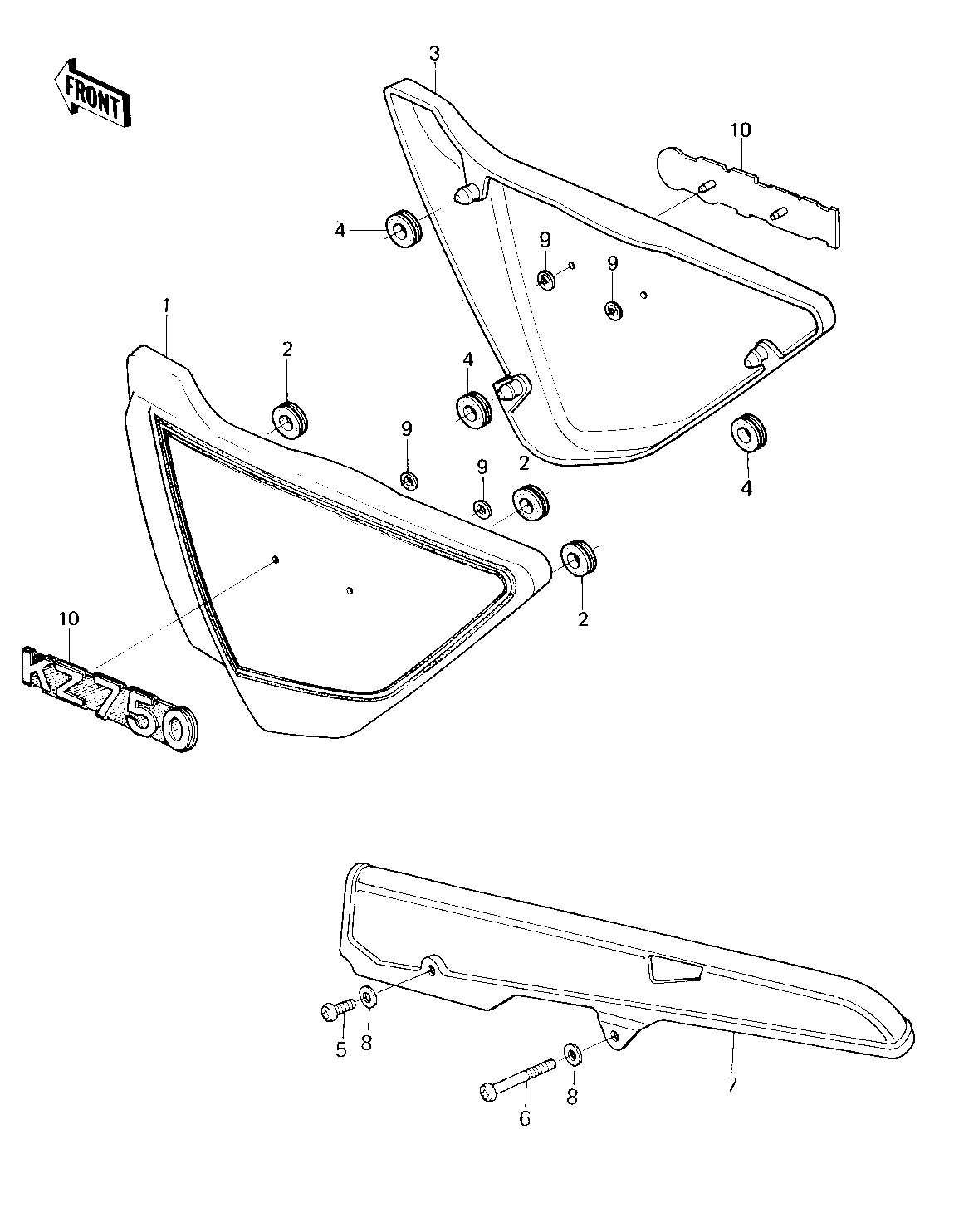

1980 KZ750-E1 - SIDE COVERS/CHAIN COVER ('80 KZY 50-E1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SIDE,L.H,RED | 1 | 36001-1095-7Y | 1 | ||
| GROMMET | 2 | 92071-056 | 3 | ||
| COVER,SIDE,R.H,RED | 3 | 36001-1096-7Y | 1 | ||
| GROMMET | 4 | 92071-056 | 3 | ||
| SCREW PAN HEAD 6X14 | 5 | 220B0614 | 1 | ||
| SCREW PAN HEAD 6X65 | 6 | 220B0665 | 1 | ||
| CASE-CHAIN | 7 | 36014-1005 | 1 | ||
| WASHER 6.5X20X1.6T | 8 | 92022-125 | 2 | ||
| NUT,LOCK,3MM | 9 | 92018-005 | 4 | ||
| MARK,SIDE COVER | 10 | 56018-1160 | 2 |
| COVER,SIDE,L.H,RED | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,R.H,RED | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X65 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,3MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
