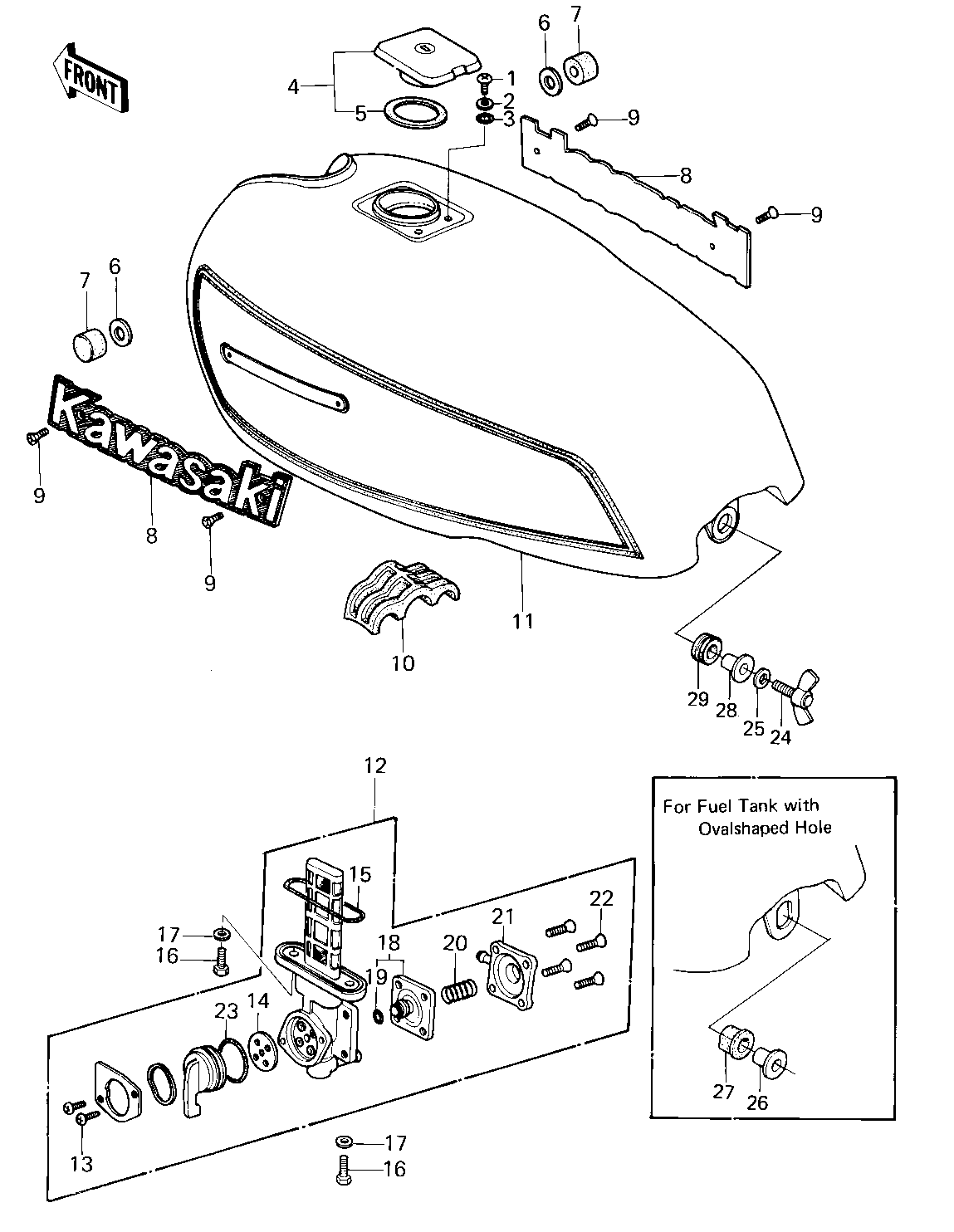

1980 KZ750-E1 - FUEL TANK ('80 KZY 50-E1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW PAN HEAD 5X10 | 1 | 220B0510 | 2 | ||
| WASHER,PLAIN | 2 | 92022-1038 | 2 | ||
| "0" RING | 3 | 92055-1023 | 2 | ||
| CAP ASSY TANK | 4 | 51048-1018 | 1 | ||
| GASKET,FUEL TANK CAP | 5 | 11009-1051 | 1 | ||
| WASHER-PL-10.5X26X2.3 | 6 | 92022-044 | 2 | ||
| DAMPER RUBBER,FL TANK | 7 | 92075-125 | 2 | ||
| EMBLEM,FUEL TANK | 8 | 56014-1037 | 2 | ||
| SCREW-CSK-CROS | 9 | 221C0306 | 4 | ||
| DAMPER,FUEL TANK | 10 | 92075-1245 | 1 | ||
| TANK-FUEL,L.DARK RED | 11 | 51001-1049-7Y | 1 | ||
| TAP ASSY,FUEL | 12 | 51023-1029 | 1 | ||
| SCREW PAN HEAD 3X8 | 13 | 220B0308 | 2 | ||
| GASKET,TAP VALVE | 14 | 11009-1194 | 1 | ||
| "0" RING | 15 | 51039-010 | 1 | ||
| BOLT,6X20,FUEL TAP | 16 | 92001-1091 | 2 | ||
| WASHER-PLAIN | 17 | 92022-183 | 2 | ||
| DIAPHRAGM ASSY,TAP | 18 | 43028-1015 | 1 | ||
| "O" RING,4MM | 19 | 670B1504 | 1 | ||
| SPRING,TAP | 20 | 92081-1171 | 1 | ||
| COVER ASSY,TAP | 21 | 16146-1005 | 1 | ||
| SCREW-CSK-CROS,4X14 | 22 | 221B0414 | 4 | ||
| "0" RING,TAP LEVER | 23 | 92055-1027 | 1 | ||
| BOLT,CARRIER FITTING | 24 | 92001-1054 | 1 | ||
| WASHER SEAL PLATE | 25 | 92022-101 | 1 | ||
| COLLAR,FUEL TANK FITT | 26 | 92027-1134 | 1 | ||
| DAMPER,FUEL TANK,FITT | 27 | 92075-1116 | 1 | ||
| COLLAR,ENGINE HEAD | 28 | 92027-1116 | 1 | ||
| DAMPER RUBBER,MUFFLER | 29 | 92075-1086 | 1 |
| SCREW PAN HEAD 5X10 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP ASSY TANK | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL TANK CAP | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PL-10.5X26X2.3 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,FL TANK | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| EMBLEM,FUEL TANK | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-FUEL,L.DARK RED | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAP ASSY,FUEL | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 3X8 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,TAP VALVE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20,FUEL TAP | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM ASSY,TAP | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,4MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,TAP | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER ASSY,TAP | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS,4X14 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| "0" RING,TAP LEVER | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,CARRIER FITTING | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SEAL PLATE | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FUEL TANK FITT | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK,FITT | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,ENGINE HEAD | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,MUFFLER | |
| REF # | 29 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
