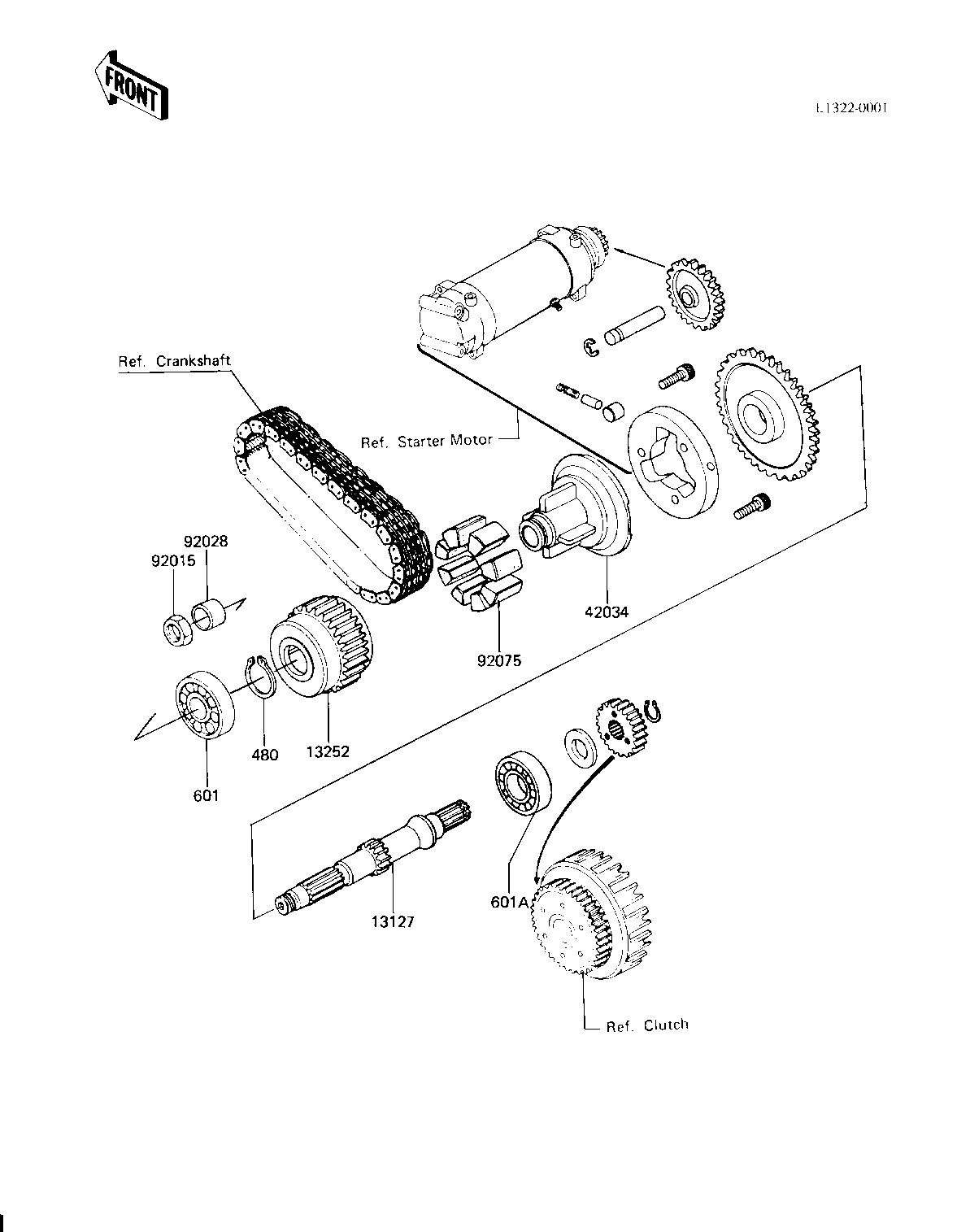

1981 LTD - SECONDARY SHAFT ('81-'83 H2/H3/H4)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,SECONDARY | 13127 | 13127-1019 | 1 | ||
| COUPLING,OUTER | 13252 | 13252-001 | 1 | ||
| COUPLING,INNER | 42036 | 13253-001 | 1 | ||
| NUT 18MM | 92015 | 92015-019 | 1 | ||
| BUSHING,SECONDARY | 92028 | 92028-1037 | 1 | ||
| DAMPER RUBBER | 92075 | 92075-1227 | 8 | ||
| CIRCLIP 28MM | 480 | 480J2800 | 1 | ||
| BEARING BALL #6205 | 601 | 601B6205 | 1 | ||
| BEARING BALL #6305 | 601A | 601B6305 | 1 |
| SHAFT,SECONDARY | |
| REF # | 13127 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING,OUTER | |
| REF # | 13252 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COUPLING,INNER | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 18MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,SECONDARY | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 28MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6205 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6305 | |
| REF # | 601A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
