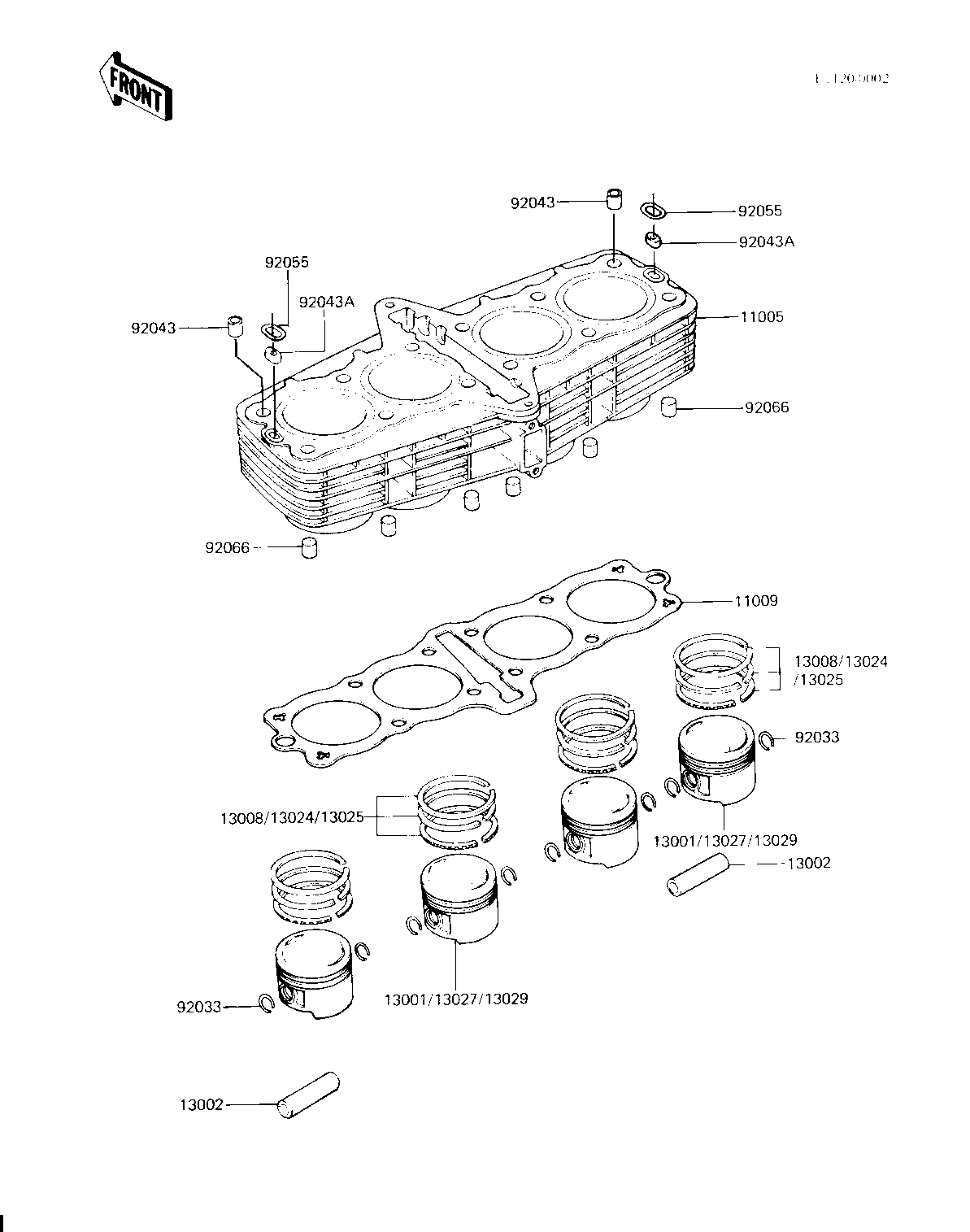

1981 LTD - CYLINDER/PISTONS (KZ750-H2/H3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER-ENGINE,SILVE | 11005 | 11005-1124 | 1 | ||
| GASKET,CYLINDER BASE | 11009 | 11060-1144 | 1 | ||
| PISTON-ENGINE,STD | 13001 | 13001-1059 | 4 | ||
| PIN-PISTON | 13002 | 13002-1001 | 4 | ||
| RING SET,PISTON STD | 13008 | 13008-5031 | 4 | ||
| RING SET,PISTON,0.040 | 13024 | 13024-5014 | 4 | ||
| RING SET,PISTON 0.020 | 13025 | 13025-5014 | 4 | ||
| PISTON,0.040" O.S. | 13027 | 13027-1022 | 4 | ||
| PISTON,0.020" O.S. | 13029 | 13029-1021 | 4 | ||
| CIRCLIP PISTON PIN | 92033 | 92036-005 | 8 | ||
| PIN,11X14X12.3 | 92043 | 92043-1266 | 2 | ||
| PIN,OIL LINE | 92043A | 92043-1210 | 2 | ||
| RING-O | 92055 | 92055-1147 | 2 | ||
| PLUG,DAMPER | 92066 | 92066-1016 | 6 |
