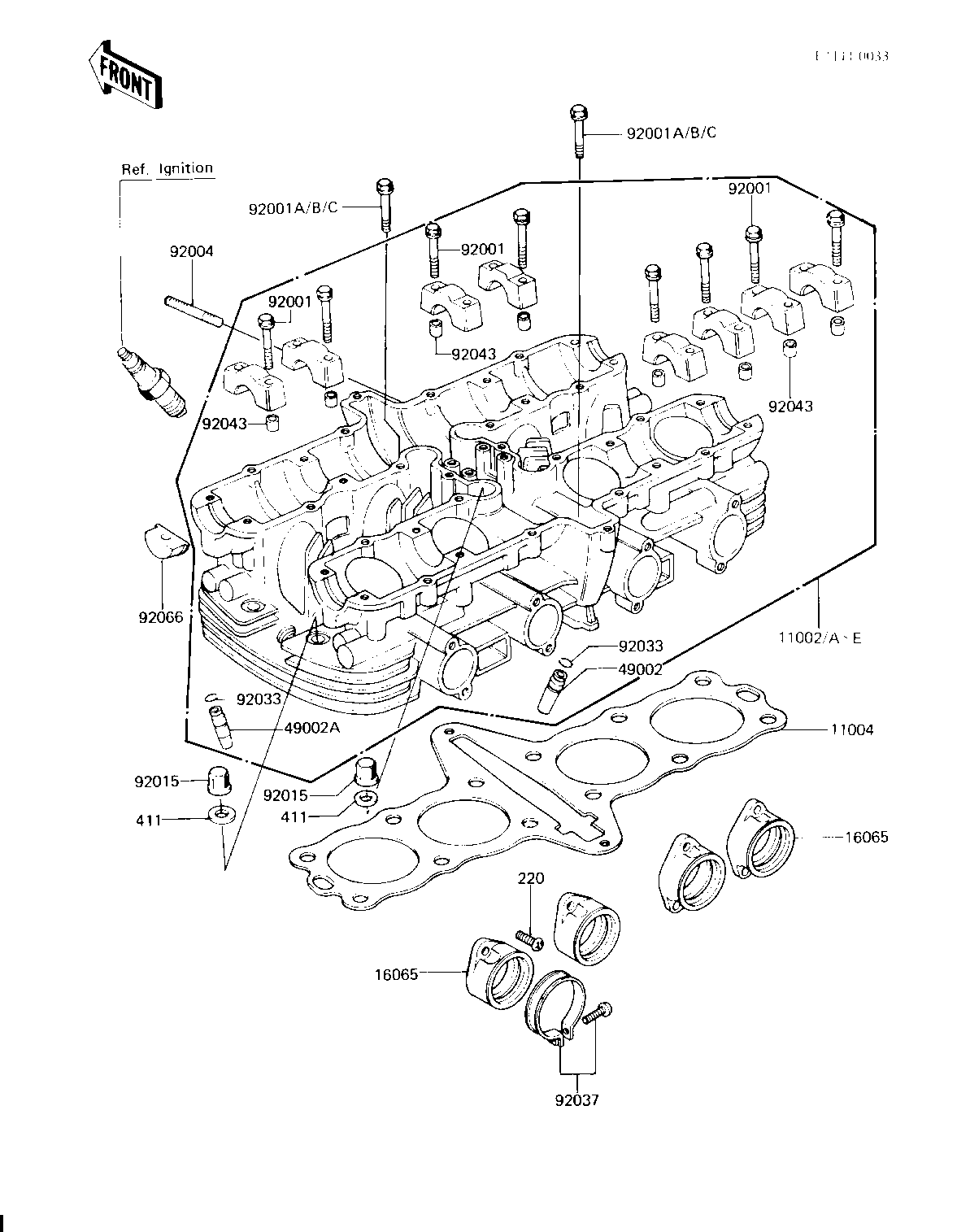

1981 LTD - CYLINDER HEAD (KZ750-H2/H3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-ASSY-CYLINDER,SL 11002 11002-1082 1 US
11002-1082 (Canada) 11002A 11002-1069 1 CN
HEAD-ASSY-CYLINDER,SL 11002B 11002-1082 1
HEAD-ASSY-CYLINDER,SL 11002C 11002-1082 1
HEAD-ASSY-CYLINDER,SL 11002D 11002-1082 1 CN
11002-1082 (Canada) 11002E 11002-1083 1 CN
GASKET-HEAD,CYLINDER 11004 11004-1107 1
HOLDER-CARBURETOR 16065 16065-1132 4
GUIDE,INLET VALVE 49002 12013-009 4
GUIDE,EXHAUST VALVE 49002A 49002-1002 4
BOLT,FLANGED,6X38 92001 92001-1105 16
BOLT,FLANGED,8X43 92001A 92001-1445 2 ( - KZ750EE040615)
BOLT,FLANGED,8X43 92001C 92001-1445 2 (KZ750EE040616 - )
STUD,6X27 92004 92004-066 8
NUT,CYLINDER HEAD 92015 92015-076 12
CIRCLIP-VALVE 92033 92036-023 8
CLAMP-INLET PIPE 92037 92037-061 4
PIN-DOWEL 92043 92042-007 16
PLUG,CAMSHAFT,11.35X1 92066 92066-1111 4
SCREW PAN HEAD 6X16 220 220B0616 8
WASHER PLAIN 10MM 411 411B1000 12
