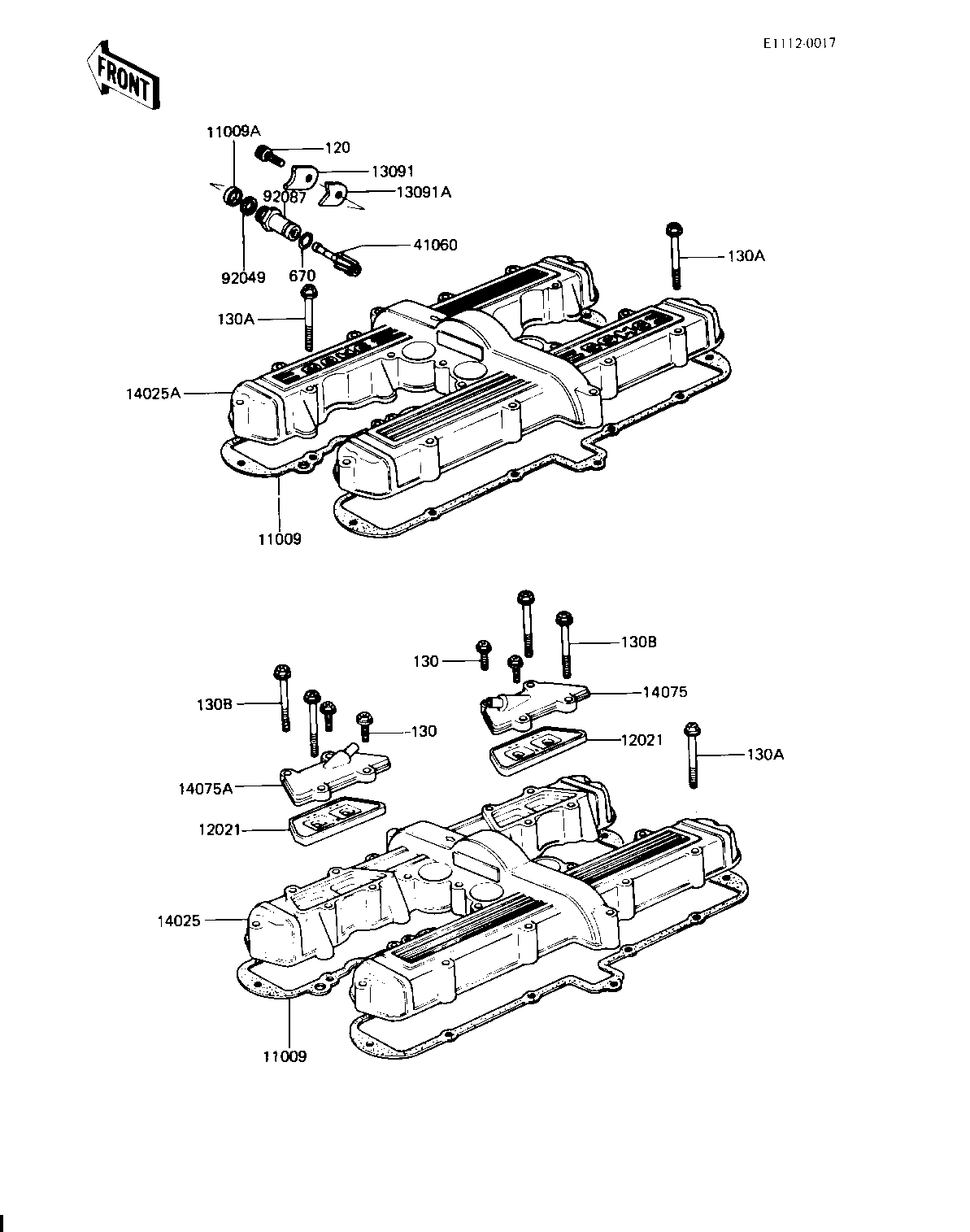

1981 LTD - CYLINDER HEAD COVER (KZ750-H2/H3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CYLINDER HEAD | 11009 | 11009-1237 | 1 | ||
| GASKET,TACHOMETER GER | 11009A | 92065-103 | 1 | ||
| VALVE ASSY REED | 12021 | 12021-1003 | 2 | US | |
| HOLDER,TACHOMETER2.3T | 13091 | 13091-1008 | 1 | ||
| HOLDER,TACHOMETR,3.2T | 13091A | 13091-1009 | 1 | ||
| COVER,CYLINDER HEAD,S | 14025 | 14025-1329 | 1 | US | |
| COVER CYLINDER HEAD (Canada) | 14025A | 14025-1330 | 1 | CN | |
| CAP-ASSY,REED VALVE,R | 14075 | 14075-5016 | 1 | US | |
| CAP-ASSY,REED VALVE,L | 14075A | 14075-5017 | 1 | US | |
| GEAR,TACHOMETER,10T | 41060 | 13223-011 | 1 | ||
| OIL SEAL | 92049 | 92050-075 | 1 | ||
| GUIDE,TACHOMETER GEAR | 92087 | 92087-010 | 1 | ||
| BOLT,6X14 | 120 | 120P0614 | 1 | ||
| BOLT,FLANGED,6X20 | 130 | 130G0620 | 4 | US | |
| BOLT,FLANGED,6X45 | 130A | 130G0645 | 20 | US | |
| BOLT,FLANGED,6X65 | 130B | 130G0665 | 4 | US | |
| "0" RING,10MM | 670 | 670D1510 | 1 |
| GASKET,CYLINDER HEAD | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,TACHOMETER GER | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE ASSY REED | |
| REF # | 12021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | US |
| HOLDER,TACHOMETER2.3T | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,TACHOMETR,3.2T | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CYLINDER HEAD,S | |
| REF # | 14025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| COVER CYLINDER HEAD (Canada) | |
| REF # | 14025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CN |
| CAP-ASSY,REED VALVE,R | |
| REF # | 14075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| CAP-ASSY,REED VALVE,L | |
| REF # | 14075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | US |
| GEAR,TACHOMETER,10T | |
| REF # | 41060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,TACHOMETER GEAR | |
| REF # | 92087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X20 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | US |
| BOLT,FLANGED,6X45 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | US |
| BOLT,FLANGED,6X65 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | US |
| "0" RING,10MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
