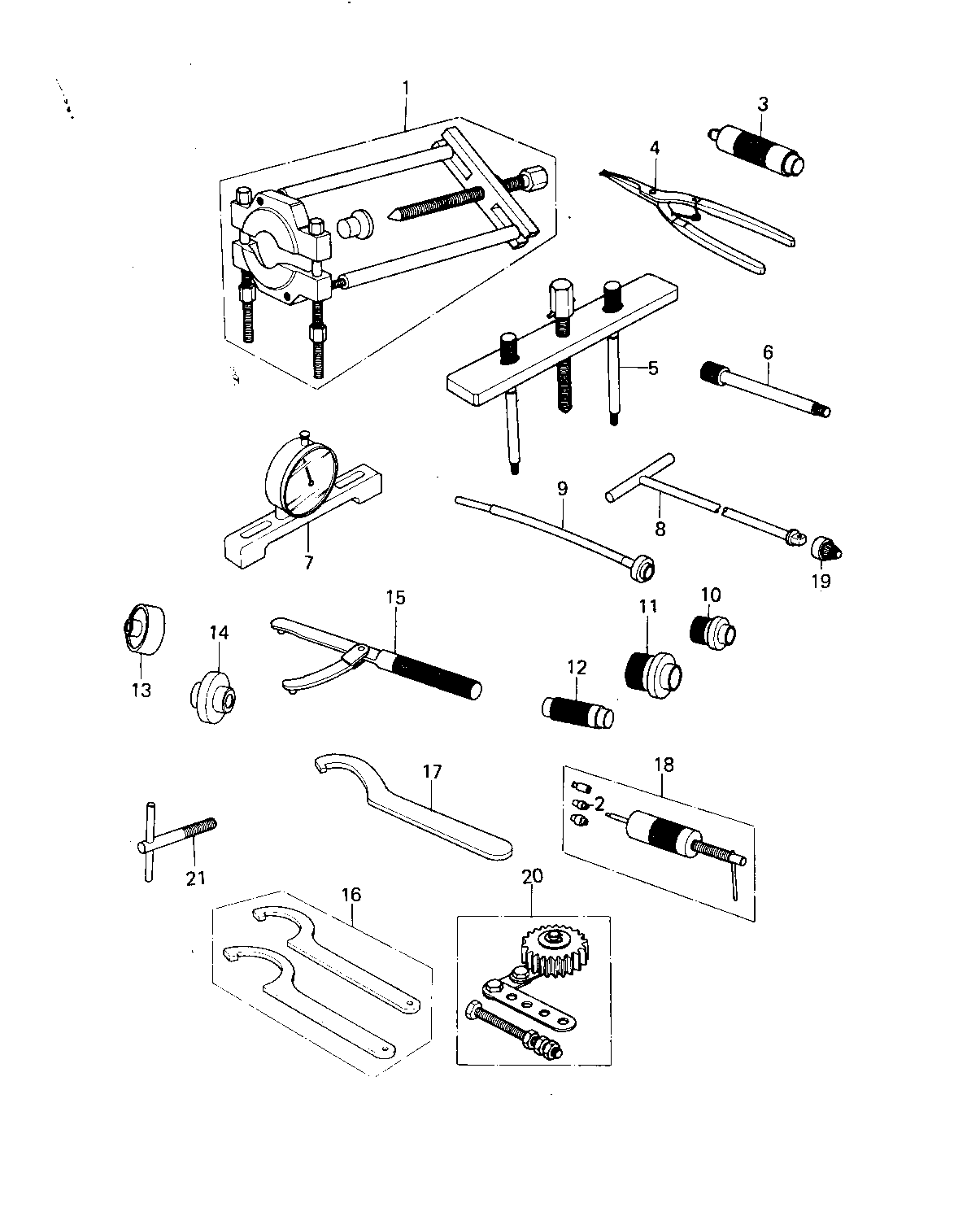

1980 KX125 - SPECIAL SERVICE TOOLS ('80 A6)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PULLER,STEM BEARING | 1 | 57001-135 | 1 | ||
| ADAPTER B, PIN PULLER | 2 | 57001-913 | 1 | ||
| *** N.L.A.*** (Canada) | 3 | 57001-139 | 1 | ||
| PLIERS,CIRCLIP,OUTSID | 4 | 57001-144 | 1 | ||
| 57001-1098 (Canada) | 5 | 57001-153 | 1 | ||
| ADAPTER-CRNKCSE SPLIT | 6 | 57001-157 | 1 | ||
| FINDER-TDC | 7 | 57001-160 | 1 | ||
| HANDLE,FORK CLY HOLDR | 8 | 57001-183 | 1 | ||
| GAUGE,FUEL LEVEL | 9 | 57001-202 | 1 | ||
| GUIDE,OIL SEAL | 10 | 57001-263 | 1 | ||
| GUIDE,SHIFT OIL SEAL | 11 | 57001-264 | 1 | ||
| 57001-1129 (Canada) | 12 | 57001-286 | 1 | ||
| 57001-1129 (Canada) | 13 | 57001-290 | 1 | ||
| *** N.L.A.*** (Canada) | 14 | 57001-296 | 1 | ||
| 57001-1343 (Canada) | 15 | 57001-306 | 1 | ||
| WRENCH,HOOK | 16 | 57001-1083 | 1 | ||
| 57001-1100 (Canada) | 17 | 57001-321 | 1 | ||
| PULLER-PISTON PIN | 18 | 57001-910 | 1 | ||
| ADAPTER,FORK CYL HLDR | 19 | 57001-1011 | 1 | ||
| HOLDER,GEAR | 20 | 57001-1015 | 1 | ||
| 57001-1216 (Canada) | 21 | 57001-1016 | 1 |
| PULLER,STEM BEARING | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADAPTER B, PIN PULLER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| *** N.L.A.*** (Canada) | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLIERS,CIRCLIP,OUTSID | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 57001-1098 (Canada) | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADAPTER-CRNKCSE SPLIT | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FINDER-TDC | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HANDLE,FORK CLY HOLDR | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GAUGE,FUEL LEVEL | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,OIL SEAL | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,SHIFT OIL SEAL | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 57001-1129 (Canada) | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 57001-1129 (Canada) | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| *** N.L.A.*** (Canada) | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 57001-1343 (Canada) | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WRENCH,HOOK | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 57001-1100 (Canada) | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PULLER-PISTON PIN | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADAPTER,FORK CYL HLDR | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,GEAR | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 57001-1216 (Canada) | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
