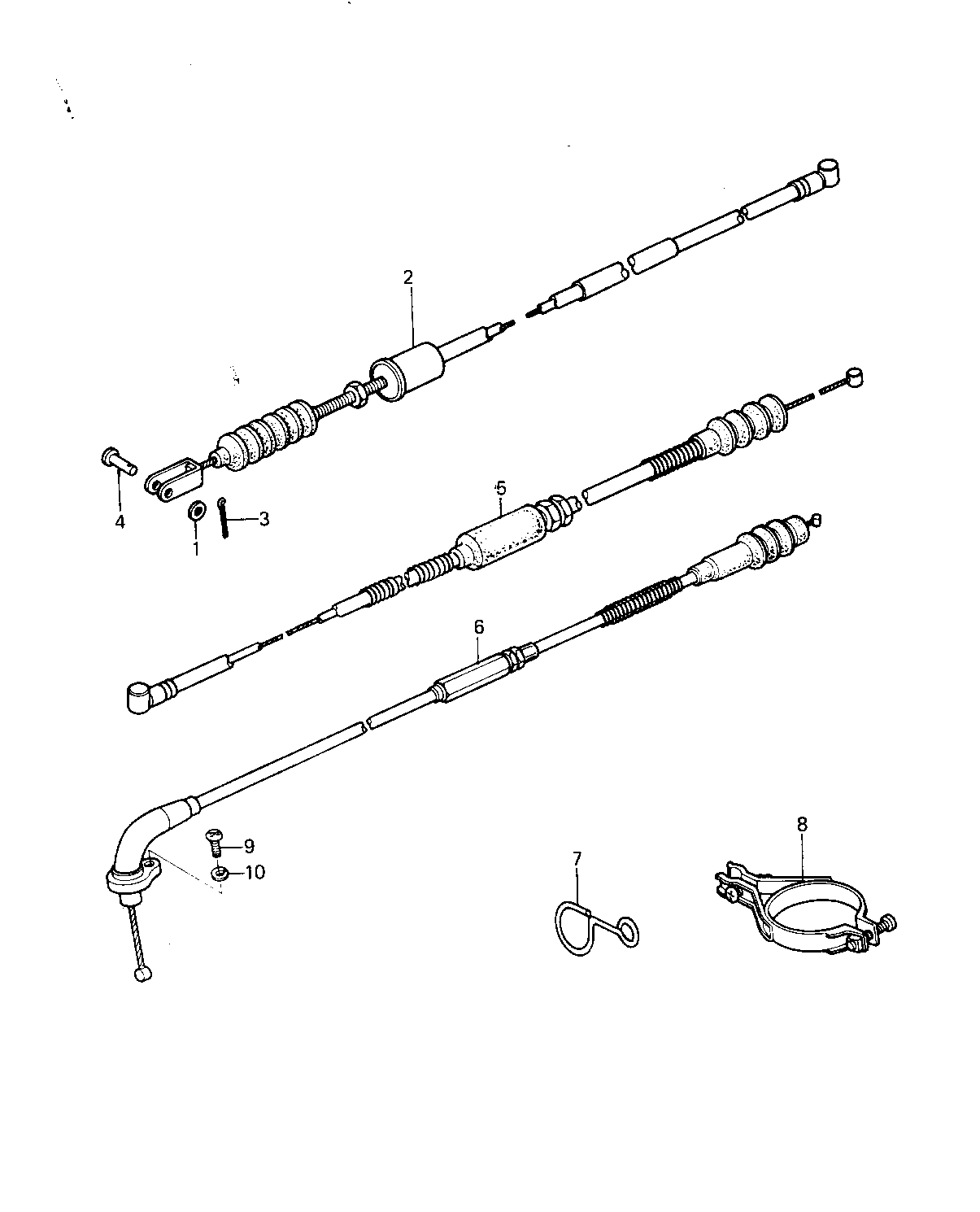

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER PLAIN 6MM | 1 | 410B0600 | 1 | ||
| CABLE,FRONT BRAKE | 2 | 54005-1016 | 1 | ||
| PIN COTTER 2.0X15 | 3 | 550D2015 | 1 | ||
| PIN-BRAKE ROD FITTING | 4 | 92043-064 | 1 | ||
| CABLE,CLUTCH | 5 | 54011-1068 | 1 | ||
| CABLE,THROTTLE | 6 | 54012-1059 | 1 | ||
| CLAM,CABLE | 7 | 92037-1064 | 1 | ||
| CLAMP,CABLE | 8 | 92037-1187 | 1 | ||
| SCREW PAN HEAD 5X10 | 9 | 220B0510 | 1 | ||
| WASHER SPRING 5MM | 10 | 461F0500 | 1 |
