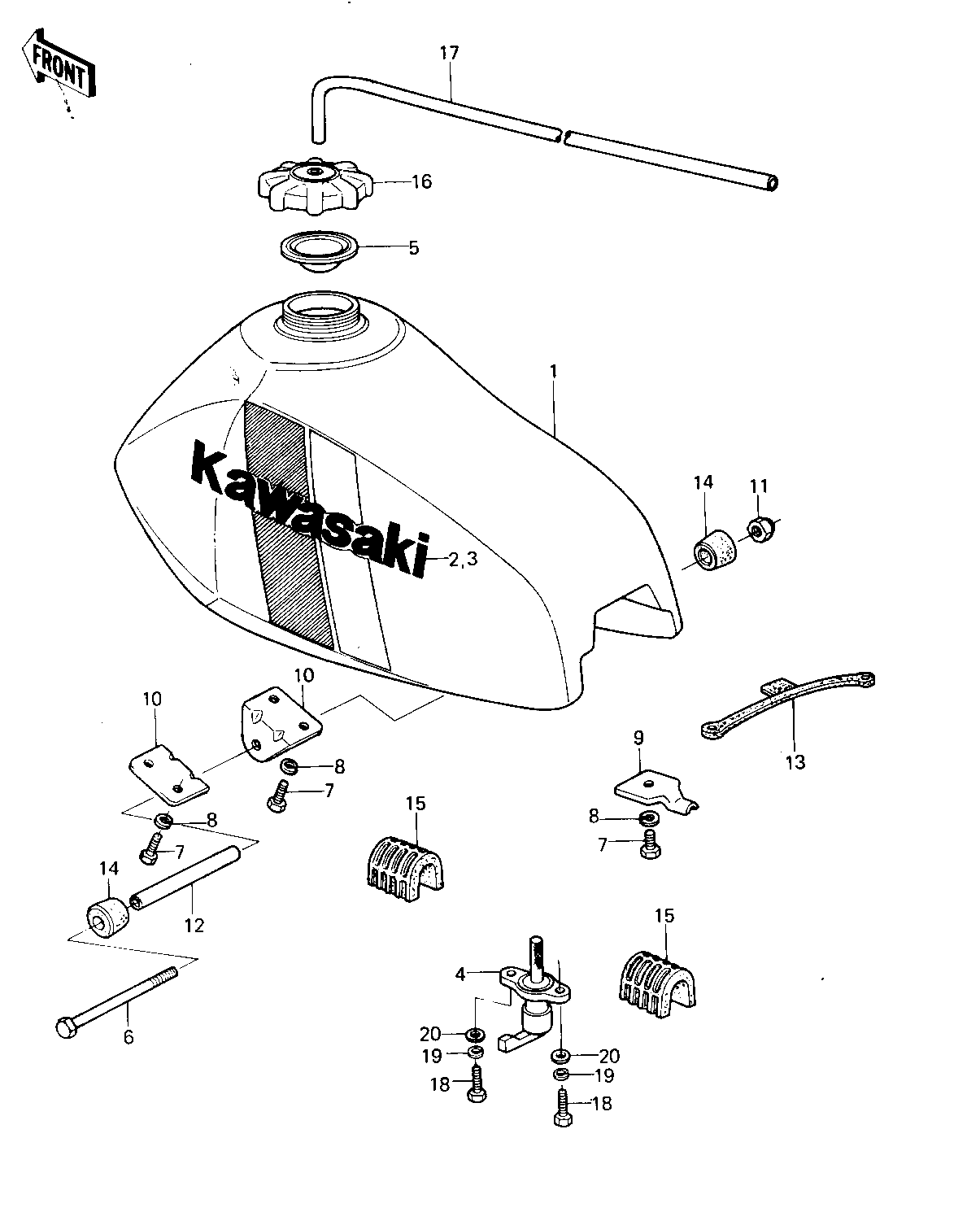

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL,L.GREEN | 1 | 51001-5108-6W | 1 | ||
| EMBLEM,FUEL TANK,L.H | 2 | 56027-1853 | 1 | ||
| EMBLEM,FUEL TANK,R.H | 3 | 56027-1854 | 1 | ||
| TAP-ASSY-FUEL | 4 | 51023-1115 | 1 | ||
| GASKET,FUEL TANK | 5 | 11009-1452 | 1 | ||
| BOLT-UPSET,6X105 | 6 | 112G06105 | 1 | ||
| BOLT-UPSET,6X12 | 7 | 112G0612 | 5 | ||
| WASHER SPRING 6MM | 8 | 461F0600 | 5 | ||
| BRACKET,FUEL TANK | 9 | 32052-1009 | 1 | ||
| BRACKET,FUEL TANK FIT | 10 | 32052-1036 | 2 | ||
| NUT | 11 | 92019-008 | 1 | ||
| COLLAR,FUEL TANK FITT | 12 | 92027-1228 | 1 | ||
| BAND,FUEL TANK | 13 | 92072-042 | 1 | ||
| DAMPER,FUEL TANK FITT | 14 | 92075-1220 | 2 | ||
| DAMPER,FUEL TANK | 15 | 92075-1221 | 2 | ||
| CAP-TANK,FUEL | 16 | 51049-1006 | 1 | ||
| TUBE,5X5.6X280 | 17 | 92059-1109 | 1 | ||
| BOLT-UPSET | 18 | 112G0618 | 2 | ||
| WASHER SPRING 6MM | 19 | 461F0600 | 2 | ||
| WASHER PLAIN 6MM | 20 | 411B0600 | 2 |
