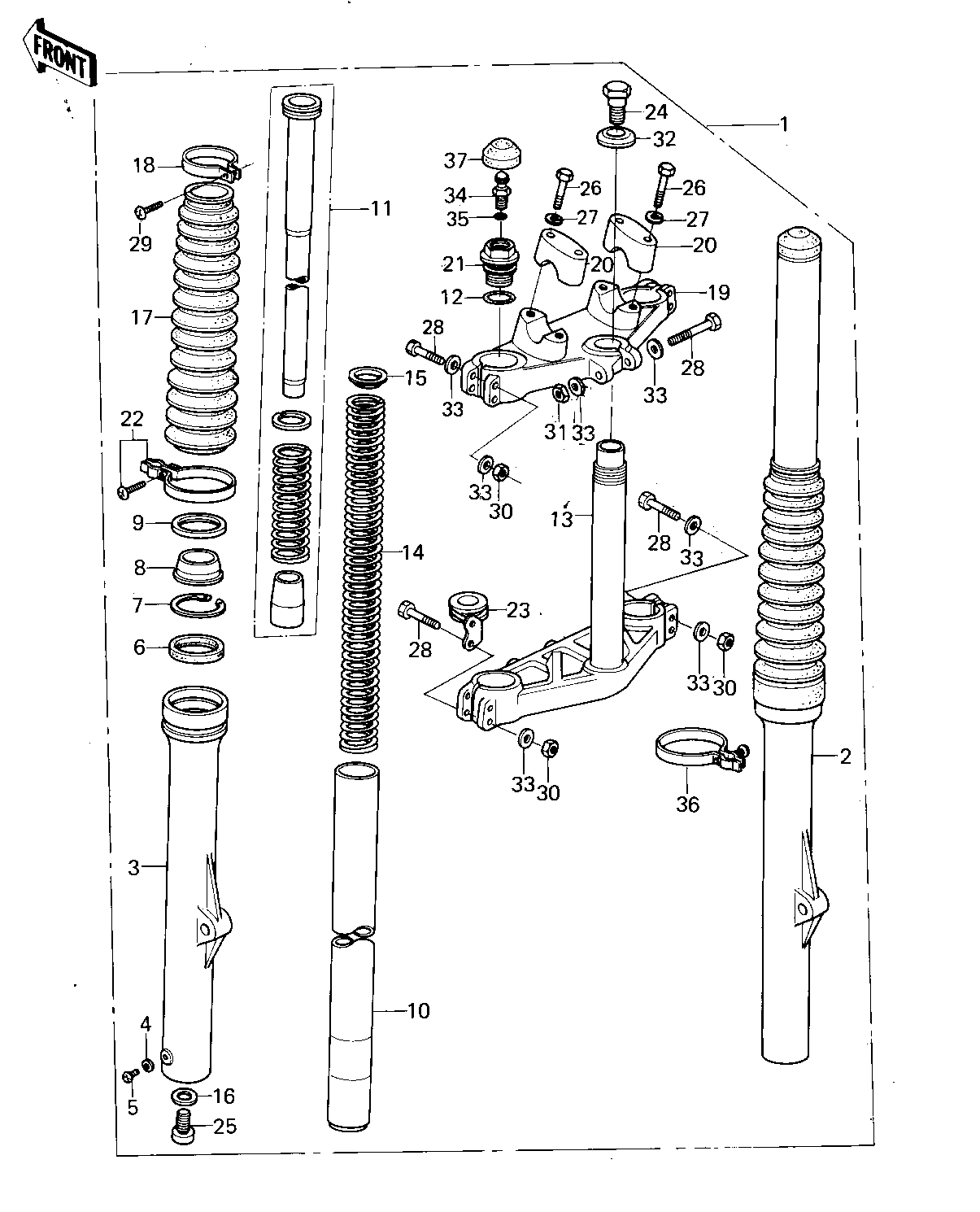

1980 KX125 - FRONT FORK ('80 A6)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1111 1
TUBE,RH,FORK OUTER 2 44006-1038 1
TUBE,LH,FORK OUTER 3 44005-1038 1
GASKET FORK DRAIN PLG 4 44045-002 2
SCREW PAN HEAD 4X8 5 220B0408 2
OIL SEAL,FORK OUT TUB 6 92049-1042 2
SNAP RING,FORK OUTER 7 92033-1047 2
DUST SHIELD,FORK OUTR 8 92093-1035 2
CASE,DUST SHIELD 9 32099-1013 2
TUBE,FORK INNER 10 44013-1029 2
CYLINDER-FORK 11 44022-1033 2
"0" RING,FORK TOP CAP 12 92055-1050 2
STEM,STEERING 13 44037-1054 1
SPRING,FORK INNER 14 44026-1041 2
GUIDE,FORK SPRING 15 44028-1003 2
GASKET,FORK CYLINDER 16 11009-1127 2
BOOT,FORK,L.GREEN 17 49006-1027 2
BAND,BOOT 18 92072-1046 2
HEAD,STEERING STEM 19 44039-1031 1
HOLDER,HANDLE BAR 20 46012-1003 2
CAP,FORK TOP 21 44029-1008 2
CLAMP,BOOT,L.H 22 92072-1026 1
CLAMP, CABLE 23 92072-1027 1
BOLT,FORK TOP 24 44041-065 1
BOLT,FORK CYLINDER 25 92001-1309 2
BOLT,FLANGED,8X35 26 92001-1577 4
WASHER SPRING 8MM 27 461F0800 4
BOLT FLANGED 8X55 28 92001-1398 9
SCREW-PAN-CROS 29 220B0420 2
NUT 8MM 30 311G0800 8
NUT,LOCK,8MM 31 92015-1124 1
WASHER 32 44043-052 1
WASHER PLAIN 8MM 33 410B0800 16
VALVE ASSY,AIR 34 16126-1003 2
"0" RING,AIR VALVE 35 92055-1018 2
CLAMP,BOOT,R.H 36 92072-1025 1
CAP,RUBBER,FORK TOP 37 44029-1009 2
