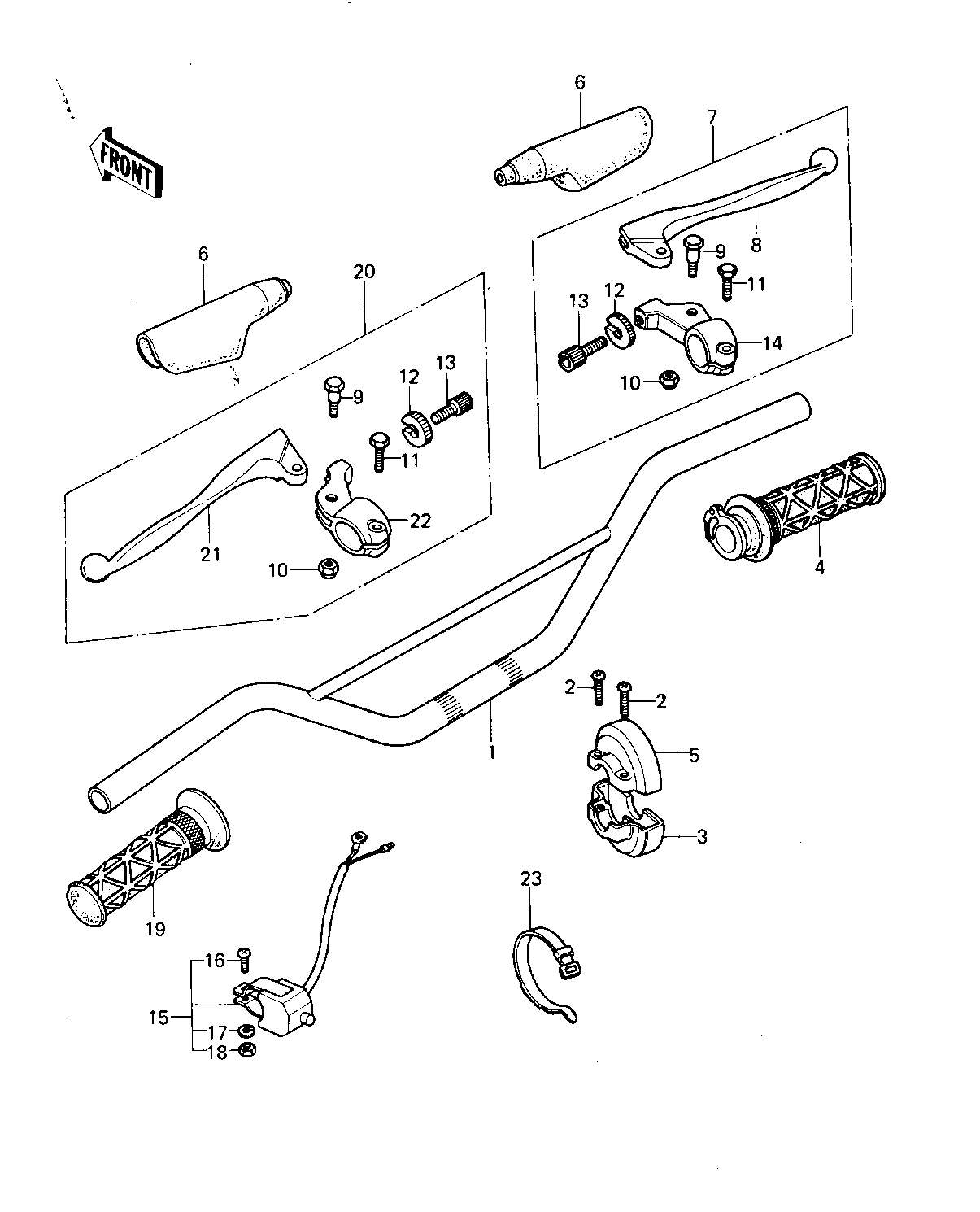

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46003-1054 1
SCREW PAN HEAD 5X20 2 220B0520 2
HOUSING CONTROL,R.H. 3 32099-1011 1
GRIP-ASSY 4 46019-1012 1
CASE,R.H,GRIP,UPPER 5 32099-1014 1
DUST COVER 6 46071-003 2
LEVER ASSY,FRONT BRAK 7 46076-1003 1
FRONT BRAKE LEVER 8 46058-018 1
BOLT,HEX HEAD,6MM 9 92001-140 2
NUT 10 92019-008 2
BOLT-UPSET 11 112N0620 2
NUT,CABLE ADJUST LOCK 12 46056-006 2
SCREW,CABLE ADJUST 13 46055-009 2
HOLDER,F.BRAKE LEVER 14 46060-010-21 1 F. BLACK
SWITCH,ASSY,ENG STOP 15 27010-1018 1
SCREW PAN HEAD 3X14 16 220E0314A 1
WASHER SPRING 3MM 17 461F0300 1
NUT-HEX 18 311B0300 1
GRIP 19 46075-1015 1
LEVER ASSY,CLUTCH 20 46076-1004 1
LEVER, CLUTCH 21 46092-021 1
HOLDER,CLUTCH LEVER 22 46094-014-21 1 F. BLACK
BAND,SHORT 23 92072-030 2
