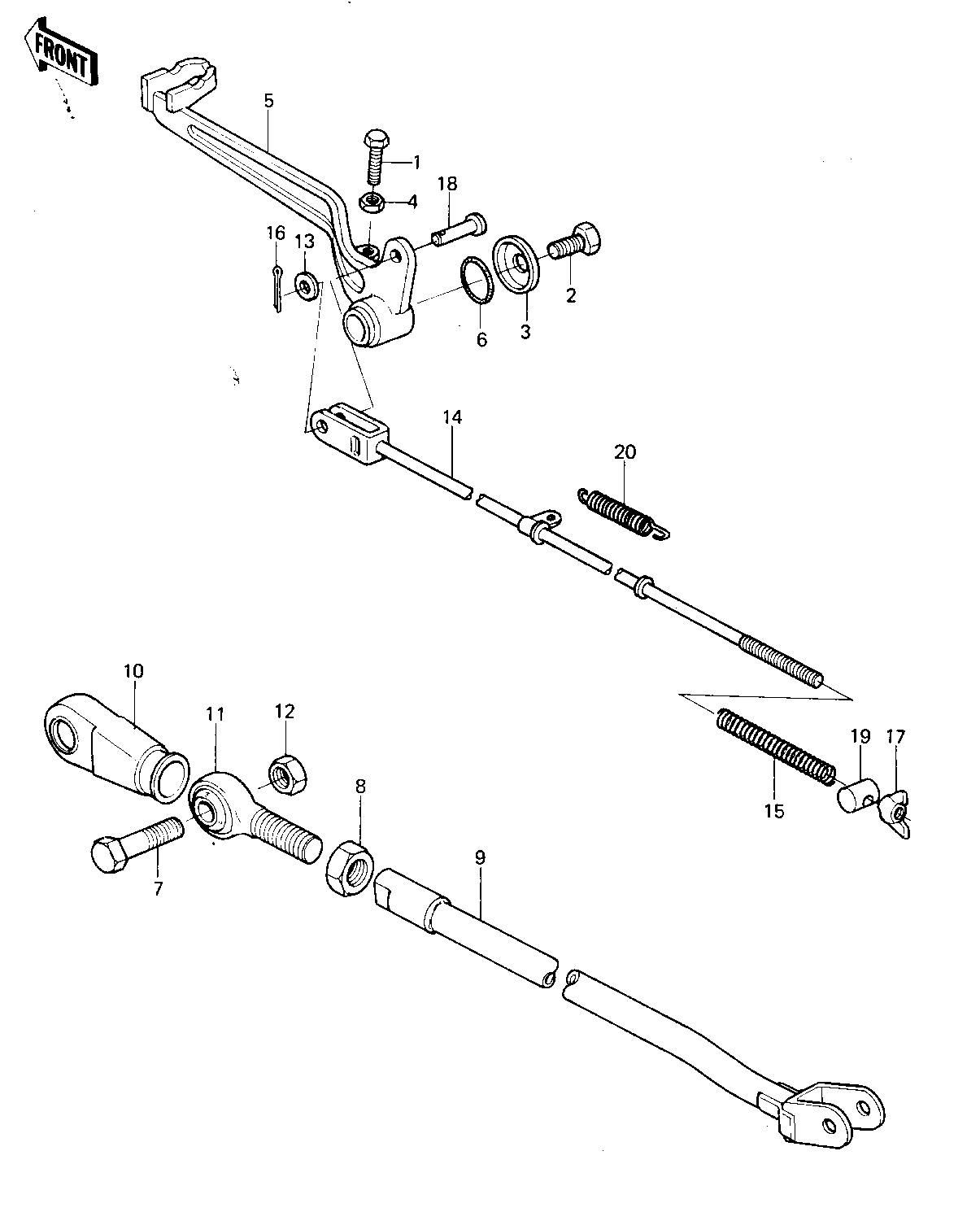

1980 KX125 - BRAKE PEDAL/TORQUE LINK ('80 A6)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET | 1 | 112G0625 | 1 | ||
| BOLT-UPSET,6X12 | 2 | 112G0612 | 1 | ||
| CAP,BRAKE PEDAL FITT | 3 | 11012-1116 | 1 | ||
| NUT 6MM | 4 | 311B0600 | 1 | ||
| PEDAL,BRAKE | 5 | 43001-1043 | 1 | ||
| "0" RING,18MM | 6 | 670B2018 | 1 | ||
| BOLT,HEX HEAD,12X35 | 7 | 113P1235A | 1 | ||
| NUT-HEX-FINE,12MM | 8 | 315B1200 | 1 | ||
| TORQUE LINK,RR BRAKE | 9 | 43007-1018 | 1 | ||
| BOOT,BALL JOINT | 10 | 49006-1035 | 1 | ||
| JOINT,BALL,TORQUE RNK | 11 | 59266-1003 | 1 | ||
| NUT-LOCK,12MM | 12 | 92019-009 | 1 | ||
| WASHER PLAIN 6MM | 13 | 410B0600 | 1 | ||
| ROD,BRAKE | 14 | 43011-1019 | 1 | ||
| SPRING,BRAKE ROD | 15 | 43012-001 | 1 | ||
| PIN COTTER 2.0X15 | 16 | 550D2015 | 1 | ||
| NUT,WING,6M/M | 17 | 92015-4004 | 1 | ||
| PIN-BRAKE ROD FITTING | 18 | 92043-064 | 1 | ||
| PIN,BRAKE | 19 | 92043-1024 | 1 | ||
| SPRING RETURN | 20 | 92081-1059 | 1 |
