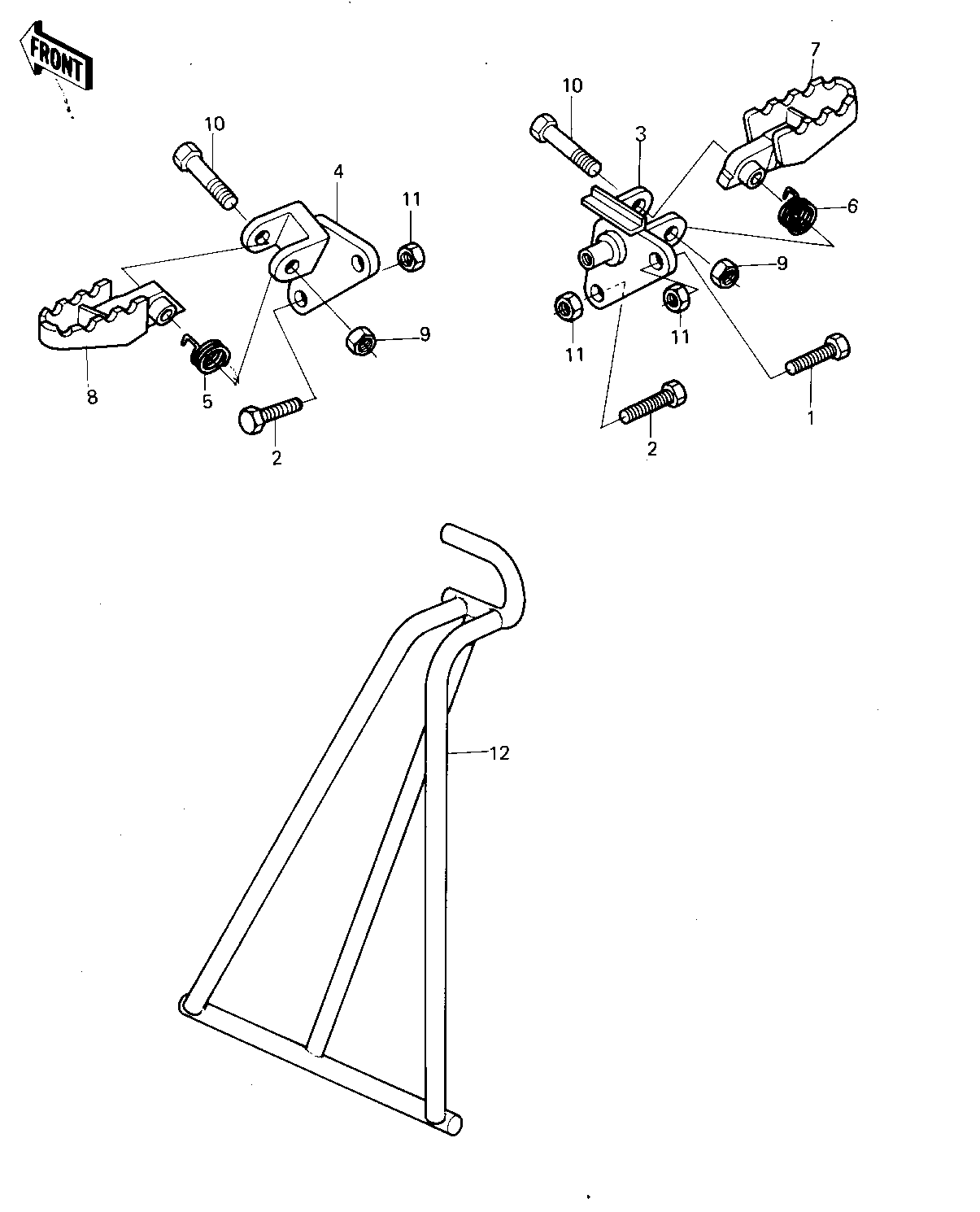

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,8X50 1 92001-1439 1
BOLT,HEX HEAD,8X50 2 110P0850 2
HOLDER-STEP,RH 3 34003-1088 1
HOLDER,FOOTRST STEP,L 4 34003-1054 1
SPRING,L.H,FOOTREST 5 92081-1254 1
SPRING,R.H,FOOTREST 6 92081-1255 1
STEP,FOOTREST,R.H 7 34028-1027 1
STEP,FOOTREST,L.H 8 34028-1026 1
NUT,LOCK,10MM 9 92019-021 2
BOLT,HEX HEAD 10X40 10 92001-1028 2
NUT,LOCK,8MM 11 92015-1124 3
STAND-SIDE 12 34024-1037 1
