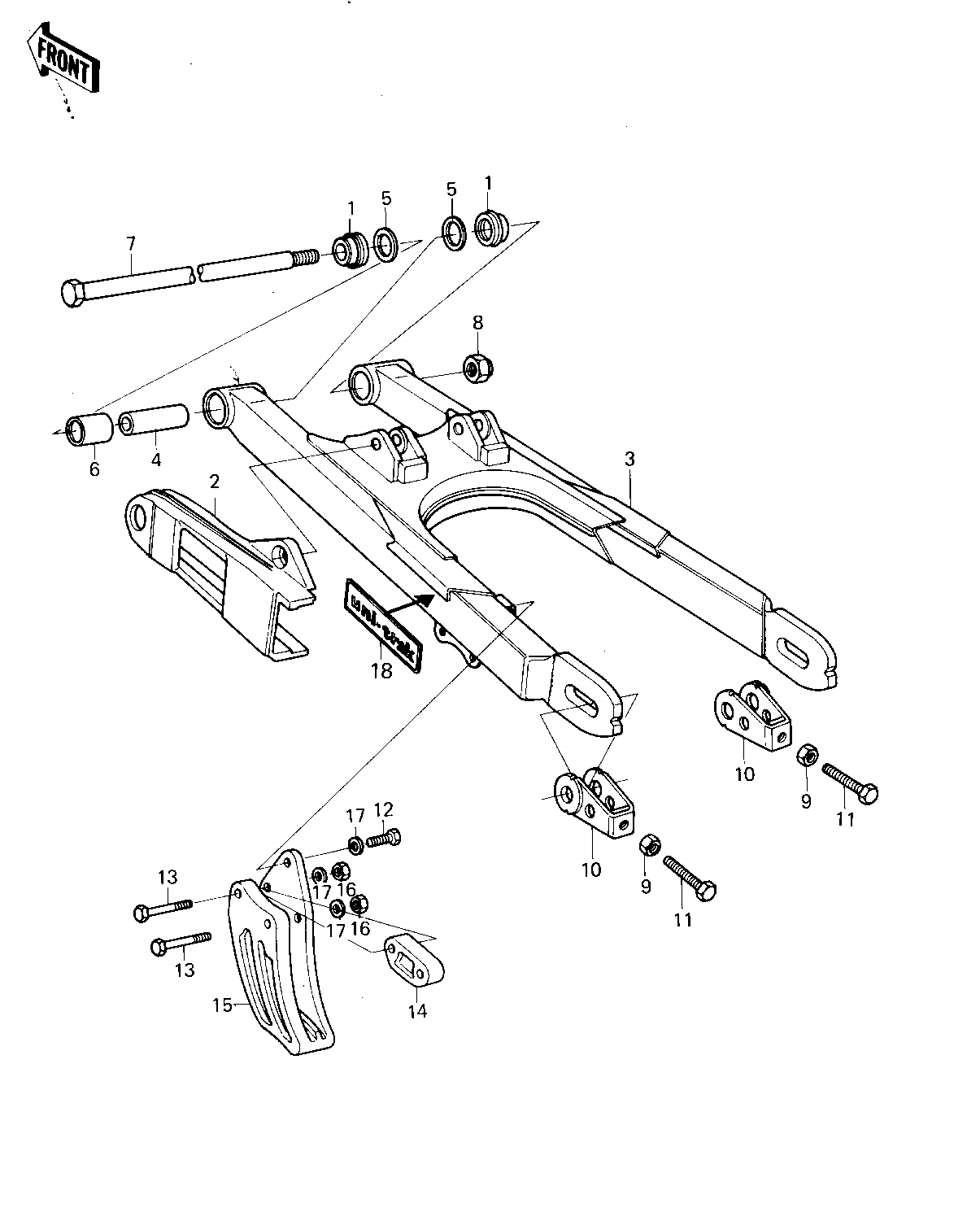

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 1 11012-1099 4
GUIDE,CHAIN,FRONT 2 12053-1046 1
ARM,SWING 3 33001-1047 1
SLEEVE,SWING ARM 4 42036-1031 2
SHIM,SWING ARM 5 92025-1116 4
BRG,NEEDLE,HMK2030 6 92046-1031 2
SHAFT-SWING ARM 7 33032-1020 1
NUT-LOCK,14MM 8 92019-011 1
NUT 8MM 9 318G0800 2
ADJUSTER,CHAIN 10 33040-1012 2
BOLT,CHAIN ADJUSTER 11 92001-1027 2
BOLT-UPSET,6X20 12 112G0620 1
BOLT-UPSET 13 112G0660 2
GUIDE,CHAIN,REAR 14 12053-1039 1
GUARD,CHAIN 15 55020-1038 1
NUT 16 92019-008 2
WASHER 6.5X20X1.6T 17 92022-125 3
MARK 18 56018-1157 2
