Parts Diagrams |

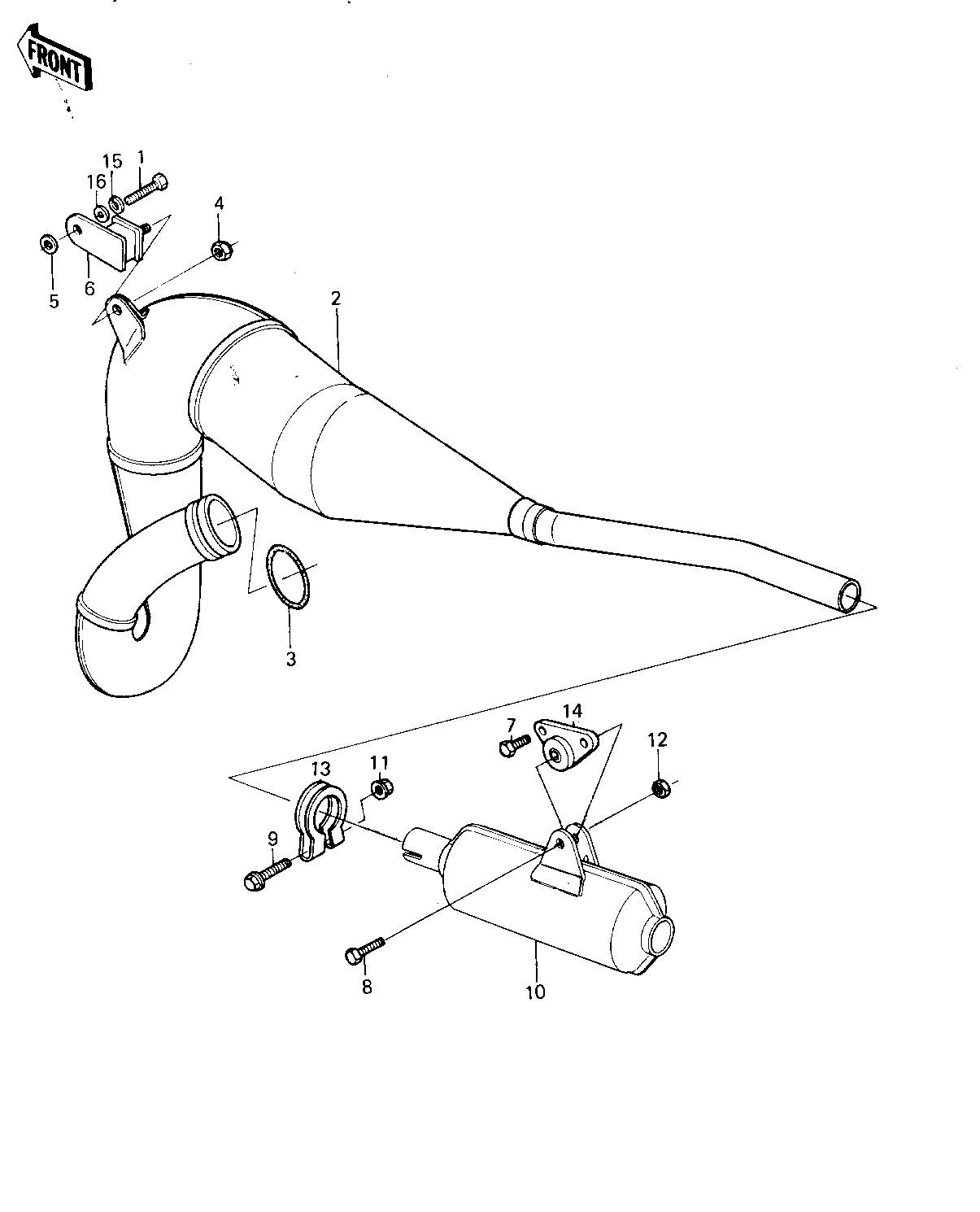

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SMALL-UPSET 8X25 | 1 | 115G0825 | 1 | ||
| KX125 A6 POWER PIPE | 2 | 18002-1143 | 1 | ||
| "0" RING,45M/M | 3 | 670E3045 | 1 | ||
| NUT,LOCK,8MM | 4 | 92015-1124 | 1 | ||
| WASHER 8.5X23.5X4.5 | 5 | 92022-218 | 1 | ||
| DAMPER,MUFFLER FITING | 6 | 92075-1060 | 1 | ||
| BOLT-UPSET | 7 | 112G0618 | 2 | ||
| BOLT-UPSET | 8 | 112G0625 | 1 | ||
| BOLT,FLANGED,6X35 | 9 | 130H0635 | 1 | ||
| MUFFLER ASSY | 10 | 18001-1105 | 1 | ||
| NUT-6MM | 11 | 92015-1078 | 1 | ||
| NUT | 12 | 92019-008 | 1 | ||
| CLAMP,MUFFLER | 13 | 92037-1169 | 1 | ||
| DAMPER RUBBER | 14 | 92075-1046 | 1 | ||
| WASHER SPRING 8MM | 15 | 461F0800 | 1 | ||
| WASHER PLAIN 8MM | 16 | 411B0800 | 1 |
| BOLT-SMALL-UPSET 8X25 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KX125 A6 POWER PIPE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,45M/M | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 8.5X23.5X4.5 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MUFFLER FITING | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X35 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER ASSY | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,MUFFLER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
