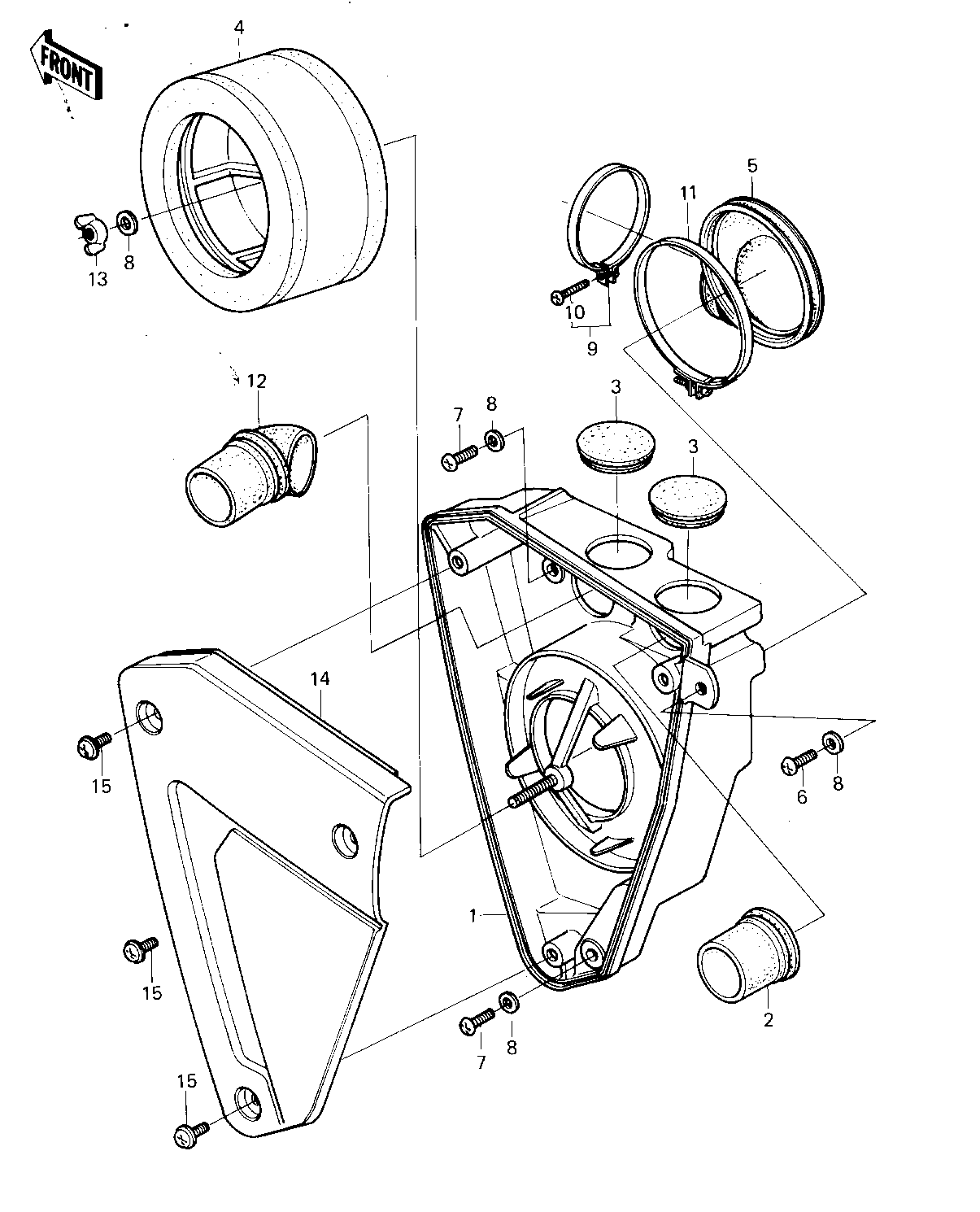

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BODY,AIR CLEANER | 1 | 11011-1047 | 1 | ||
| CAP,AIR CLEANER | 2 | 11012-1109 | 1 | ||
| CAP,AIR CLEANER | 3 | 11012-1111 | 2 | ||
| ELEMENT,AIR CLNR | 4 | 11013-1031 | 1 | ||
| DUCT | 5 | 14073-1066 | 1 | ||
| SCREW PAN HEAD 6X12 | 6 | 220B0612 | 1 | ||
| SCREW PAN HEAD 6X16 | 7 | 220B0616 | 2 | ||
| WASHER 6.5X20X1.6T | 8 | 92022-125 | 4 | ||
| CLAMP | 9 | 92037-171 | 1 | ||
| SCREW-PAN-CROS | 10 | 220B0535 | 1 | ||
| CLAMP,AIR CLANER DUCT | 11 | 92037-1186 | 1 | ||
| CAP,AIR CLEANER | 12 | 11012-1123 | 1 | ||
| NUT,AIR CLEANER CAP | 13 | 92016-062 | 1 | ||
| COVER,AIR FILTER,F.BK | 14 | 14025-1192-21 | 1 | ||
| SCREW,6X14 | 15 | 92009-1287 | 3 |
| BODY,AIR CLEANER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR CLEANER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR CLEANER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X12 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X16 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,AIR CLANER DUCT | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR CLEANER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,AIR CLEANER CAP | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,AIR FILTER,F.BK | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
