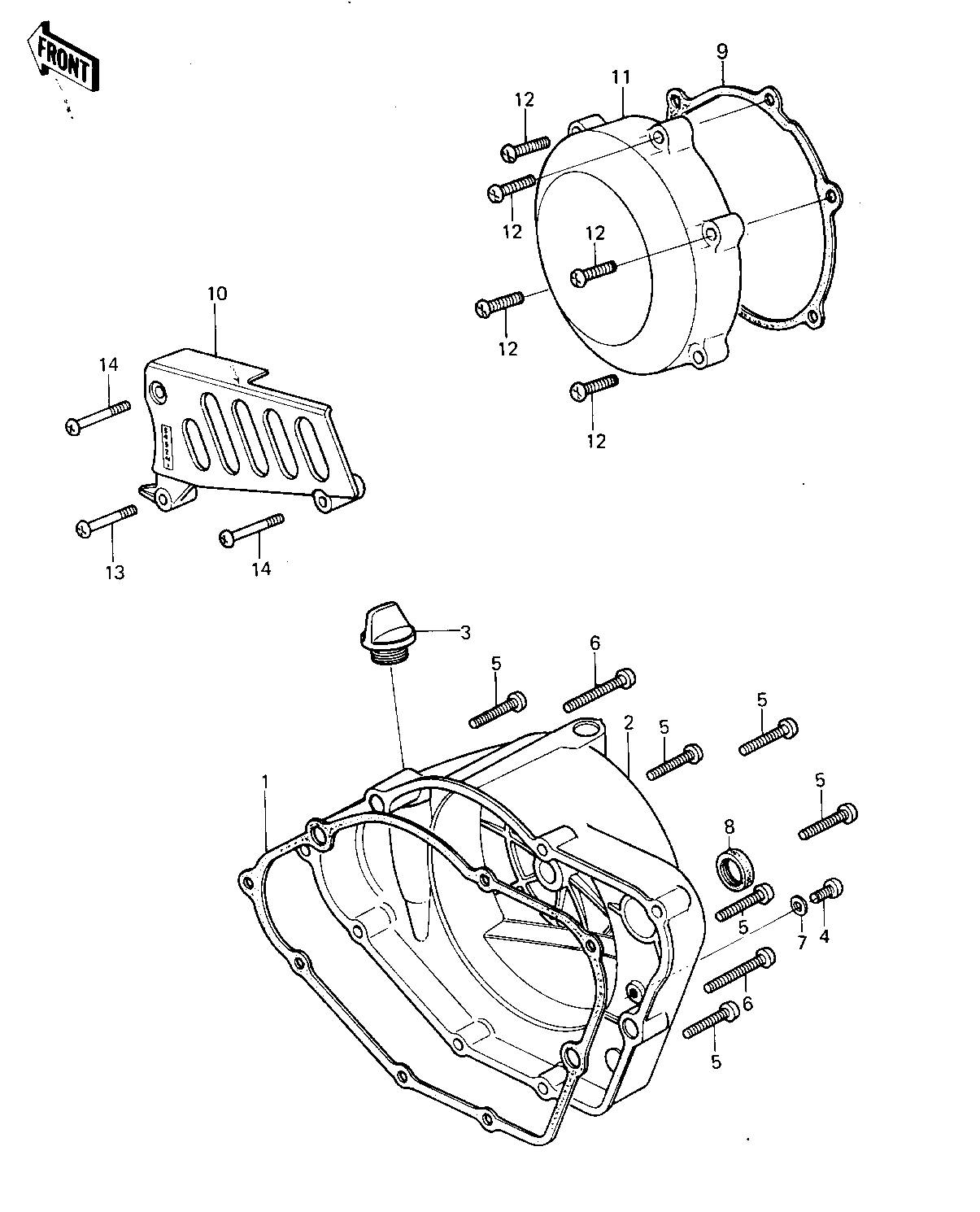

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,R.H ENGIN CVER | 1 | 11009-1040 | 1 | ||
| COVER,RH,ENGINE,F.BLK | 2 | 14032-1034 | 1 | ||
| FILLER,OIL | 3 | 16115-018 | 1 | ||
| SCREW PAN HEAD 6X8 | 4 | 220B0608 | 1 | ||
| SCREW PAN HEAD 6X28 | 5 | 220B0628 | 6 | ||
| SCREW PAN HEAD 6X40 | 6 | 220B0640 | 2 | ||
| WASHER OIL PUMP BANJO | 7 | 92022-077 | 1 | ||
| OIL SEAL SB16244 | 8 | 92049-002 | 1 | ||
| GASKET,LH,ENGINE COVR | 9 | 11009-1177 | 1 | ||
| COVER,FRONT CHAIN | 10 | 14026-1012-21 | 1 | ||
| COVER,LH.ENGINE,F.BLK | 11 | 14031-1048 | 1 | ||
| SCREW PAN HEAD 6X30 | 12 | 220B0630 | 5 | ||
| SCREW PAN HEAD 6X35 | 13 | 220B0635 | 1 | ||
| SCREW PAN HEAD 6X40 | 14 | 220B0640 | 2 |
