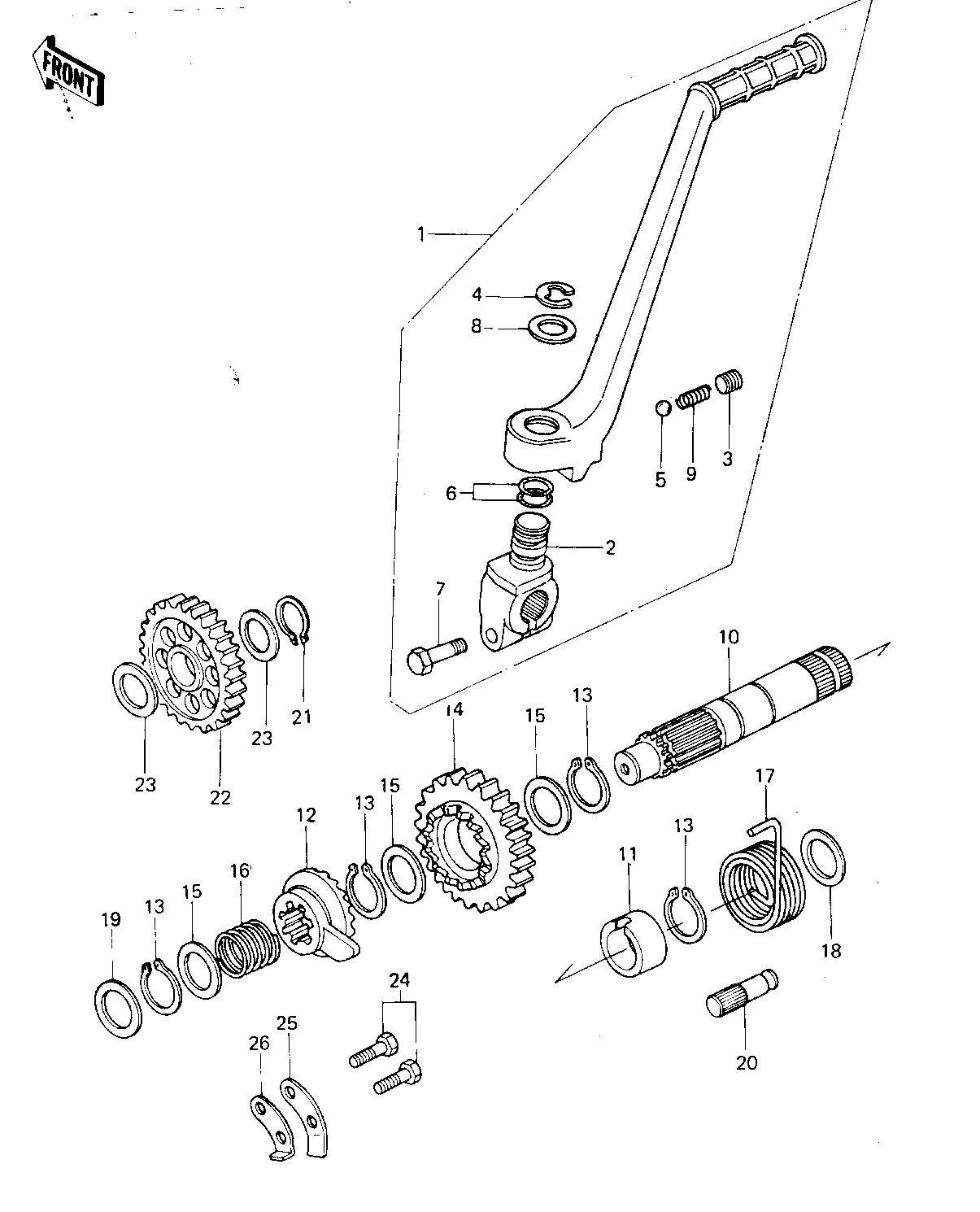

1980 KX125 - KICKSTARTER MECHANISM ('80 A6)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER-ASSY-KICK PEDAL | 1 | 13064-5005 | 1 | ||
BOSS,KICK PEDAL | 2 | 13061-5001 | 1 | ||
SCREW,8X8 | 3 | 290Q0808 | 1 | ||
CIR CLIP | 4 | 482K0100 | 1 | ||
BALL STEEL 1/4' | 5 | 600A0800 | 1 | ||
"O" RING,12MM | 6 | 670B2012 | 2 | ||
BOLT,HEX HEAD,8X28 | 7 | 92001-1042 | 1 | ||
WASHER,PLAIN | 8 | 92022-1019 | 1 | ||
SPRING KICK PEDAL | 9 | 92081-020 | 1 | ||
SHAFT,KICKSTARTER | 10 | 13066-1005 | 1 | ||
GUIDE,KICKSPRING | 11 | 13070-008 | 1 | ||
RATCHET,KL250-D2 | 12 | 13078-1052 | 1 | ||
CIRCLIP 16MM | 13 | 480J1600 | 4 | ||
GEAR,KICKSTARTER | 14 | 59051-1008 | 1 | ||
WASHER,PLAIN | 15 | 92022-315 | 3 | ||
SPRING,RATCHET | 16 | 92081-122 | 1 | ||
SPRING,KICKSTARTER | 17 | 92082-005 | 1 | ||
WASHER,PLAIN | 18 | 92022-268 | 1 | ||
WASHER,PLAIN | 19 | 92022-269 | 1 | ||
PIN | 20 | 92043-102 | 1 | ||
CIRCLIP 15MM | 21 | 480J1500 | 1 | ||
IDLE GEAR,KICKSTARTER | 22 | 59051-1009 | 1 | ||
WASHER,PLAIN | 23 | 92022-1045 | 2 | ||
BOLT,6X18 | 24 | 110G0618 | 2 | ||
GUIDE-KICK | 25 | 13206-1059 | 1 | ||
STOPPER,KICKSTARTER | 26 | 32085-1016 | 1 |
