Parts Diagrams |

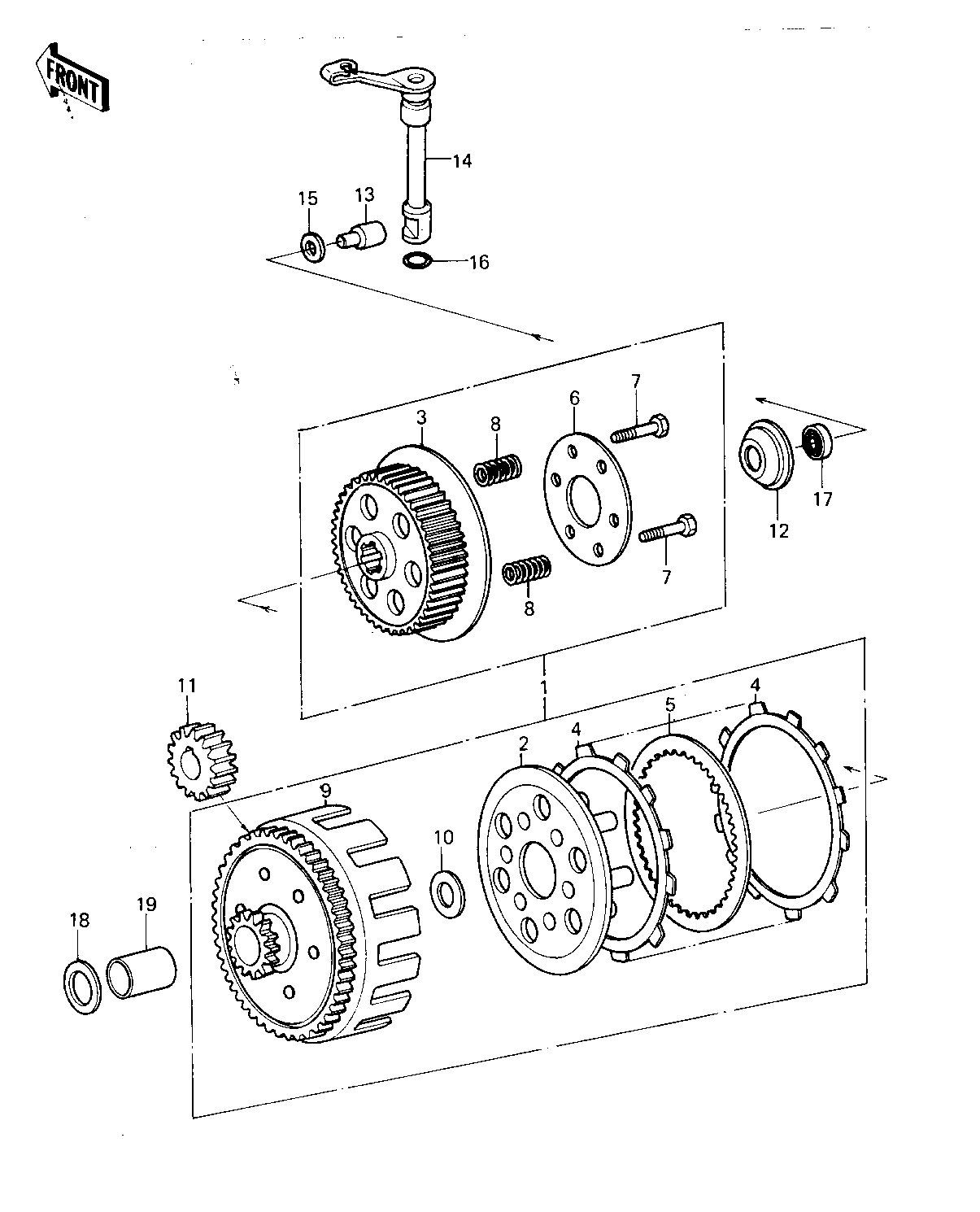

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLUTCH-ASSY | 1 | 13081-1060 | 1 | ||
| WHEEL,CLUTCH | 2 | 13086-1001 | 1 | ||
| HUB,CLUTCH | 3 | 13087-1002 | 1 | ||
| PLATE-FRICTION | 4 | 13088-1015 | 6 | ||
| PLATE CLUTCH STEEL | 5 | 13089-003 | 5 | ||
| HOLDER,CLUTCH | 6 | 13091-015 | 1 | ||
| BOLT,HEX HEAD,5X18 | 7 | 110G0518A | 6 | ||
| SPRING,CLUTCH | 8 | 92081-123 | 6 | ||
| HOUSING,CLUTCH | 9 | 13095-1028 | 1 | ||
| WASHER,PLAIN | 10 | 92022-270 | 1 | ||
| GEAR,PRIMARY,20T | 11 | 13097-1032 | 1 | ||
| HOLDER,CLUTCH PUSHER | 12 | 13091-1071 | 1 | ||
| PUSHER,CLUTCH | 13 | 13114-1004 | 1 | ||
| LEVER ASSY,CLUTCH RLS | 14 | 13236-1022 | 1 | ||
| WASHER PLAIN 6MM | 15 | 411B0600 | 1 | ||
| "0" RING, 10MM | 16 | 670B2010 | 1 | ||
| BEARING-BALL | 17 | 92045-1211 | 1 | ||
| WASHER,PLAIN | 18 | 92022-270 | 1 | ||
| BUSHING,CLUTCH | 19 | 92028-1018 | 1 |
