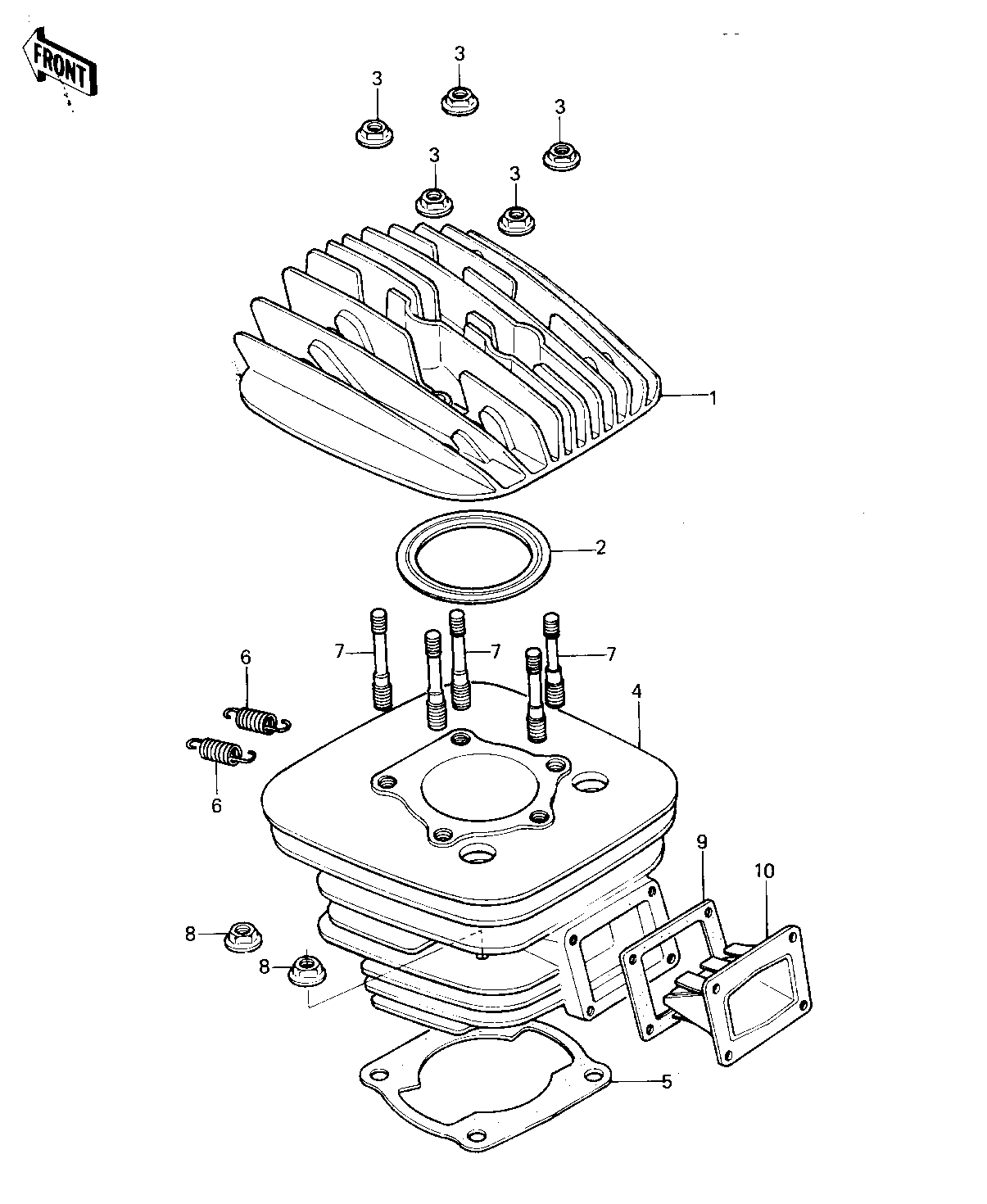

1980 KX125 - CYLINDER HEAD/CYLINDER/REED VALVE ('80 A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HEAD-CYLINDER | 1 | 11001-1055 | 1 | ||
| GASKET,CYLINDER HEAD | 2 | 11004-1023 | 1 | ||
| NUT,8M/M | 3 | 92015-1014 | 5 | ||
| CYLINDER,ELECTRO-FUSE | 4 | 11005-1067 | 1 | ||
| GASKET,CYLINDER BASE | 5 | 11009-1175 | 1 | ||
| SPRING-CONNECTOR | 6 | 18071-003 | 2 | ||
| STUD,CYLINDER | 7 | 92004-1026 | 5 | ||
| NUT,8M/M | 8 | 92015-1014 | 4 | ||
| GASKET,REED VALVE | 9 | 11009-1018 | 1 | ||
| VALVE ASSY,REED | 10 | 12021-1007 | 1 |
