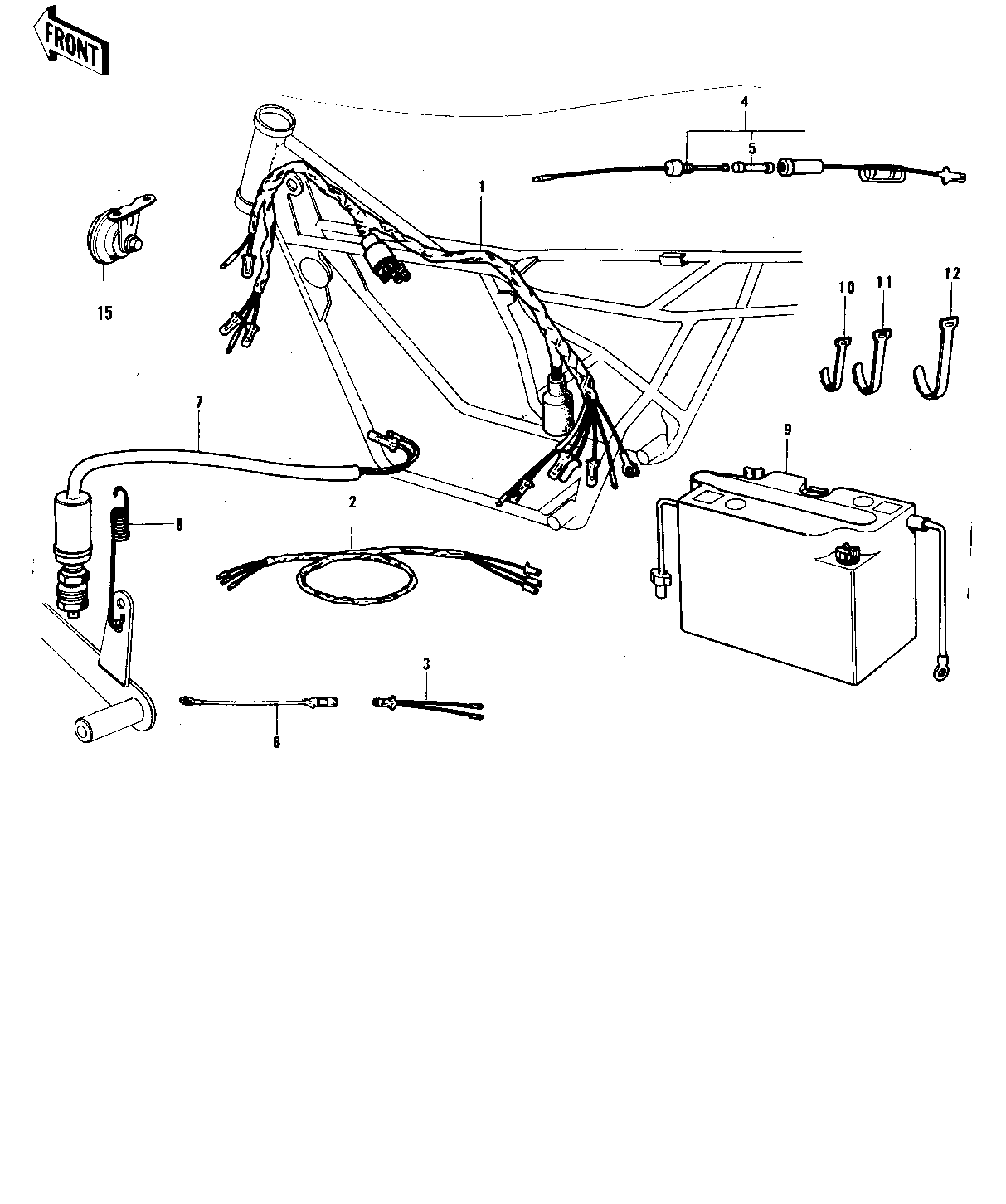

1972 F9 - CHASSIS ELECTRICAL EQUIPMENT ('74-'75 F9
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WIRING HARNESS,MAIN | 1 | 26001-091 | 1 | ||
| WIRING HARNESS-REAR | 2 | 26002-029 | 1 | ||
| LEAD WIRE | 3 | 26011-042 | 1 | ||
| FUES ASSY | 4 | 26004-008 | 1 | ||
| FUSE ASSY | 4 | 26004-017 | 1 | F9C | |
| FUSE 10A | 5 | 26006-003 | 2 | ||
| WIRE,LEAD | 6 | 26011-093 | 1 | ||
| SWITCH-BRAKE LAMP | 7 | 27010-018 | 1 | ||
| SPRING BRAKE LAMP SW | 8 | 27011-004 | 1 | ||
| YUA BAT 6N4B-2A-3 | 9 | 26012-035 | 1 | ||
| BAND,SHORT | 10 | 92072-030 | 7 | ||
| BAND,MIDDLE | 11 | 92072-031 | 3 | ||
| BAND,LONG | 12 | 92072-032 | 2 | ||
| BAND,WIRING HARNESS | 13 | 92072-056 | 1 | F9C L=186M/M | |
| HOLDER,SPARE FUSE | 14 | 26016-003 | 1 | F9C | |
| HORN | 15 | 27003-057 | 1 | ||
| HORN | 15 | 27003-057 | AL |
| WIRING HARNESS,MAIN | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS-REAR | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEAD WIRE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUES ASSY | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE ASSY | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F9C |
| FUSE 10A | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WIRE,LEAD | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH-BRAKE LAMP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING BRAKE LAMP SW | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| YUA BAT 6N4B-2A-3 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,SHORT | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| BAND,MIDDLE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BAND,LONG | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,WIRING HARNESS | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F9C L=186M/M |
| HOLDER,SPARE FUSE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F9C |
| HORN | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HORN | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | AL |
| DESTINATION | |
| REMARKS | |
