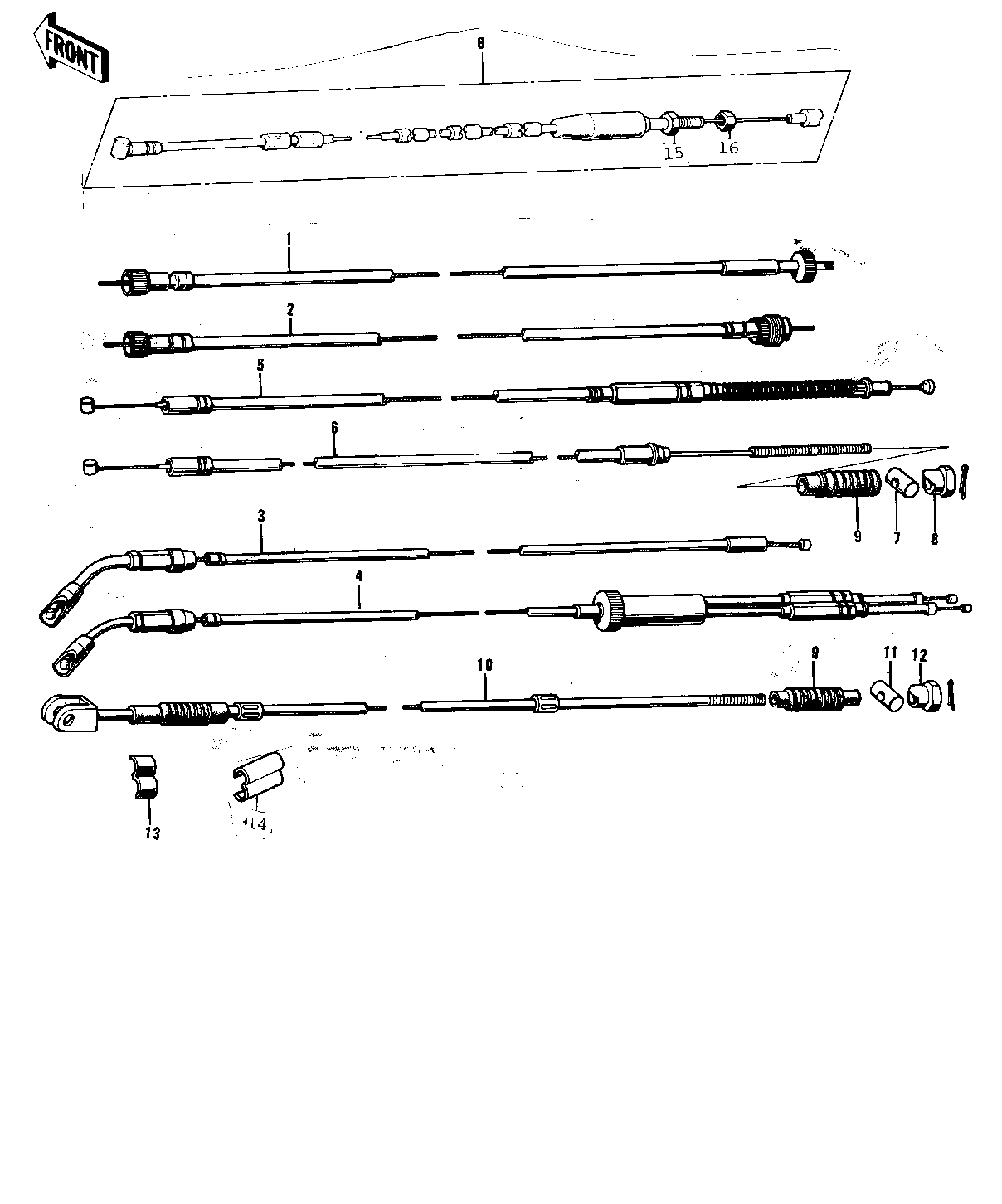

1972 F9 - CABLES ('74-'75 F9-B/F9-C 350)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CABLE,SPEEDOMETER | 1 | 54001-050 | 1 | ||
| CABLE-TACHOMETER | 2 | 54018-013 | 1 | ||
| CABLE,STARTER | 3 | 54017-061 | 1 | ||
| CABLE,COMBINATION | 4 | 54012-098 | 1 | ||
| CABLE-CLUTCH | 5 | 54011-045 | 1 | ||
| CABLE,FRONT BRAKE | 6~9 | 54005-081 | 1 | ||
| JOINT-BRAKE ROD | 7 | 92043-082 | 1 | ||
| NUT-BRAKE ROD ADJUST | 8 | 92015-052 | 1 | ||
| DUST COVER-BRKE CABL | 9 | 54009-008 | 2 | ||
| CABLE-REAR BRAKE | 9~12 | 54022-016 | 1 | ||
| PIN BRAKE ROD | 11 | 92043-053 | 1 | ||
| NUT-BRAKE CABLE ADJS | 12 | 92015-041 | 1 | ||
| CLAMP-CABLE | 13 | 92037-069 | 1 | ||
| CLAMP-CABLE | 14 | 92037-069 | 1 | F9C | |
| ADJUSTER,BRAKE CABLE | 15 | 54016-002 | 1 | F9C | |
| NUT,BRAKE CABLE LOCK | 16 | 54015-002 | 1 | F9C |
