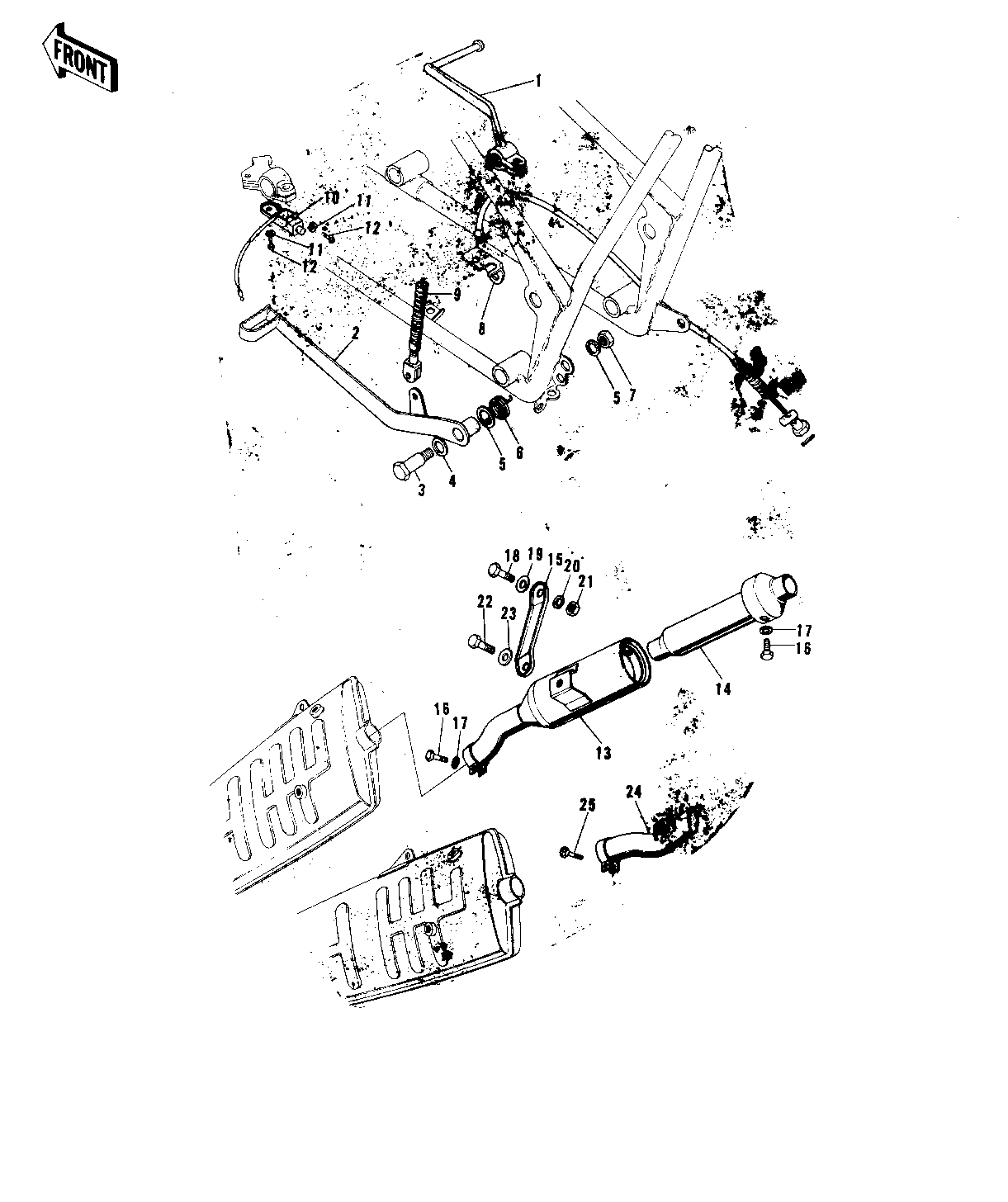

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PEDAL GR CHG RH OPT | 1 | 13156-037 | 1 | ||
| PEDAL-BRAKE (OPT) | 2 | 43001-040 | 1 | ||
| BOLT-BRAKE PEDAL | 3 | 92001-092 | 1 | ||
| WASHER BRAKE PEDAL | 4 | 92022-085 | 1 | ||
| WASHER PLAIN 10MM | 5 | 411B1000 | 2 | ||
| SPRING-BRAKE PEDAL | 6 | 43005-014 | 1 | ||
| NUT, 10MM | 7 | 315B1000 | 1 | ||
| BRACKET-REAR BRAKE CABLE | 8 | 32087-012 | 1 | ||
| CABLE-REAR BRAKE | 9 | 54022-019 | 1 | ||
| SWITCH ASSY-ENG STOP | 10~12 | 46027-006 | 1 | ||
| WASHER SPRING 3MM | 11 | 461F0300 | 2 | ||
| SCREW-PAN-HEAD 3X6 | 12 | 220B0306 | 2 | ||
| TAIL PIECE | 13 | 18048-013 | 1 | ||
| SPARK ARRESTER COMP | 14 | 18033-044 | 1 | ||
| BRACKET-MUFFLER | 15 | 18024-016 | 1 | ||
| BOLT,6X10 | 16 | 112G0610 | 2 | ||
| BOLT,6X10 | 16 | 112G0610 | AL | ||
| WASHER LOCK 6MM | 17 | 464H0600 | 2 | ||
| BOLT-HEX HEAD,10X35 | 18 | 110B1035 | 1 | ||
| WASHER PLAIN 10MM | 19 | 410B1000 | 1 | ||
| WASHER SPRING 10MM | 20 | 461F1000 | 1 | ||
| NUT 10MM | 21 | 312B1000 | 1 | ||
| BOLT-SMALL-UPSET,8X1 | 22 | 115B0814 | 1 | ||
| WASHER SPRING 8MM | 23 | 461F0800 | 1 | ||
| TAIL PIECE | 24 | 18048-016 | 1 | ||
| SCREW PAN HEAD 6X20 | 25 | 220B0620 | 1 |
