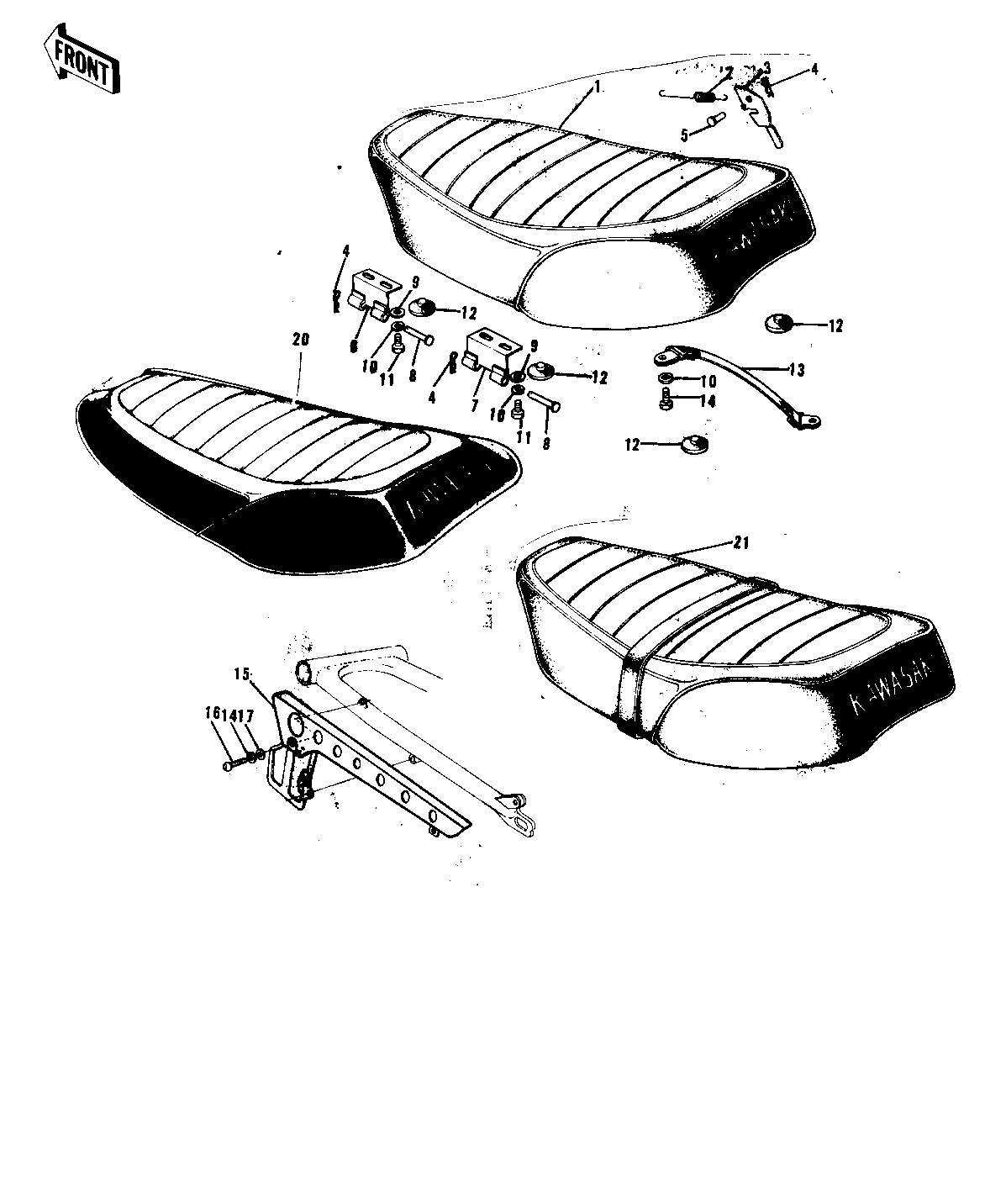

1972 F9 - SEAT/CHAIN COVER ('72-'73 F9/F9-A 350)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEAT ASSY,DUAL | 9~12 | 53002-041 | 1 | F9A | |
| SPRING,HOOK | 2 | 53012-013 | 1 | ||
| HOOK | 3 | 53008-008 | 1 | ||
| COTTER PIN | 4 | 92041-003 | 3 | ||
| PIN DUAL SEAT PIVOT | 5 | 53011-001 | 1 | ||
| HINGE | 6 | 53009-015 | 1 | ||
| HINGE | 7 | 53009-016 | 1 | ||
| PIN | 8 | 53011-002 | 2 | ||
| WASHER PLAIN 6MM | 9 | 411B0600 | 4 | ||
| WASHER SPRING 6MM | 10 | 461F0600 | 6 | ||
| BOLT-UPSET 6X14 | 11 | 112B0614 | 4 | ||
| BOLT-UPSET 6X14 | 11 | 112B0614 | AL | ||
| DAMPER RUBB DUAL SEA | 12 | 92075-023 | 6 | ||
| BAND-SEAT STOPPER | 13 | 92072-038 | 1 | ||
| BOLT,6X10 | 14 | 112G0610 | 1 | ||
| BOLT,6X10 | 14 | 112G0610 | AL | ||
| CASE-CHAIN | 15 | 36014-030-21 | 1 | ||
| SCREW PAN HEAD 6X14 | 16 | 220B0614 | 1 | ||
| WASHER 6.5X20X1.6T | 17 | 92022-125 | 1 | ||
| COVER-DUAL SEAT | 20 | 53003-003 | 1 | ||
| DUAL SEAT ASSY. | 9~12 | 53002-020 | 1 | ||
| UNAVAILABLE IN PRICE BOOK | 21 | 53002-044 | 1 | F9A |
| SEAT ASSY,DUAL | |
| REF # | 9~12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F9A |
| SPRING,HOOK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COTTER PIN | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIN DUAL SEAT PIVOT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HINGE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HINGE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET 6X14 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET 6X14 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | AL |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBB DUAL SEA | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BAND-SEAT STOPPER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | AL |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-DUAL SEAT | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUAL SEAT ASSY. | |
| REF # | 9~12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | F9A |
