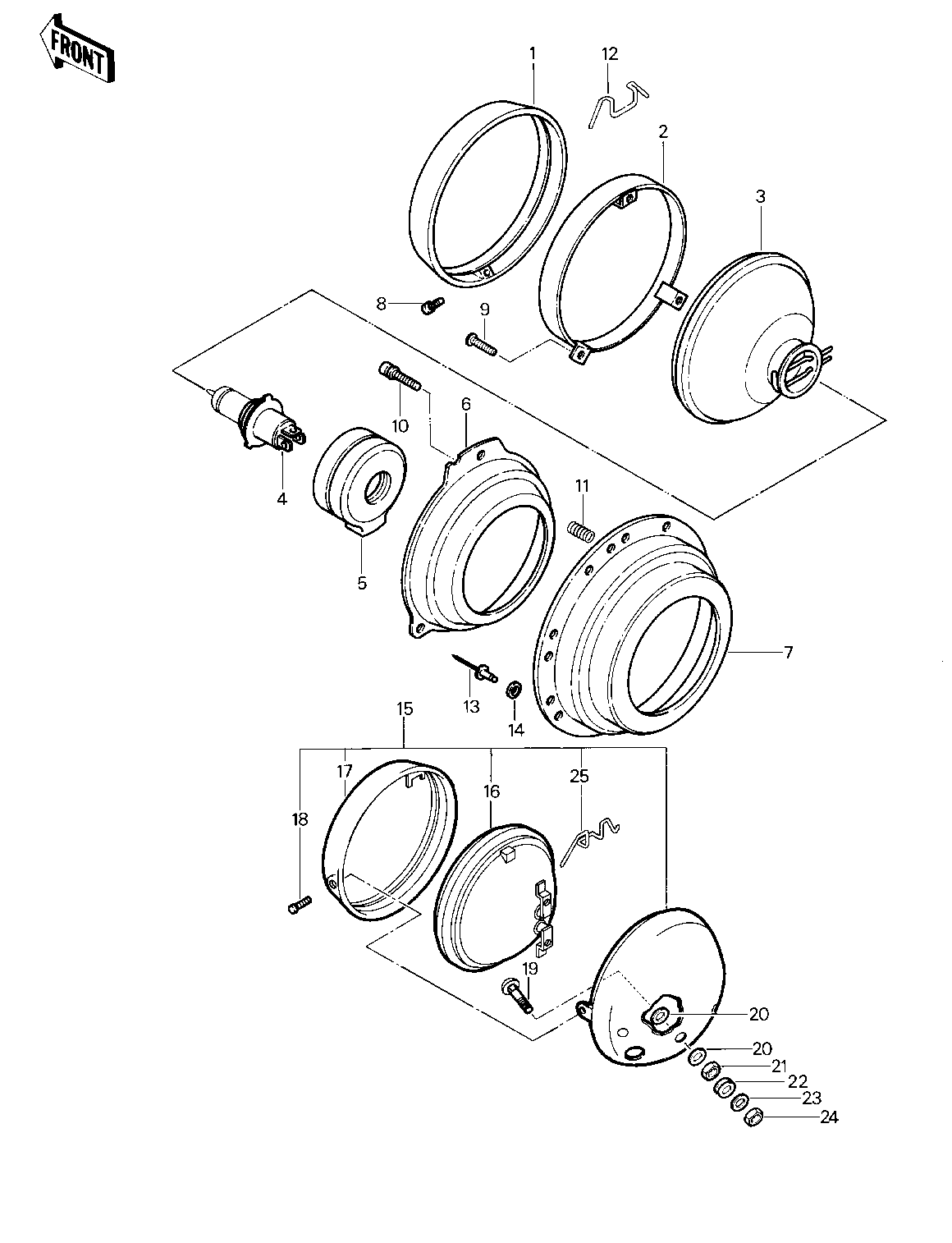

1982 Police 1000 - HEADLIGHT/PURSUIT LIGHT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RIM,HEAD LAMP | 1 | 23006-4002 | 1 | ||
| RETAINER | 2 | 14020-4002 | 1 | ||
| LENS UNIT,HEAD LAMP | 3 | 23007-1009 | 1 | ||
| BULB,12V-60/55W | 4 | 92069-1002 | 1 | HALOGEN | |
| DUST COVER | 5 | 49016-1016 | 1 | ||
| HOLDER | 6 | 13091-4007 | 1 | ||
| BODY HEAD LIGHT | 7 | 23005-4003 | 1 | ||
| SCREW PAN HEAD 4X14 | 8 | 92009-4009 | 1 | ||
| SCREW PAN HEAD | 9 | 92009-4007 | 3 | ||
| SCREW FOCUS ADJUSTING | 10 | 92009-4008 | 2 | ||
| SPRING | 11 | 92081-4014 | 1 | ||
| SPRING CLIP | 12 | 92081-4015 | 1 | ||
| RIVET | 13 | 534YW0608 | 4 | ||
| WASHER | 14 | 92022-3539 | 4 | ||
| LAMP ASSY PURSUIT | 15 | 23016-4004 | 2 | ||
| SEAL BEAM,PRSUT,RED | 16 | 23007-1001 | 2 | STD | |
| SEAL BEAM,PRSUT,BLUE | 16 | 23007-1002 | (2 | ||
| SEAL BEAM,PRSUT,AMBER | 16 | 23007-1003 | (2 | ||
| RIM,PURSUIT LAMP | 17 | 23006-4004 | 2 | ||
| SCREW-4X8,LAMP RIM | 18 | 92009-4011 | 2 | ||
| BOLT,PURSUIT LIGHT | 19 | 92001-4015 | 4 | ||
| WASHER PLAIN 8MM | 20 | 411B0800 | 8 | ||
| NUT 6MM | 21 | 312B0600 | 4 | ||
| GROMMET | 22 | 92071-056 | 4 | ||
| WASHER 6.5X20X1.6T | 23 | 92022-125 | 4 | ||
| NUT | 24 | 92019-008 | 4 | ||
| RETAINER,CLIP | 25 | 14020-1096 | 6 |
